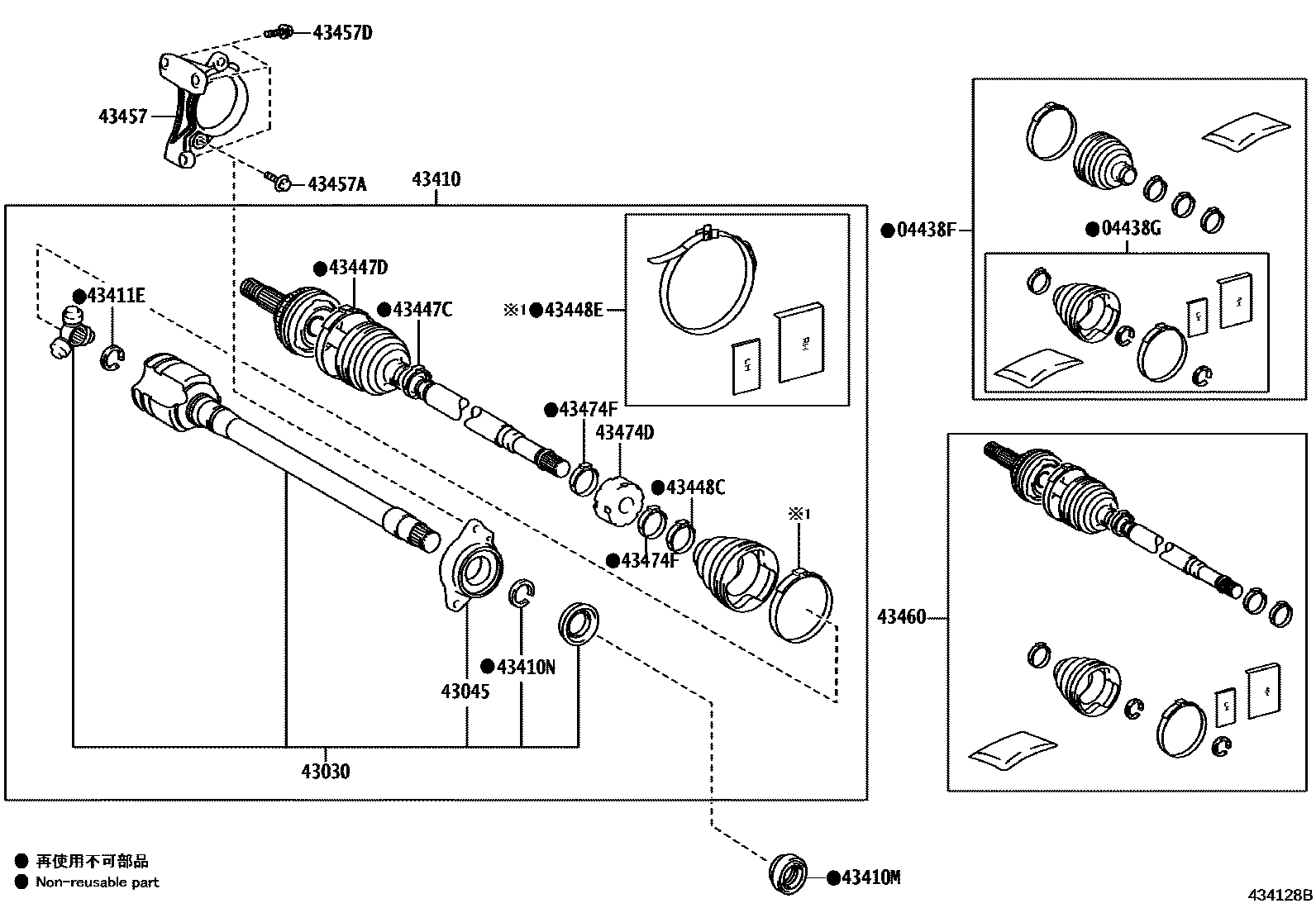

FRONT DRIVE SHAFT
04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH
04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH
43030JOINT ASSY, FRONT DRIVE INBOARD, RH
43045CASE SUB ASSY, DRIVE SHAFT BEARING
43410SHAFT ASSY, FRONT DRIVE, RH
43410MOIL SEAL, FRONT DRIVE SHAFT, RH
(J)
(L)
43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)
(J)
(L)
43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)
(J)
(L)
43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)
(L)
(J)
43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
43457BRACKET, DRIVE SHAFT BEARING
43457ABOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)
*10-1.25PX22-19.5
43457DBOLT(FOR DRIVE SHAFT BEARRING BRACKET SETTING NO.2)
43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH
43474DDAMPER, FRONT DRIVE SHAFT, RH
43474FCLAMP (FOR FRONT DRIVE SHAFT DAMPER RH)
(L)
(J)
18 parts on this diagram · 2 diagrams in section
