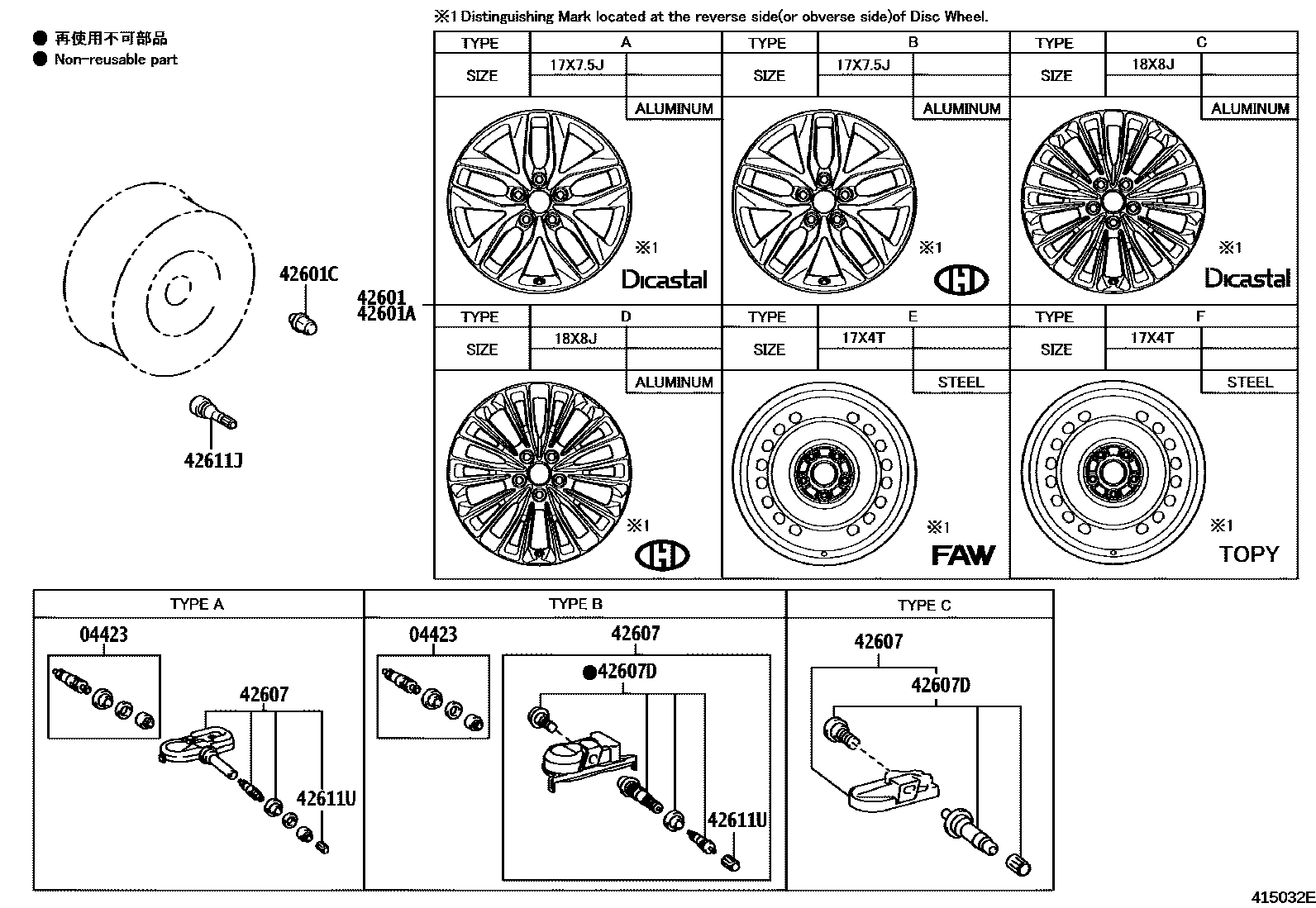

DISC WHEEL & WHEEL CAP
04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE
42601WHEEL, DISC
17X7.5J,TIRE & DISC WHEEL-215/55R17, 7.5J, ALUMINUM, SUMMER TIRE,TYPE A:REFER ILLUST.
17X7.5J,TYPE A:REFER ILLUST.
17X7.5J,TIRE & DISC WHEEL-215/55R17 7.5J ALUMINUM SUMMER TIRE,TYPE A:REFER ILLUST.
17X7.5J,TIRE & DISC WHEEL-215/55R17,7.5J,ALUMINUM,SUMMER TIRE,TYPE A:REFER ILLUST.
17X7.5J,TYPE B:REFER ILLUST.
17X7.5J,TIRE & DISC WHEEL-215/55R17,7.5J,ALUMINUM,SUMMER TIRE,TYPE B:REFER ILLUST.
17X7.5J,TIRE & DISC WHEEL-215/55R17 7.5J ALUMINUM SUMMER TIRE,TYPE B:REFER ILLUST.
17X7.5J,TIRE & DISC WHEEL-215/55R17, 7.5J, ALUMINUM, SUMMER TIRE,TYPE B:REFER ILLUST.
18X8J,TYPE C:REFER ILLUST.
18X8J,TYPE D:REFER ILLUST.
17X7.5J,#,TYPE K:REFER ILLUST.
17X7.5J,#,TYPE L:REFER ILLUST.
18X8J,#,TYPE H:REFER ILLUST.
18X8J,#,TYPE M:REFER ILLUST.
18X8J, #,TYPE C:REFER ILLUST.
18X8J, #,TYPE D:REFER ILLUST.
18X8J, #,TYPE G:REFER ILLUST.
18X8J, #,TYPE H:REFER ILLUST.
19X8J, #,TYPE N:REFER ILLUST.
19X8J, #,TYPE P:REFER ILLUST.
42601AWHEEL, DISC (FOR SPARE)
17X4T,TYPE F:REFER ILLUST.
17X4T,TYPE E:REFER ILLUST.
42601CNUT, HUB (FOR AXLE)
(J)
(L)
42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR
TYPE C:REFER ILLUST.
TYPE B:REFER ILLUST.
TYPE A:REFER ILLUST.
42607DVALVE, TIRE PRESSURE MONITOR
42611JVALVE (FOR TUBELESS TIRE SPARE)
(J)
(L)
42611UCAP, TIRE VALVE
8 parts on this diagram · 4 diagrams in section
