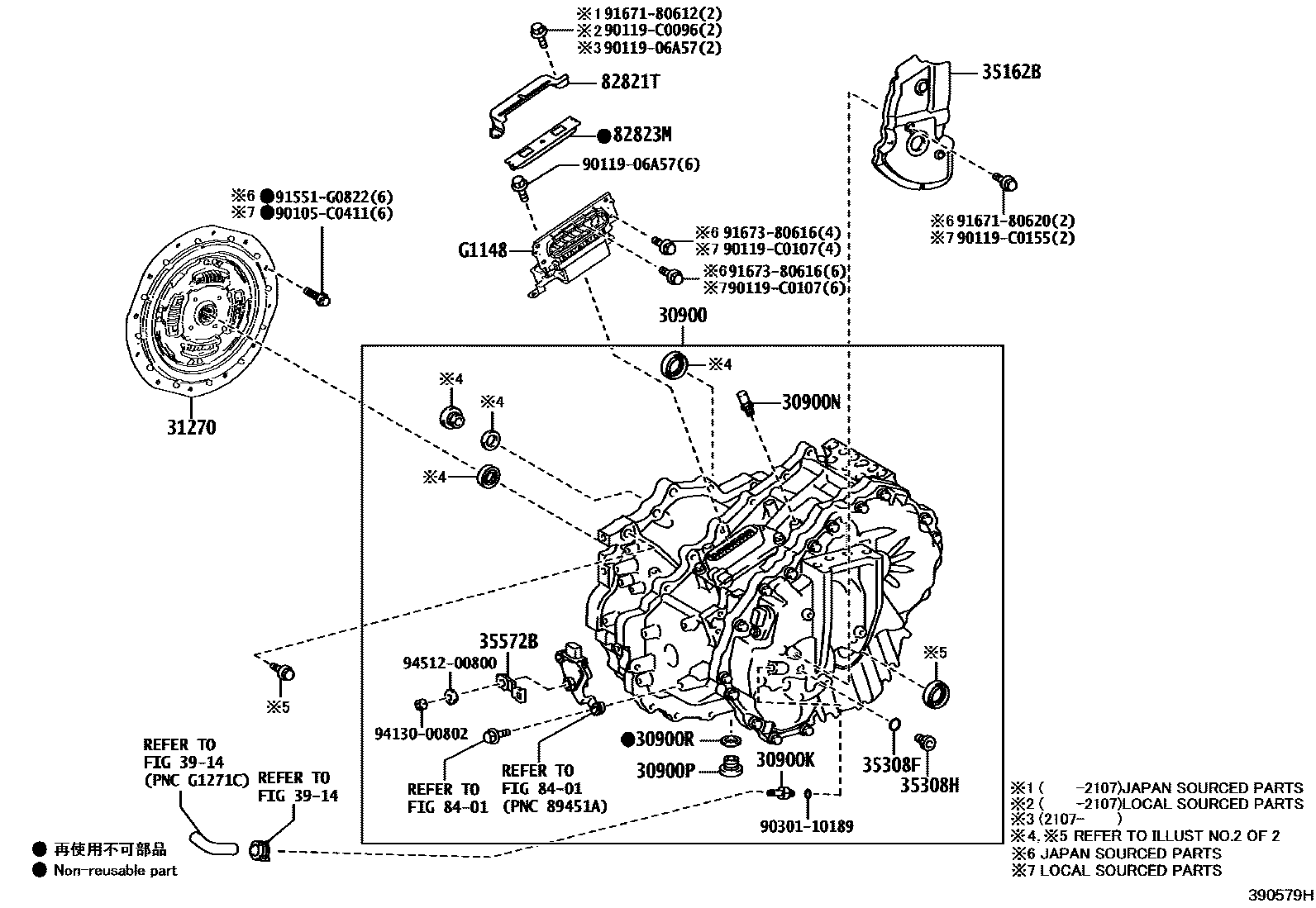

TRANSAXLE ASSY(HEV OR BEV OR FCEV)

0001 1 0002 1 0003 1

30900TRANSAXLE ASSY, HYBRID VEHICLE

main30900-06010iAXXH50202006-202206

(L)

sub30900-06011

main30900-06011iAXXH50202207-202408

(L)

sub30900-06012

main30900-06012iAXXH50202409

(L)

main30900-06030iMXXH50202407-202409

sub30900-06031

main30900-06031iMXXH50202410

main30900-06040iAXXH52202407-202409

sub30900-06041

main30900-06041iAXXH52202410

main30900-33120iAXXH50201903-202303

(J)

30900KCONNECTOR, TUBE(FOR TRANSAXLE HOUSING)

main90404-13010iAXXH50..E¥310201903-202303

30900NPLUG, BREATHER(FOR TRANSAXLE)

main90930-03201iAXXH50..E¥120201903-202303

30900PPLUG, DRAIN(HEV)

main90341-18016iAXXH50¥190201903-202303

30900RGASKET, DRAIN PLUG(HEV)

main90430-18008iAXXH50¥110201903-202303

main90430-18008iAXXH50¥110202304

(J)

main90430-C0007iAXXH50202308

(L)

31270DAMPER ASSY, TRANSMISSION INPUT

main31270-06020iAXXH52202412

main31270-06030iAXXH52202407-202412

main31270-0A010iMXXH50202407

main31270-0R030iAXXH50202209-202303

(L)

main31270-33030iAXXH50..B,G,Q¥33,100201903-202209

main31270-33030iAXXH50¥33,100202209-202303

(J)

35162BPROTECTOR, TRANSAXLE CASE

main35162-33020iAXXH50..B,G,Q201903-202303

35308FRING, O, NO.1 (FOR TRANSMISSION OIL PUMP COVER)

main90301-06196iAXXH50..B,G,Q¥170201903-202207

(J)

main90301-C0061iAXXH50202006-202303

(L)

35308HPLUG (FOR TRANSMISSION OIL PUMP COVER)

main90341-08001iAXXH50¥120201903-202303

35572BLEVER, TRANSMISSION, OUTER

main35572-33070iAXXH50¥620201903-202303

3914

82821TCOVER, CONNECTOR

main82821-47240iAXXH50¥1,740201903-202303

82823MCAP, TERMINAL

main82823-02050iAXXH52,MXXH50202407

main82823-47040iAXXH50¥700201903-202303

8401

G1148CABLE, MOTOR

mainG11480A010iAXXH52,MXXH50202407-202409

subG1148-0A011

mainG11480A011iAXXH52,MXXH50202410

mainG114833050iAXXH50201903-202303

90105C0411

main90105-C0411

9011906A57

main90119-06A57¥60

90119C0096

main90119-C0096

90119C0107

main90119-C0107

90119C0155

main90119-C0155

9030110189

main90301-10189¥170

91551G0822

main91551-G0822¥80

9167180612

main91671-80612¥60

9167180620

main91671-80620¥60

9167380616

main91673-80616¥60

9413000802

main94130-00802¥90

9451200800

main94512-00800¥80

27 parts on this diagram · 3 diagrams in section
