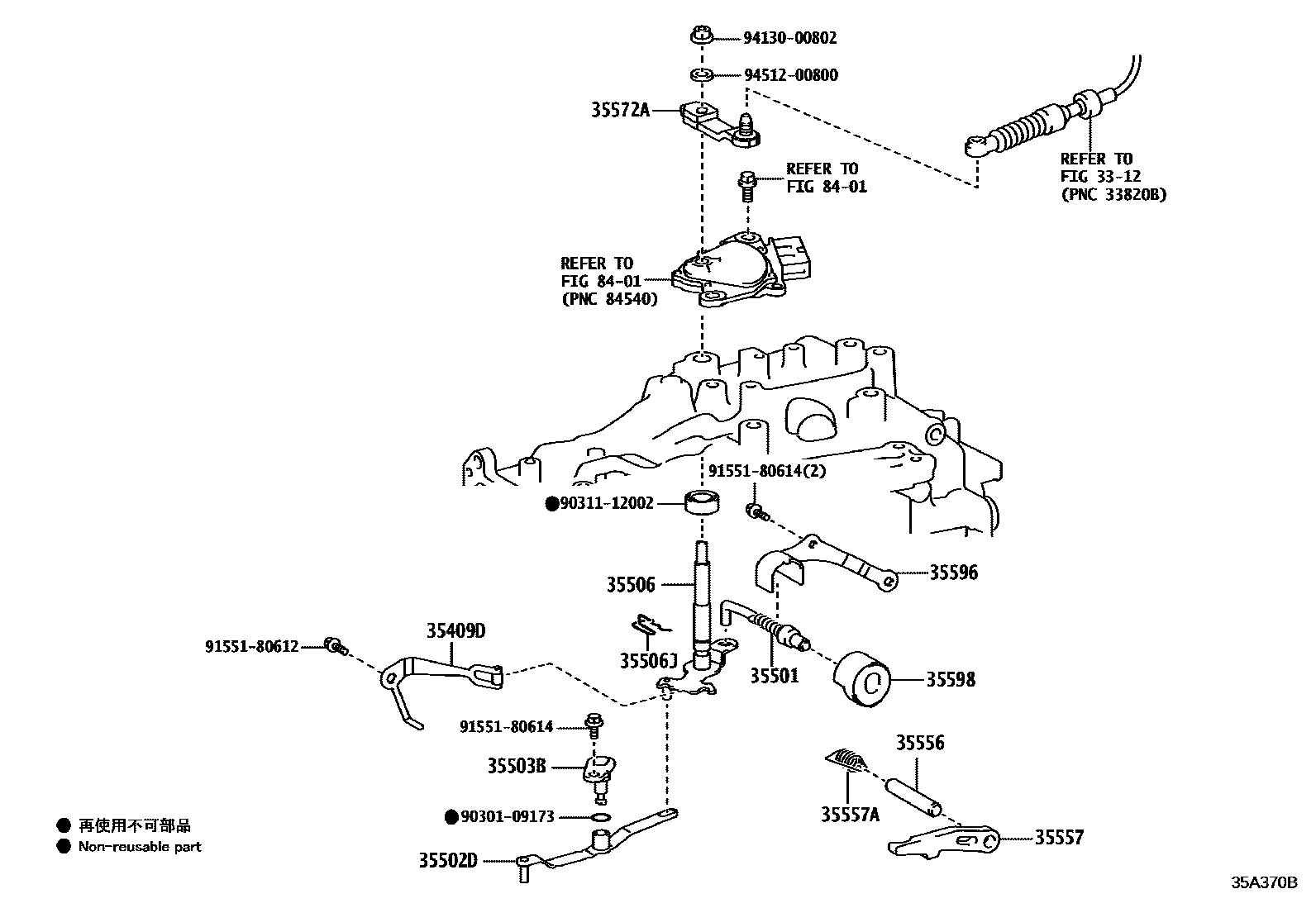

THROTTLE LINK & VALVE LEVER (ATM)

3312

35409DSPRING SUB-ASSY, MANUAL DETENT

main35409-48060iAXXA50201903-202304

35501ROD SUB-ASSY, PARKING LOCK

main35501-33030iAXXA50201903-202304

35502DLEVER SUB-ASSY, MANUAL VALVE LINK

main35502-33010iAXXA50201903-202304

35503BSHAFT SUB-ASSY, MANUAL VALVE LINK

main35503-48010iAXXA50201903-202304

35506SHAFT SUB-ASSY, MANUAL VALVE LEVER

main35506-33040iAXXA50201903-202205

main35506-33041iAXXA50..G202205-202304

35506JSPRING, RETAINER (FOR MANUAL VALVE LEVER SHAFT)

main90524-09004iAXXA50201903-202304

35556SHAFT, PARKING LOCK PAWL

main35556-48040iAXXA50201903-202304

35557PAWL, PARKING LOCK

main35557-33040iAXXA50201903-202304

35557ASPRING, TORSION (FOR PARKING LOCK PAWL)

main90508-29030iAXXA50201903-202304

35572ALEVER, TRANSMISSION CONTROL SHAFT

main35572-48050iAXXA50201903-202111

sub35572-48051

main35572-48051iAXXA50..G202111-202304

35596PLATE, PAWL STOPPER

main35596-33020iAXXA50201903-202304

35598SLEEVE, PARKING LOCK

main35598-48040iAXXA50201903-202304

8401

9030109173

main90301-09173

9031112002

main90311-12002

9155180612

main91551-80612

9155180614

main91551-80614

9413000802

main94130-00802

9451200800

main94512-00800

20 parts on this diagram · 1 diagram in section
