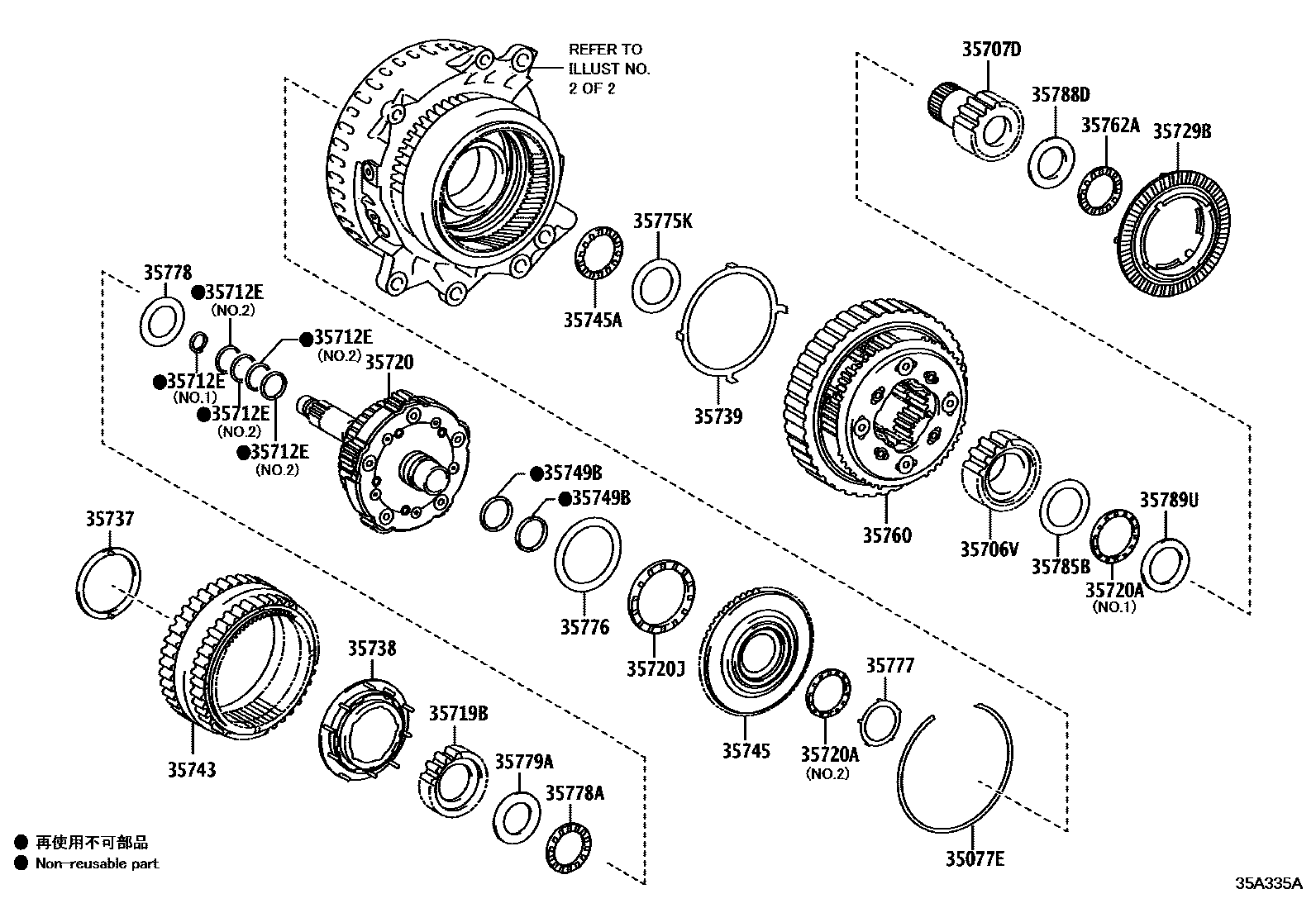

PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)
35077ERING, SNAP (FOR REAR PLANETARY RING GEAR FLANGE)
35706VGEAR SUB ASSY, PLANETARY SUN
35707DGEAR SUB-ASSY, REAR PLANETARY SUN
35712ERING, INPUT SHAFT OIL SEAL
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
35719BGEAR, PLANETARY SUN
35720GEAR ASSY, FRONT PLANETARY
35720ABEARING, THRUST NEEDLE ROLLER (FOR FRONT PLANETARY GEAR)
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
35720JBEARING, THRUST NEEDLE ROLLER(FOR PLANETARY GEAR FRONT)
35729BWASHER, PLANETARY CARRIER THRUST, NO.4
35737WASHER, PLANETARY CARRIER THRUST
35738WASHER, PLANETARY CARRIER THRUST, NO.2
35739WASHER, PLANETARY CARRIER THRUST, NO.3
35743GEAR, FRONT PLANETARY RING
35745ABRG, THRUST NEEDLE ROLLER(FOR FRONT PLNT RING GEAR FLANGE)
35749BRING, INPUT SHAFT OIL SEAL, REAR
35760GEAR ASSY, REAR PLANETARY
35762ABEARING, THRUST NEEDLE ROLLER (FOR REAR PLANETARY FLANGE)
35775KRACE, THRUST BEARING, NO.5
35776GEAR, PRIMARY REDUCTION DRIVEN
35777RACE, THRUST BEARING, NO.7
35778RACE, THRUST BEARING, NO.8
35778ABEARING, THRUST NEEDLE ROLLER
35779ARACE, THRUST BEARING, NO.9
35785BRACE, THRUST BEARING, NO.4
35788DRACE, THRUST BEARING, NO.3
35789URACE, THRUST BEARING
27 parts on this diagram · 2 diagrams in section
