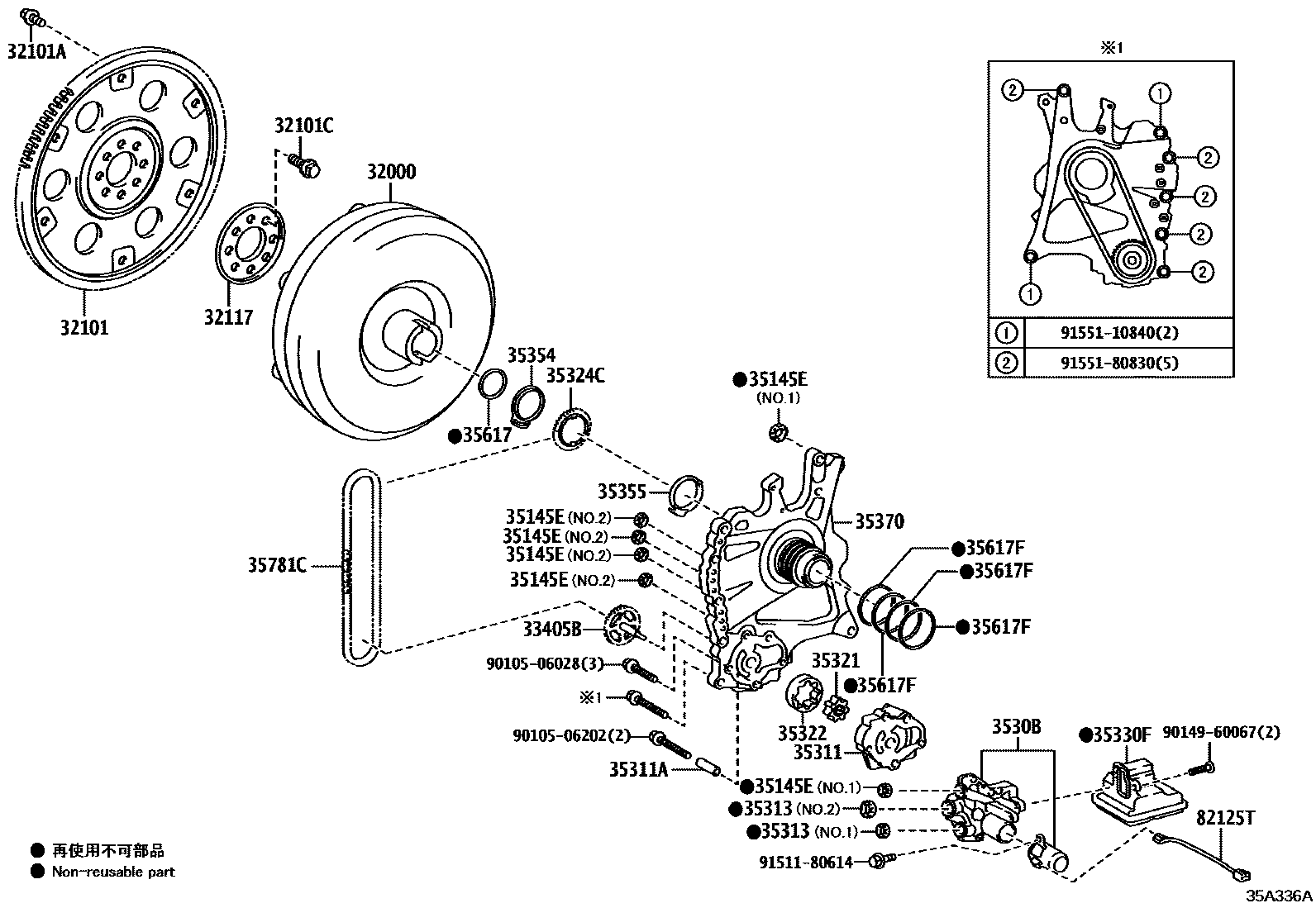

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)
32000CONVERTER ASSY, TORQUE
(L)
(J)
32101GEAR SUB-ASSY, DRIVE PLATE & RING
32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
*9-1.25PX12.4-7.3,BLACK
*9-1.25PX12.4-7.3,BLACK,(J),BLACK
*9-1.25PX12.4-7.3,(J),BLACK
*9-1.25PX12.4-8.4,SILVER WHITE
*9-1.25PX12.4-8.4,SILVER WHITE,(J),SILVER WHITE
*9-1.25PX12.4-8.4,(J),SILVER WHITE
*9-1.25PX12.4-8.4,(L),SILVER WHITE
*9-1.25PX12.4-7.3,(L),BLACK
32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)
*12-1.25PX20.3-14.3,(J)
*12-1.25PX20.3-14.3
*12-1.25PX20.3-14.3,(L)
32117SPACER, DRIVE PLATE, REAR
(L)
(J)
33405BSHAFT SUB-ASSY, OIL PUMP DRIVE
35145EGASKET, TRANSAXLE CASE
NO.1:REFER ILLUST.
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
NO.2:REFER ILLUST.
3530BCOVER SUB-ASSY, FRONT OIL PUMP & SOLENOID
35311BODY, FRONT OIL PUMP
35311APIN, RING
35313GASKET, FRONT OIL PUMP COVER
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
35321GEAR, FRONT OIL PUMP DRIVE
T=16.66
35322GEAR, FRONT OIL PUMP DRIVEN
T=16.66
35324CSPROCKET, TRANSMISSION OIL PUMP DRIVE
35330FSTRAINER ASSY, OIL
35354WASHER, OIL PUMP SPROCKET THRUST, FRONT
35355WASHER, OIL PUMP SPROCKET THRUST, REAR
35370SHAFT ASSY, STATOR
35617RING, CLUTCH DRUM OIL SEAL
35617FRING, CLUTCH DRUM OIL SEAL
35781CCHAIN, TRANSMISSION DRIVE
82125TWIRE, TRANSMISSION
9010506028
9010506202
9014960067
9151180614
9155110840
9155180830
28 parts on this diagram · 1 diagram in section
