1603

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-24010i201910-202106

*132

main22030-25010i202106-202203

*636

main22030-25020i202107-202202

*636

main22030-F0060i202304

(L)

main22030-F0070i202109-202303

(L),*633

main22030-F2030i202407

22271GASKET, THROTTLE BODY

main22271-24010i202106-202303

*633

main22271-24020i202407

(J)

main22271-25010i202304

main22271-25020i201903-202107

main22271-F0030i202107-202303

(L),*633

main22271-F2070i202407

(L)

23100XPUMP ASSY, FUEL (ENGINE ROOM SIDE)

main23101-25040i202106-202202

*636

main23101-F2020i202106-202303

*633

23191FLANGE, FUEL PUMP

main23191-25050i202106-202202

*636T/P A:REF.ILLUST

main23214-F0030i202106-202303

*633T/P A:REF.ILLUST

main23214-F2040i202106-202303

*633

main23214-F2090i202407

23224DGASKET, FUEL PUMP SPACER

main23224-25010i202106-202202

*636

main23224-25011i202110-202303

*633

23250BRING, O(FOR FUEL INJECTOR)

main90301-07037×4i202106-202303

(J),*633

main90301-A0036×4i202107-202203

(L),*636

main90301-C0072×4i202106-202303

(L),*633

23250EINJECTOR ASSY, FUEL(FOR DIRECT)

main23209-24010-01×4i201910-202106

MARK 1,*132:REFER R/M

main23209-24010-02×4i201910-202106

MARK 2,*132:REFER R/M

main23209-24010-03×4i202106-202202

MARK 3,*132:REFER R/M

main23209-24010-04×4i201910-202106

MARK 4,*132:REFER R/M

main23209-24010-05×4i201910-202106

MARK 5,*132:REFER R/M

main23209-24010-06×4i202106-202202

MARK 6,*132:REFER R/M

main23209-24010-07×4i201910-202106

MARK 7,*132:REFER R/M

main23209-24010-08×4i201910-202106

MARK 8,*132:REFER R/M

main23209-24010-09×4i202106-202202

MARK 9,*132:REFER R/M

main23209-25010-01×4i202106-202203

MARK 1,*636:REFER R/M

main23209-25010-02×4i202106-202202

MARK 2,*636:REFER R/M

main23209-25010-03×4i202106-202303

MARK 3,(J),*633:REFER R/M

main23209-25010-04×4i201903-202107

MARK 4,REFER REPAIR MANUAL

main23209-25010-05×4i202106-202303

MARK 5,(J),*633:REFER R/M

main23209-25010-06×4i201903-202106

MARK 6,REFER REPAIR MANUAL

main23209-25010-07×4i202106-202203

MARK 7,*636:REFER R/M

main23209-25010-08×4i202407

MARK 8,(J),REFER R/M

main23209-25010-09×4i202106-202303

MARK 9,(J),*633:REFER R/M

main23209-F0090-01×4i202407

MARK 1,(L),REFER R/M

main23209-F0090-02×4i202407

MARK 2,(L),REFER R/M

main23209-F0090-03×4i202106-202303

MARK 3,(L),*633:REFER R/M

main23209-F0090-04×4i202407

MARK 4,(L),REFER R/M

main23209-F0090-05×4i202407

MARK 5,(L),REFER R/M

main23209-F0090-06×4i202407

MARK 6,(L),REFER R/M

main23209-F0090-07×4i202407

MARK 7,(L),REFER R/M

main23209-F0090-08×4i202407

MARK 8,(L),REFER R/M

main23209-F0090-09×4i202304

MARK 9,(L),REFER R/M

main23209-F2030-01×4i202304

MARK 1,REFER REPAIR MANUAL

main23209-F2030-02×4i202304-202407

MARK 2,REFER REPAIR MANUAL

main23209-F2030-03×4i201910-202106

MARK 3,*609:REFER R/M

main23209-F2030-04×4i202106-202303

MARK 4,*633:REFER R/M

main23209-F2030-05×4i202304

MARK 5,REFER REPAIR MANUAL

main23209-F2030-06×4i202106-202303

MARK 6,*633:REFER R/M

main23209-F2030-07×4i201910-202106

MARK 7,*609:REFER R/M

main23209-F2030-08×4i201910-202106

MARK 8,*609:REFER R/M

main23209-F2030-09×4i202407

MARK 9,REFER REPAIR MANUAL

23250FINJECTOR ASSY, FUEL(FOR PORT)

main23209-29105×4i201903-201907

main23209-29165×4i202106-202202

*132

main23209-29175×4i202106-202301

*633

main23209-29185×4i202407

(J)

main23209-F9060×4i202304

(L)

main23209-F9100×4i202407

(L)

main23209-F9130×4i202301-202303

(L),*633

23255ASEAL, FUEL INJECTOR

main23255-25010×4i202106-202303

*633

23256RING, FUEL INJECTOR BACK-UP, NO.1

main23256-25010×4i202106-202303

*633

23258RING, FUEL INJECTOR BACK-UP, NO.3

main23258-31010×4i202304

BLACK

main23258-31030×4i202407

main23258-47010×4i201910-202106

*132

main23258-47030×4i202106-202303

*633,ORANGE

23291INSULATOR, INJECTOR VIBRATION

main23291-0V010×4i202407

main23291-28020×4i201903-202107

23291AINSULATOR, INJECTOR VIBRATION

main23291-31020×4i202304

23470LIFTER ASSY, FUEL PUMP

main23470-0Y010i202106-202303

*633

main23470-25010i201903-202107

23477GUIDE, FUEL PUMP LIFTER

main23477-25010i202106-202202

*636

main23477-F2060i202304

23695ACLAMP, NOZZLE HOLDER

main23695-24010×4i201910-202106

*132,*609

main23695-25010×4i202407

23801PPIPE SUB-ASSY, FUEL, NO.1

main23801-24070i201910-202106

*132

main23801-25030i201903-202006

sub23801-25050

main23801-25031i202106-202203

*636

main23801-F0020i202304

(L)

main23801-F2020i202304-202407

23807PIPE SUB-ASSY, FUEL DELIVERY

main23814-24020i202106-202202

*132

main23814-25021i201903-202002

main23814-25022i202106-202202

*636

main23814-25023i202211-202303

(J),*633

main23814-F0060i202304

(L)

main23814-F2030i202106-202303

*633

23807VSPACER, NO.1(FOR DELIVERY PIPE)

main23891-25010×2i201903-202106

23814BPIPE, FUEL DELIVERY

main23814-24010i202106-202210

*633

main23814-24011i202407

main23814-25010i202106-202210

*633

main23814-25011i202211-202303

*633

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-F0020i201903-202107

23841KCLAMP, FUEL PIPE

main23841-25040i202304-202407

(J)

main23841-F2020i202106-202303

(L)

23851HOLDER, FUEL PRESSURE SENSOR, NO.1

main23851-25020i202106-202202

*636

main23851-F2020i202106-202303

*633

23851AHOLDER, FUEL PRESSURE SENSOR, NO.2

main23851-25030i202106-202203

*636

main23851-F2030i201910-202106

*609

23901TUBE SUB-ASSY, FUEL

main23901-F0160supersedes 23901-F0160i202304

main23901-F0180supersedes 23901-F0180i202107-202303

main23901-F0460i202407

23910ATUBE SUB-ASSY, FUEL

main23901-24081i202106-202303

(J)

main23901-25061i202407

main23901-F2100i201910-202106

(L)

7701

8404

9010506350

main90105-06350

9010506352

main90105-06352

9010506376

main90105-06376

9010508510

main90105-08510

90105C0416

main90105-C0416

90105C0421

main90105-C0421

9030105013

main90301-05013

9030131016

main90301-31016

9052014004

main90520-14004

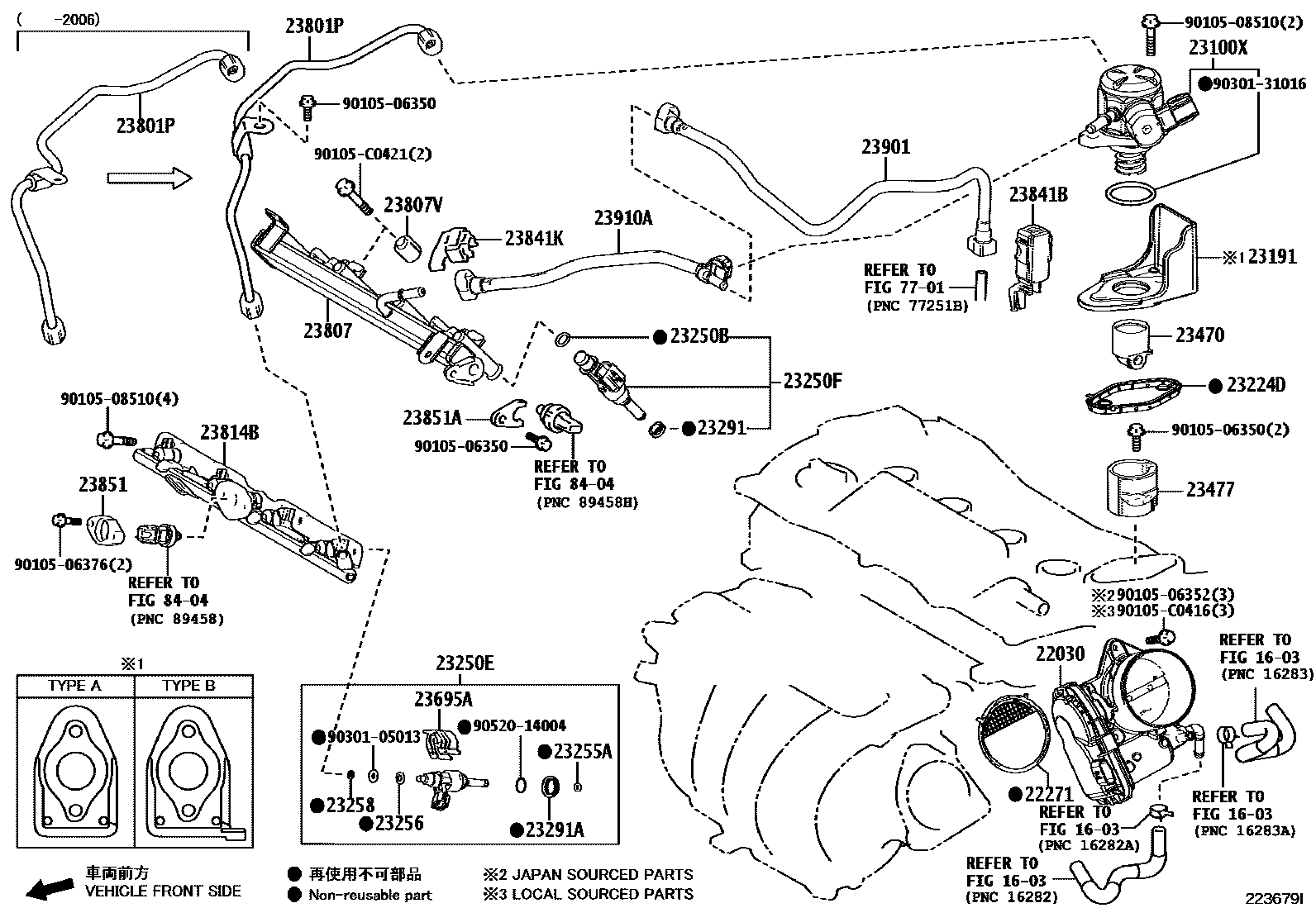

FUEL INJECTION SYSTEM
