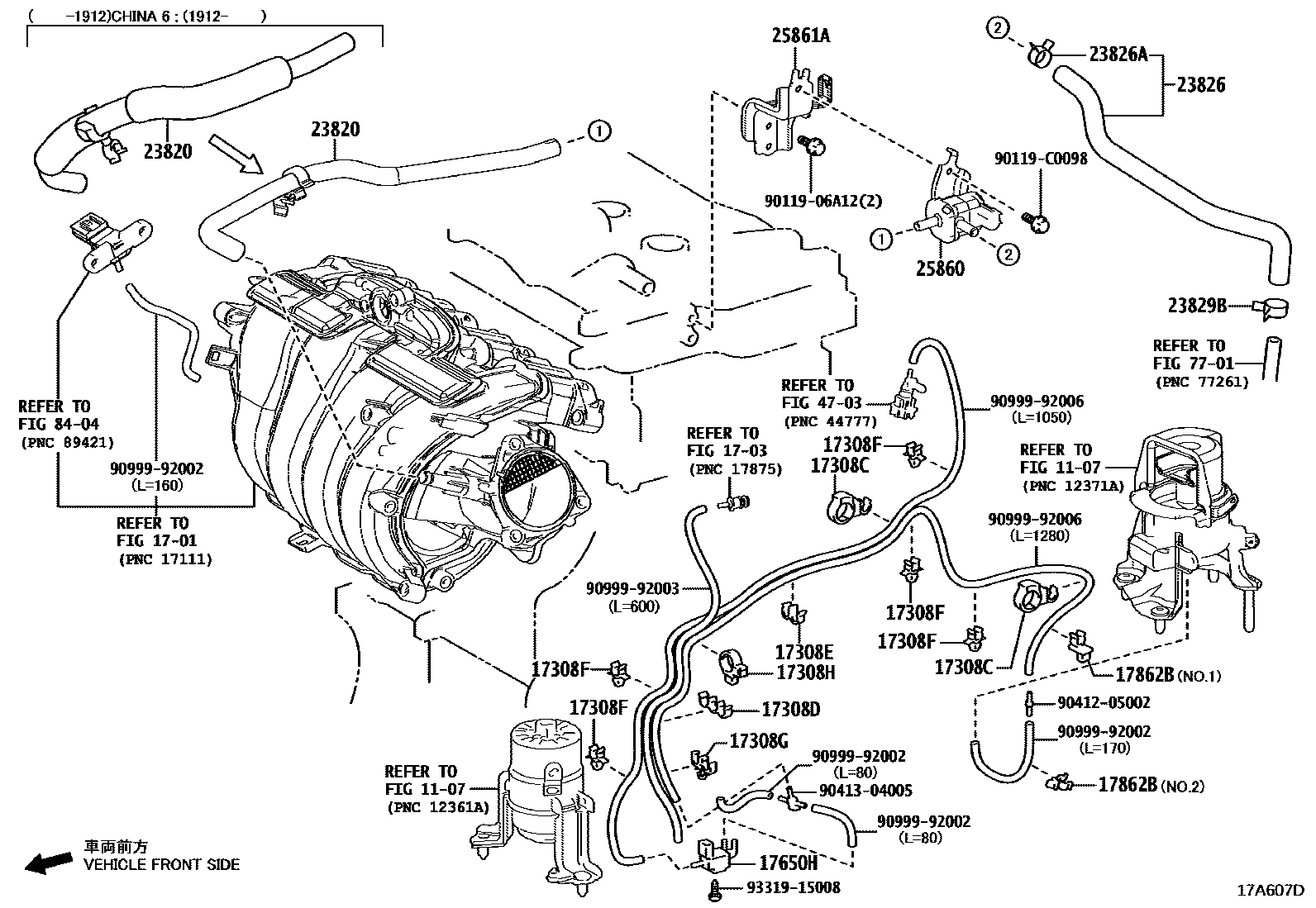

VACUUM PIPING
1107
1701
1703
17308CCLAMP(FOR VACUUM HOSE)
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
NO.3:REFER ILLUST.
17308DCLAMP, NO.2(FOR VACUUM HOSE)
17308ECLAMP, NO.3(FOR VACUUM HOSE)
17308FCLAMP, NO.4(FOR VACUUM HOSE)
17308GCLAMP, NO.5(FOR VACUUM HOSE)
17308HCLAMP, NO.6(FOR VACUUM HOSE)
17650HVALVE, VACUUM SWITCHING
17862BCLAMP, HOSE
NO.2:REFER ILLUST.
NO.1:REFER ILLUST.
23820HOSE ASSY, FUEL VAPOR FEED
(J),NO.1:REFER ILL.
NO.1:REFER ILLUST.
sub23820-25071
(J),NO.2:REFER ILL.
NO.2:REFER ILLUST.
(J),NO.1:REFER ILL.
(L),NO.1:REFER ILL.
(L),NO.2:REFER ILL.
(L),NO.1:REFER ILL.
(J)
(L)
23826HOSE, FUEL VAPOR FEED, NO.1
23826ACLIP(FOR FUEL VAPOR FEED HOSE, NO.1)
23829BCLIP(FOR FUEL VAPOR FEED HOSE)
25860VALVE ASSY, VACUUM SWITCHING, NO.1
(J)
(L)
25861ABRACKET, VACUUM SWITCHING VALVE, NO.2
*636
*633
4703
7701
8404
9011906A12
main90119-06A12
90119C0098
main90119-C0098
9041205002
main90412-05002
9041304005
main90413-04005
9099992002
main90999-92002
9099992003
main90999-92003
9099992006
main90999-92006
9331915008
main93319-15008
