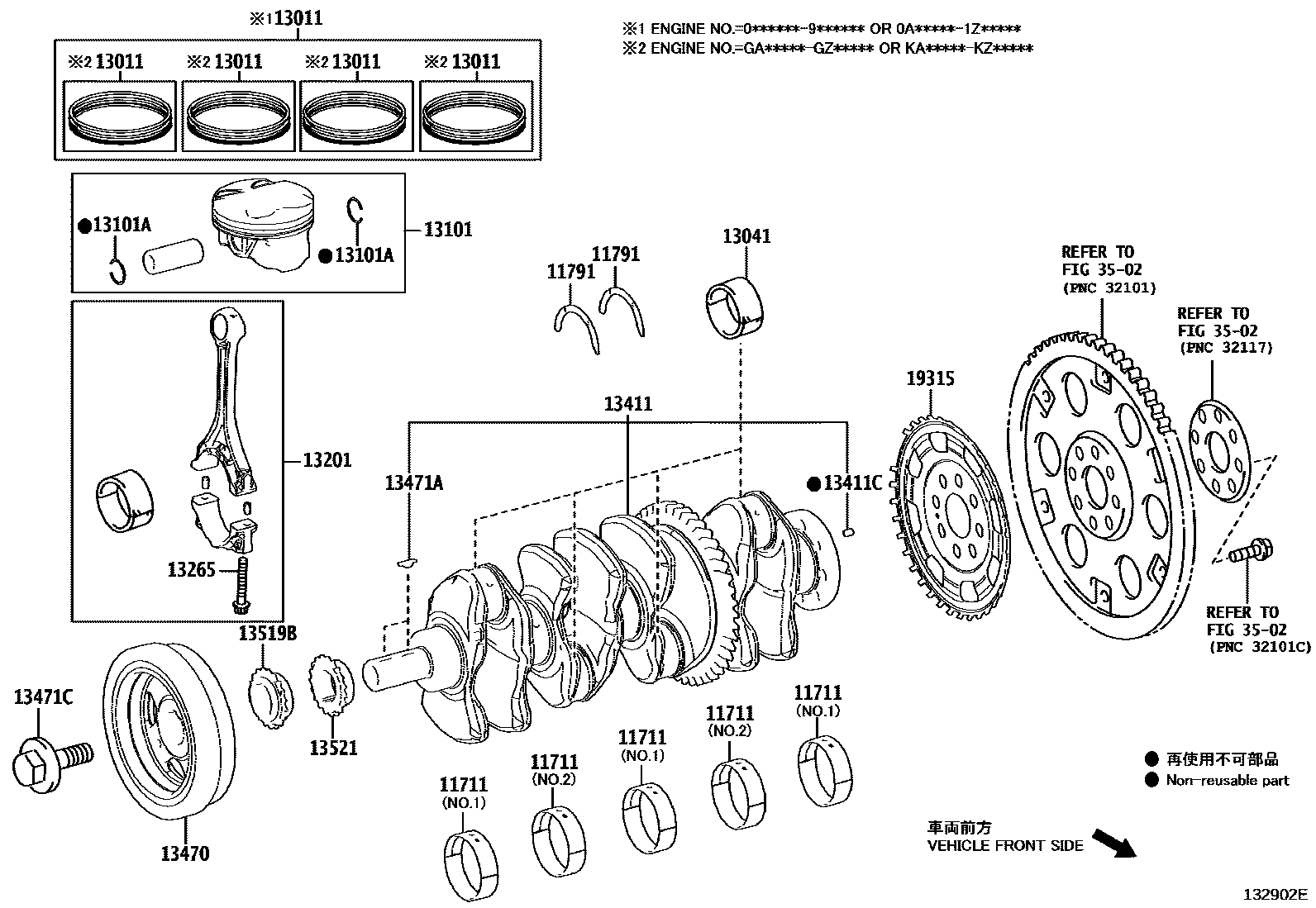

CRANKSHAFT & PISTON
11711BEARING, CRANKSHAFT
MARK 1,(J),NO.1 REFER R/M
MARK 2,NO.1,REFER R/M
MARK 3,(J),*633,NO.1:*RRM
MARK 4,(J),NO.1 REFER R/M
MARK 5,(J),*633,NO.1:*RRM
MARK 1,(J),*633,NO.2:*RRM
MARK 2,(J),NO.2 REFER R/M
MARK 3,NO.2,REFER R/M
MARK 4,*636,NO.2,REFER R/M
MARK 5,*636,NO.2,REFER R/M
MARK 1,(L),*633,NO.1:*RRM
MARK 2,(L),NO.1 REFER R/M
MARK 3,(L),*633,NO.1:*RRM
MARK 4,(L),NO.1 REFER R/M
MARK 5,(L),NO.1 REFER R/M
MARK 1,(L),NO.2 REFER R/M
MARK 2,(L),NO.2 REFER R/M
MARK 3,(L),NO.2 REFER R/M
MARK 4,(L),NO.2 REFER R/M
MARK 5,(L),*633,NO.2:*RRM
MARK 1,REFER REPAIR MANUAL
MARK 2,*609:REFER R/M
MARK 3,*633:REFER R/M
MARK 4,REFER REPAIR MANUAL
MARK 5,REFER REPAIR MANUAL
MARK 6,*609:REFER R/M
11791WASHER, CRANKSHAFT THRUST, UPPER
STD,*132
STD
STD,*636
STD
STD
13011RING SET, PISTON
STD,*132T/P A:REF.ILLUST
STD
STD,*633
STD,*609T/P B:REF.ILLUST
13041BEARING, CONNECTING ROD
MARK 1,*132:REFER R/M
MARK 2,*132:REFER R/M
MARK 3,*132:REFER R/M
MARK 1,REFER REPAIR MANUAL
MARK 2,*636:REFER R/M
MARK 3,(J),REFER R/M
MARK 1,(L),*633:REFER R/M
MARK 2,(L),*633:REFER R/M
MARK 3,(L),REFER R/M
MARK 1,REFER REPAIR MANUAL
MARK 2,REFER REPAIR MANUAL
MARK 3,REFER REPAIR MANUAL
13101PISTON SUB-ASSY, W/PIN
STD
STD
STD
STD
STD
STD,*609
STD
13101ARING, HOLE SNAP(FOR PISTON PIN)
*633
*633
13201ROD SUB-ASSY, CONNECTING
MARK A,REFER REPAIR MANUAL
MARK B,(J),*633
MARK C,(J),*633
MARK A,*132:REFER R/M
MARK B,*132:REFER R/M
MARK C,*132:REFER R/M
MARK A,*609:REFER R/M
MARK B,REFER REPAIR MANUAL
MARK C,REFER REPAIR MANUAL
MARK A,(L)
MARK B,(L)
MARK C,(L),*633
13265BOLT, CONNECTING ROD
(L)
13411CRANKSHAFT
*132
(J),*633
(L)
*609
13411CPIN, STRAIGHT(FOR CRANKSHAFT)
13470PULLEY ASSY, CRANKSHAFT
*132
(J)
*636
(L)
(L),*633
*633
(L)
13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
*636
(L),*633
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
(J)
(L)
13519BSPROCKET, OIL PUMP DRIVE
*132
(J)
(L)
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
*132
(L)
19315PLATE, CRANK ANGLE SENSOR, NO.1
*132
*636
(L)
3502
17 parts on this diagram · 5 diagrams in section
