PARTIAL ENGINE ASSEMBLY

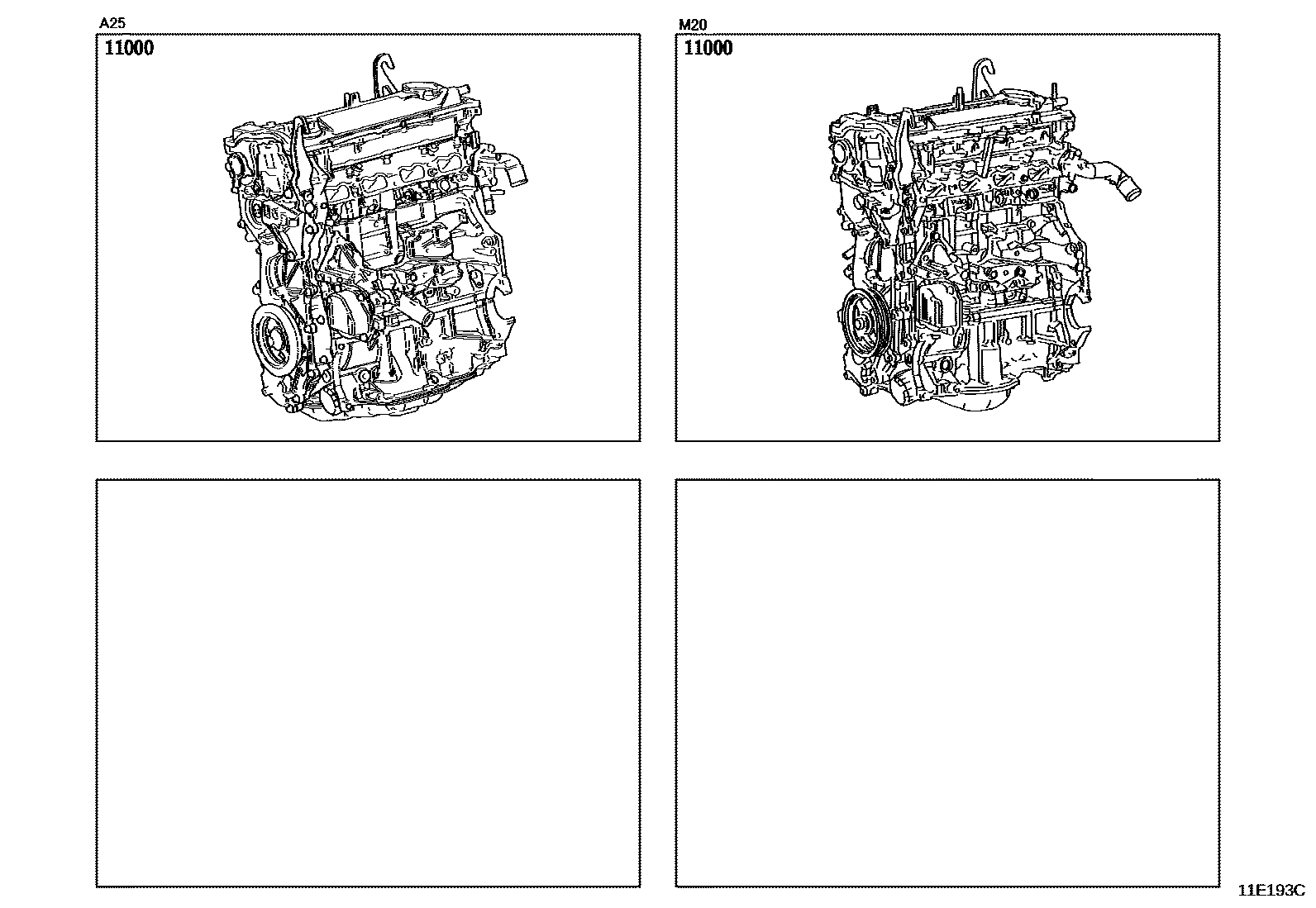

Parts diagram

11000ENGINE ASSY, PARTIAL

main19000-24360i201910-202106

*132

main19000-25220i202106-202203

*636

main19000-25230i201903-202106

main19000-25260i201903-202107

main19000-25280i202107-202203

*636

main19000-F0110i202107-202203

*633

main19000-F0110i202203-202303

main19000-F0120i202203-202303

main19000-F0120i202106-202203

*633

main19000-F0280i202407

main19000-F2090i201910-202106

*609

main19000-F2120i202106-202303

main19000-F2310i202304

main19000-F2370i202407

1 parts on this diagram · 1 diagram in section
