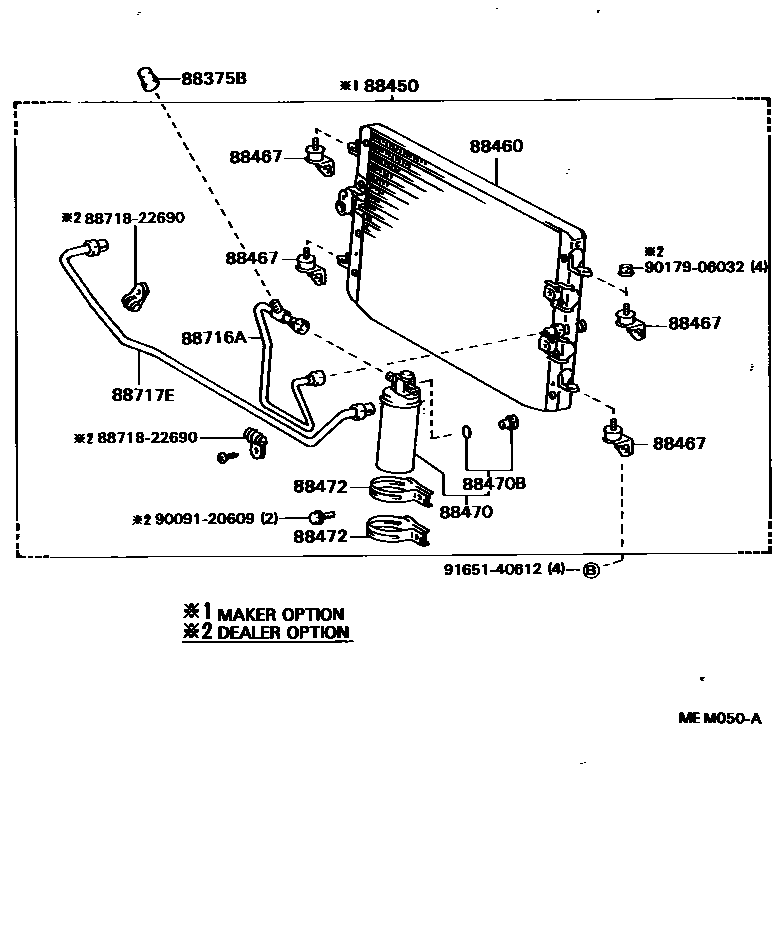

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1MAKER OPTION 0007 1DEALER OPTION 0008 1 0009 1 0010 1 0011 1

88375BCAP, SERVICE VALVE, NO.1

main88375-20010iGX71,MX75,RX7#,YX72..SA198810-199205

main88375-24010iRX72..GEN,V199108-199302

88450CONDENSER ASSY, W/RECEIVER

main88460-22243iRX7#,YX72..RHD198810-199302

main88460-22263iRX72..LHD198810-199302

main88460-22294iGX71,MX75198812-199205

88460CONDENSER ASSY, COOLER

main88460-22281iRX7#,YX72198810-199302

main88460-22301iGX71,MX75198812-199205

88467CUSHION, COOLER CONDENSER, NO.1

main88467-22060iGX71,MX75,RX7#,YX72198810-199205

88470RECEIVER & DRYER ASSY, COOLER

main88470-12070iGX71,MX75,RX7#,YX72..RHD198810-199205

main88470-22010iRX72..LHD198810-199008

88470BBOLT, FUSE

main88475-12020iGX71,MX75,RX7#,YX72198810-199302

88472BRACKET, RECEIVER TANK, NO.1

main88472-22090iRX72..RHD..GEN198810-199302

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88716-22451iRX7#,YX72..RHD198810-199302

main88716-22632iGX71,MX75198812-199205

main88716-2A090iRX72..LHD198810-199302

88717EPIPE, COOLER REFRIGERANT SUCTION, E

main88717-22230iRX7#,YX72..RHD198810-199302

8871822690PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-22690

9009120609

main90091-20609

9017906032

main90179-06032

9165140612

main91651-40612

13 parts on this diagram · 11 diagrams in section
