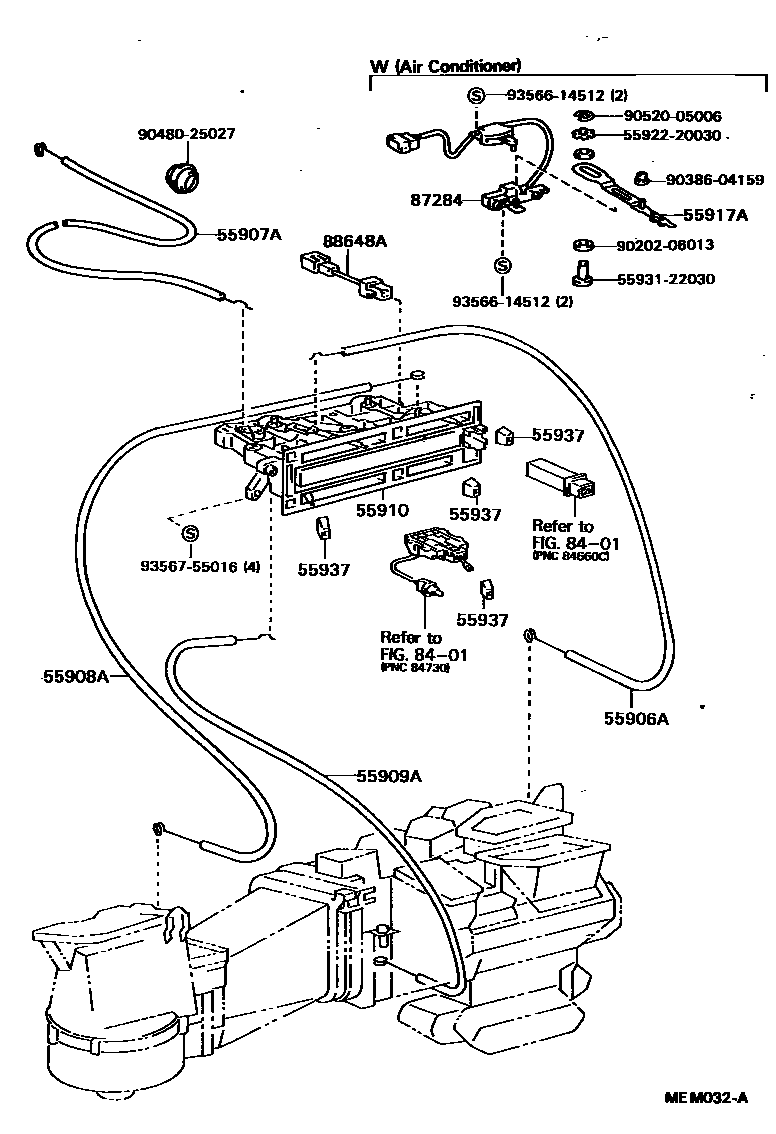

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1CONTROL PANEL 0003 1CONTROL PANEL 0004 1CONTROL PANEL 0005 1CONTROL PANEL 0006 1AUTO AIR CONDITIONER SENSOR 0007 1AIR DUCT 0008 1AIR DUCT

55906ACABLE SUB-ASSY, DEFROSTER DAMPER CONTROL

main55906-22100iMX75,RX7#,YX72..RHD..(GL,STD,XL)198810-199302

main55906-22110iRX72..LHD198810-199302

55907ACABLE SUB-ASSY, WATER VALVE CONTROL

main55907-22160iMX75,RX7#,YX72..RHD..(GL,STD,XL)198810-199302

main55907-22170iRX72..LHD198810-199302

55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL

main55908-22050iMX75,RX7#,YX72..RHD..(GL,STD,XL)198810-199302

55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL

main55909-22040iMX75,RX7#,YX72..GL,STD,XL198810-199302

55910CONTROL ASSY, HEATER OR BOOST VENTILATOR

main55910-22290iMX75,RX7#,YX72..RHD..(GL,STD,XL)198810-199302

main55910-22300iRX72..RHD..GEN198810-199302

W(AIR CONDITIONER & BOOST VENTILATOR)

main55910-22310iRX72..RHD..GEN198810-199302

W(BOOST VENTILATOR)

main55910-22320iRX72..LHD198810-199302

main55910-22340iRX72..LHD..GEN198810-199302

W(BOOST VENTILATOR)

main55910-22360iRX72..LHD..GEN198810-199302

W(AIR CONDITIONER & BOOST VENTILATOR)

main55910-22380iGX71198812-199205

main55910-22390iMX75..GLX198812-199205

55917ALEVER, TEMPERATURE DAMPER CONTROL

main55917-22070iRX72..RHD..GEN198810-199302

55937KNOB, HEATER CONTROL LEVER

main55905-22152iMX75..GLX198812-199205

main55905-30082iRX72..LHD..GEN198810-199302

8401

87284RESISTOR SUB-ASSY, VARIABLE

main88032-22051iGX71198812-199205

main88032-22070iRX72..RHD..GEN198810-199302

main88032-22080iRX72..LHD..XL198810-199302

88648AWIRING, COOLER

main88648-22140iMX75,RX7#,YX72..GL,STD,XL198810-199302

5592220030BRACKET, HEATER CONTROL BASE

main55922-20030

5593122030CLAMP, HEATER CONTROL WIRE

main55931-22030

9020206013

main90202-06013

9038604159

main90386-04159

9048025027

main90480-25027

9052005006

main90520-05006

9356614512

main93566-14512

9356755016

main93567-55016

18 parts on this diagram · 7 diagrams in section
