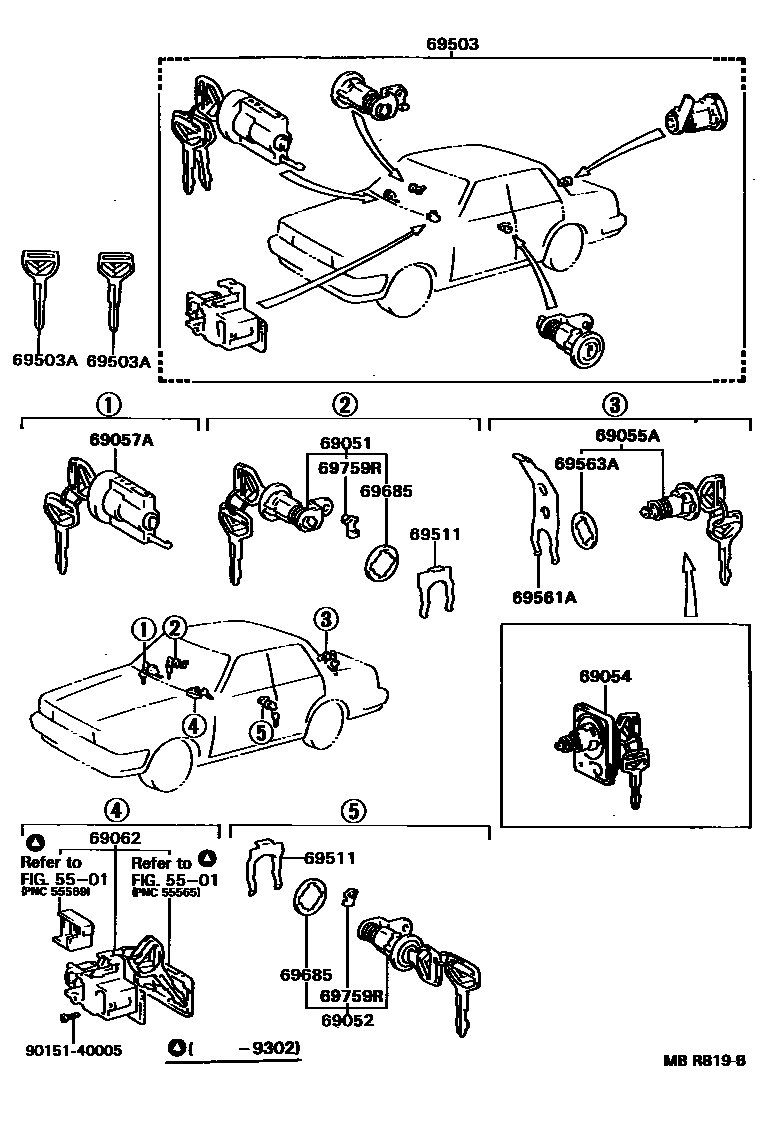

LOCK CYLINDER SET

0001 1 0002 1

5501

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-22181iGX71,MX75..GLX¥8,000198812-199205

main69051-22250iRX72..SA¥3,990198812-199205

main69051-22260iMX75,RX73,YX72..GL,STD,XL¥3,990198812-199205

main69051-23051iRX72..RHD..GEN¥3,990198810-199302

main69051-23080iRX72..LHD¥3,520198810-199302

sub69051-23051¥3,990

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-22191iGX71,MX75..GLX¥8,000198812-199205

main69052-22250iRX72..SA¥3,990198812-199205

main69052-22260iMX75,RX73,YX72..GL,STD,XL¥3,990198812-199205

main69052-23051iRX72..RHD..GEN¥3,990198810-199302

main69052-23080iRX72..LHD¥3,520198810-199302

sub69052-23051¥3,990

69054CYLINDER & KEY SET, BACK DOOR LOCK

main69055-22320iMX75,RX73,YX72..GL,STD,XL¥3,990198812-199205

main69055-22330iRX72..SA¥3,990198812-199205

main69055-23021iRX72..RHD..GEN¥3,740198810-199302

main69055-23070iRX72..LHD¥3,740198810-199302

sub69055-23021¥3,740

69055ACYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK

main69055-22191iGX71,MX75..GLX¥6,000198812-199205

sub69055-22152

69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-22160iRX72..SA¥7,100198812-199205

main69057-22170iGX71,MX75..GLX¥7,100198812-199205

sub69057-32121¥5,700

main69057-22180iMX75,RX73,YX72..GL,STD,XL¥7,100198812-199205

sub69057-32121¥5,700

main69057-23021iRX72..RHD..GEN¥5,700198810-199302

sub69057-91607¥5,700

main69057-23051iRX72..LHD¥5,700198810-199302

sub69057-23031¥5,700

69062CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69056-22120iRX72..SA¥6,800198812-199205

main69056-22130iGX71,MX75,RX73,YX72¥6,800198812-199205

main69056-23011-03iRX72..RHD..GEN199008-199302

MEDIUM GRAY,TRIM1#

sub69056-23011¥4,970

sub69056-22130¥6,800

sub55565-22010¥300

sub55569-22020¥390

main69056-23011-06iRX72..RHD..GEN198810-199302

SABLE,TRIM4#

sub69056-23011¥4,970

sub69056-22130¥6,800

sub55565-22010¥300

sub55569-22020¥390

main69056-23011-12iRX72..RHD..GEN198810-199302

NEW MAROON,TRIM3#

sub69056-23011¥4,970

sub69056-22130¥6,800

sub55565-22010¥300

sub55569-22020¥390

main69056-23011-14iRX72..RHD..GEN198810-199008

BLUE,TRIM8#

sub69056-23011¥4,970

sub69056-22130¥6,800

sub55565-22010¥300

sub55569-22020¥390

main69056-23050-02iRX72..LHD198810-199302

NEW MAROON,TRIM3#

sub69056-23011¥4,970

main69056-23050-03iRX72..LHD199008-199302

M.GRAY,TRIM1#

sub69056-23011¥4,970

main69056-23050-04iRX72..LHD198810-199008

BLUE,TRIM8#

sub69056-23011¥4,970

main69056-23050-06iRX72..LHD198810-199302

SABLE,TRIM4#

sub69056-23011¥4,970

69503CYLINDER SET, LOCK

main69005-22533iMX75,RX73,YX72..GL,STD,XL¥21,200198812-199205

main69005-22641iGX71,MX75..GLX¥30,700198812-199205

main69005-22830iRX72..SA¥21,200198812-199205

main69005-23081iRX72..RHD..GEN¥17,000198810-199005

sub69005-91642¥17,300

main69005-23101iRX72..LHD¥17,300198810-199005

main69005-91645iRX72..RHD..GEN¥17,000199005-199302

main69005-91646iRX72..LHD¥17,000199005-199302

69503AKEY, BLANK

main90999-00099iGX71,MX75,RX73,YX72¥1,550198812-199205

MASTER KEY

main90999-00100iGX71,MX75,RX73,YX72¥1,550198812-199205

SUB KEY

main90999-00107iRX72¥1,550198810-199302

MASTER KEY

main90999-00108iRX72¥1,550198810-199302

SUB KEY

main90999-00109iRX72..LHD¥1,550198810-199302

MASTER KEY,W(*68)

sub90999-00123¥1,550

main90999-00118iGX71,MX75,RX73,YX72¥2,060198812-199205

MASTER KEY,W(*68)

main90999-00123iRX72..RHD¥1,550198810-199302

MASTER KEY,W(*68)

69511RETAINER, FRONT DOOR LOCK CYLINDER

main69511-32010iGX71,MX75,RX7#,YX72¥160198810-199302

69561ARETAINER, LUGGAGE COMPARTMENT LOCK CYLINDER

main69561-22050iGX71,MX75,RX73,YX72¥440198812-199205

69563APAD, LUGGAGE COMPARTMENT DOOR LOCK CYLINDER

main69563-32010iGX71,MX75,RX73,YX72¥310198812-199205

69685PAD, LOCK CYLINDER

main69513-32010iGX71,MX75,RX73,YX72¥120198812-199205

main69513-87001iRX72¥350198810-199302

sub69513-32010¥120

69759RSNAP, FRONT DOOR LOCK CYLINDER

main69759-20080iGX71,MX75,RX7#,YX72¥280198810-199302

ORANGE

main69759-20080iRX72..GEN,V¥280199008-199302

RH

main69759-20090iGX71,MX75,RX7#,YX72..SA¥280198810-199302

PINK

main69759-20090iRX72..GEN,V¥280199008-199302

LH

9015140005

main90151-40005¥90

15 parts on this diagram · 2 diagrams in section
