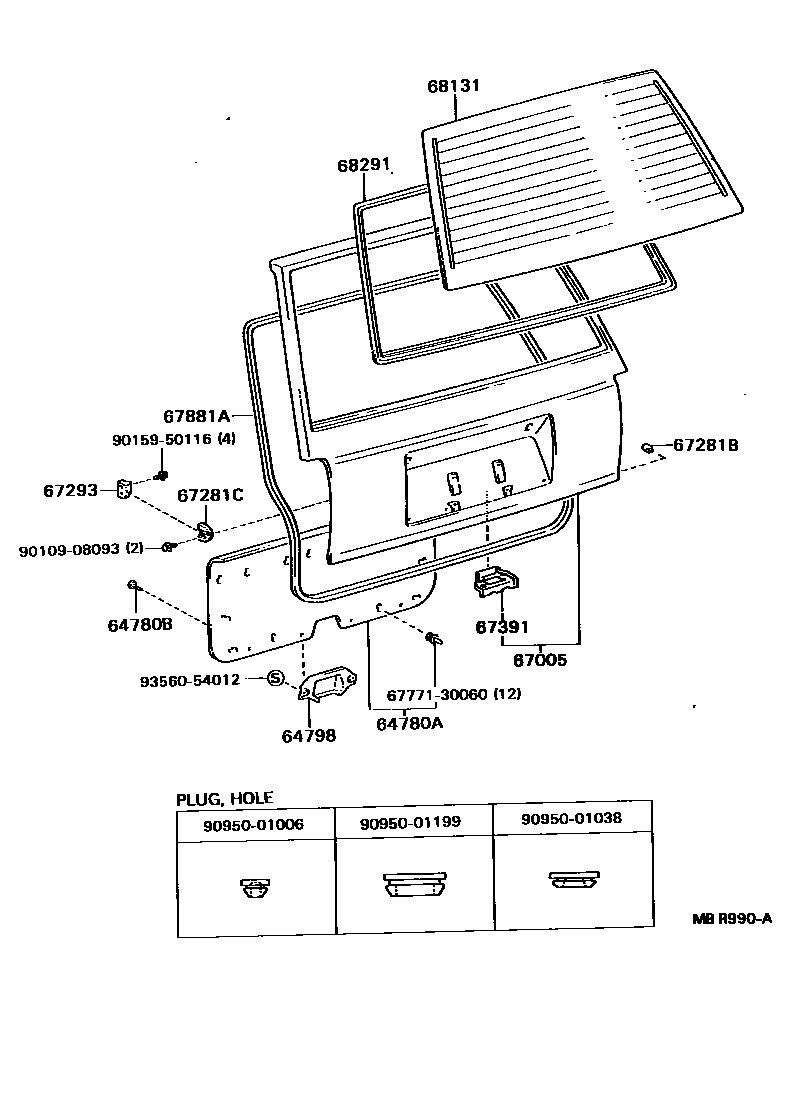

BACK DOOR PANEL & GLASS

64780APANEL ASSY, BACK DOOR TRIM

main64780-23021-06iRX72..GL198810-198811

BROWN,TRIM4#

sub64780-91604

sub64780-23021

main64780-23021-12iRX72..GL198810-198811

NEW MAROON,TRIM3#

sub64780-91604

sub64780-23021

main64780-23021-14iRX72..GL198810-198811

BLUE,TRIM8#

sub64780-91604

sub64780-23021

main64780-23030-03iRX72..SA198812-199009

COOL GRAY,TRIM1#

sub64780-23030

sub64780-23060

main64780-23030-06iRX72..XL198810-199005

SABLE,TRIM4#

sub64780-23030

sub64780-23060

main64780-23030-12iRX72..XL..(GEN,V)198810-199005

NEW MAROON,TRIM3#

sub64780-23030

sub64780-23060

main64780-23030-14iRX72..XL..(GEN,V)198810-199005

BLUE,TRIM8#

sub64780-23030

sub64780-23060

main64780-23060-02iRX72..XL..(GEN,V)199005-199302

NEW MAROON,TRIM3#

main64780-23060-03iRX72..XL..(GEN,V)199008-199302

MEDIUM GRAY,TRIM1#

main64780-23060-04iRX72..XL..(GEN,V)199005-199008

DARK BLUE,TRIM8#

main64780-23060-06iRX72..XL199005-199302

SABLE,TRIM4#

main64780-91604-02iRX72..GL198811-199302

NEW MAROON,TRIM3#

main64780-91604-03iRX72..GL199008-199302

MEDIUM GRAY,TRIM1#

main64780-91604-04iRX72..GL198811-199008

BLUE,TRIM8#

main64780-91604-06iRX72..GL198811-199302

SABLE,TRIM4#

64780BCLIP(FOR BACK DOOR TRIM PANEL)

main90467-08114-38iRX72198810-199302

SABLE,TRIM4#

sub90467-08114

main90467-08114-40iRX72..SA198812-199009

GRAY,TRIM1#

sub90467-08114

main90467-08114-44iRX72..GEN,V199008-199302

SHADOW GRAY,TRIM1#

sub90467-08114

main90467-08114-51iRX72..GEN,V198810-199008

BLUE,TRIM8#

sub90467-08114

main90467-08114-52iRX72..GEN,V198810-199302

NEW MAROON,TRIM3#

sub90467-08114

64798COVER, BACK DOOR LOCK

main64798-23010-03iRX72..SA198812-199009

COOL GRAY,TRIM1#

sub64798-23010

main64798-23010-06iRX72..XL198810-199302

SABLE,TRIM4#

sub64798-23010

main64798-23010-12iRX72..XL..(GEN,V)198810-199302

NEW MAROON,TRIM3#

sub64798-23010

main64798-23010-13iRX72..XL..(GEN,V)199008-199302

MEDIUM GRAY,TRIM1#

sub64798-23010

main64798-23010-14iRX72..XL..(GEN,V)198810-199008

BLUE,TRIM8#

sub64798-23010

67005PANEL SUB-ASSY, BACK DOOR

main67005-91A24iRX72..GEN,V198810-199302

main67005-91A25iRX72..GEN,V198810-199302

W(REAR WIPER)

main67005-91A25iRX72..SA198812-199205

67281BSTOPPER, BACK DOOR, LOWER

main67281-13030iRX72198810-199302

67281CPLATE, BACK DOOR LOWER STOPPER

main67281-23010iRX72198810-199302

67293CUSHION, BACK DOOR LOWER STOPPER

main67293-23010iRX72198810-199302

RH

main67294-23010iRX72198810-199302

LH

67391REINFORCEMENT, BACK DOOR LOCK

main67391-23010iRX72..GEN,V199008-199302

67881AWEATHERSTRIP, BACK DOOR

main67881-91702iRX72198810-199302

68131GLASS, BACK DOOR

main68105-23010iRX72..GEN,V198810-199302

*EHTT,T=3.5,W(REAR WIPER)

main68131-23030iRX72..GEN,V198810-199302

*TT,T=3.5

sub68105-23010

68291WEATHERSTRIP, BACK DOOR GLASS

main68291-23010iRX72198810-199302

6777130060WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-30060

9010908093

main90109-08093

9015950116

main90159-50116

9095001006

main90950-01006

9095001038

main90950-01038

9095001199

main90950-01199

9356054012

main93560-54012

18 parts on this diagram · 1 diagram in section
