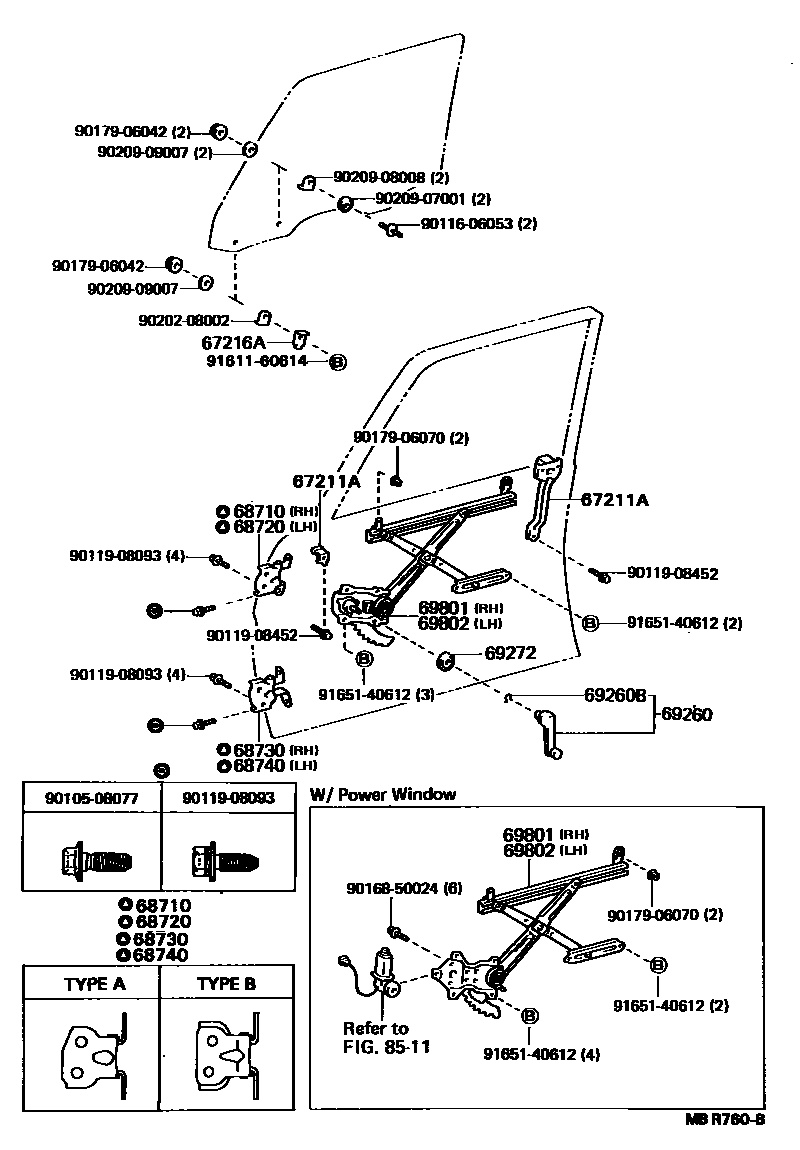

FRONT DOOR WINDOW REGULATOR & HINGE

67211ASTOP, FRONT DOOR WINDOW, UPPER

main67205-22020iGX71,MX75,RX7#,YX72..SA199008-199302

REAR-RH

main67206-22010iGX71,MX75,RX7#,YX72198810-199008

LH-REAR

main67211-22010iGX71,MX75,RX7#,YX72198810-199008

RH-FRONT

main67212-22010×2iGX71,MX75,RX7#,YX72..SA199008-199302

LH-FRONT

67216ASTOPPER, FRONT DOOR GLASS, UPPER NO.2

main67216-22010×2iGX71,MX75,RX7#,YX72198810-199302

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-20060iGX71,MX75,RX7#,YX72..SA199008-199302

TYPE A

main68710-22050iRX72..GEN,V199008-199302

TYPE B

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-20050iGX71,MX75,RX7#,YX72..SA199008-199302

TYPE A

main68720-22040iRX72..GEN,V199008-199302

TYPE B

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-24010iRX72..GEN,V199008-199302

TYPE A

main68730-32010iRX72..GEN,V199008-199302

TYPE B

sub68730-30090

main68730-60020iGX71,MX75,RX7#,YX72..SA198812-199211

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-24010iRX72..GEN,V199008-199302

TYPE A

main68740-32010iRX72..GEN,V199008-199302

TYPE B

main68740-60020iGX71,MX75,RX7#,YX72..SA198812-199211

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-14030-43×2iMX75,RX7#,YX72..(GL,STD,XL)..SA198812-199009

COOL GRAY,TRIM1#

main69260-14030-50×2iMX75,RX7#,YX72..(GL,STD,XL)..SA199009-199205

MEDIUM GRAY,TRIM1#

main69260-14030-58×2iMX75,RX7#,YX72..(GL,STD,XL)..SA198812-199205

SABLE,TRIM4#

main69260-22030-16×2iRX72..4FC;RX72..XL..(GEN,V)198810-199302

SABLE,TRIM4#

main69260-22030-23×2iRX72..4FC;RX72..XL..(GEN,V)199008-199302

MEDIUM GRAY,TRIM1#

main69260-22030-24×2iRX72..4FC;RX72..XL..(GEN,V)198810-199008

DARK BLUE,TRIM8#

main69260-22030-32×2iRX72..4FC;RX72..XL..(GEN,V)198810-199302

NEW MAROON,TRIM3#

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90520-01274×2iRX7#..XL198810-199302

69272PLATE, FRONT DOOR REGULATOR INSIDE HANDLE

main69285-22010-08×2iRX72..4FC;RX72..XL..(GEN,V)198810-199008

NATURAL WHITE,TRIM3#,4#,8#

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-22080iRX72..4FC198810-199302

W(POWER WINDOW)

main69810-22130iRX72..XL;RX72..4FC;MX75,RX73,YX72..GL,STD,XL198810-199302

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-22080iRX72..4FC198810-199302

W(POWER WINDOW)

main69820-22120iRX72..XL;RX72..4FC;MX75,RX73,YX72..GL,STD,XL198810-199302

8511

9010508077

main90105-08077

9011606053

main90116-06053

9011908093

main90119-08093

9011908452

main90119-08452

9016850024

main90168-50024

9017906042

main90179-06042

9017906070

main90179-06070

9020208002

main90202-08002

9020907001

main90209-07001

9020908008

main90209-08008

9020909007

main90209-09007

9161160614

main91611-60614

9165140612

main91651-40612

25 parts on this diagram · 1 diagram in section
