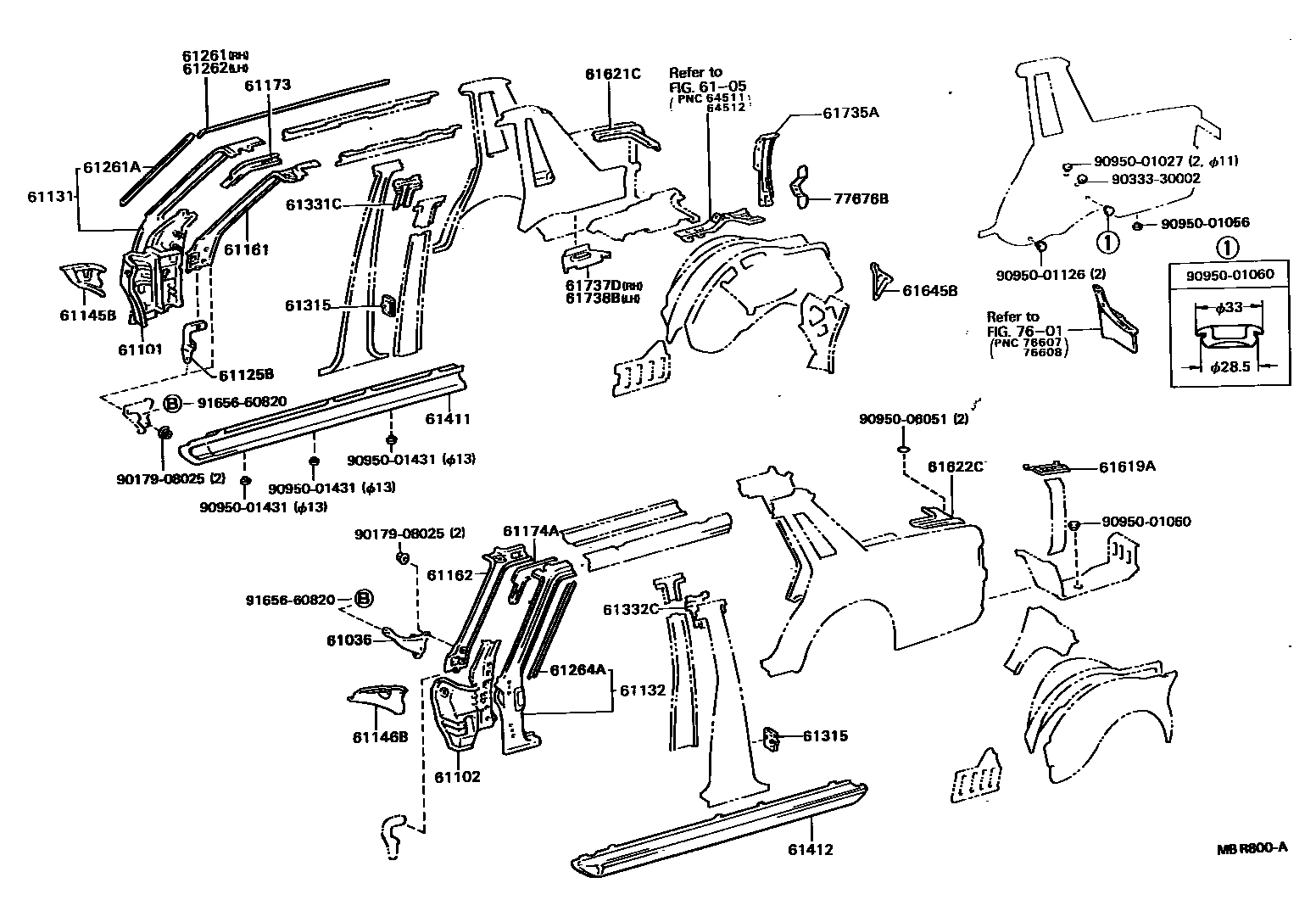

SIDE MEMBER
61036BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, LH
6105
61101PANEL SUB-ASSY, COWL SIDE, RH
61102PANEL SUB-ASSY, COWL SIDE, LH
61125BPANEL, COWL SIDE, FRONT RH
61131PILLAR, FRONT BODY, UPPER OUTER RH
61132PILLAR, FRONT BODY, UPPER OUTER LH
61145BGUSSET, FRONT BODY PILLAR, LOWER RH
61146BGUSSET, FRONT BODY PILLAR, LOWER LH
61161PILLAR, FRONT BODY, UPPER INNER RH
61162PILLAR, FRONT BODY, UPPER INNER LH
61173REINFORCEMENT, FRONT BODY PILLAR, UPPER INNER
61174AREINFORCEMENT, FRONT BODY PILLAR, UPPER INNER LH
61261CHANNEL, ROOF DRIP, RH
61261ACHANNEL, ROOF DRIP SIDE, FRONT RH
61262CHANNEL, ROOF DRIP, LH
61264ACHANNEL, ROOF DRIP SIDE, FRONT LH
61315RETAINER, DOOR LOCK STRIKER PLATE
61331CREINFORCEMENT, CENTER PILLAR, UPPER OUTER RH
61332CREINFORCEMENT, CENTER PILLAR, UPPER OUTER LH
61411PANEL, ROCKER, OUTER RH
61412PANEL, ROCKER, OUTER LH
61619AREINFORCEMENT, QUARTER PANEL
61621CTROUGH, LUGGAGE COMPARTMENT OPENING, RH
61622CTROUGH, LUGGAGE COMPARTMENT OPENING, LH
61645BGUSSET, QUARTER WHEEL HOUSE, REAR RH
61735APANEL, ROOF SIDE, INNER REAR RH
61737DREINFORCEMENT, ROOF SIDE, INNER RH
61738BPANEL, ROOF SIDE, INNER LOWER LH
7601
77676BBRACKET, FUEL TANK FILLER PIPE PROTECTOR, NO.2
9017908025
main90179-08025
9033330002
main90333-30002
9095001027
main90950-01027
9095001056
main90950-01056
9095001060
main90950-01060
9095001126
main90950-01126
9095001431
main90950-01431
9095006051
main90950-06051
9165660820
main91656-60820
40 parts on this diagram · 3 diagrams in section
