E
EPC Data

MAT & CARPET

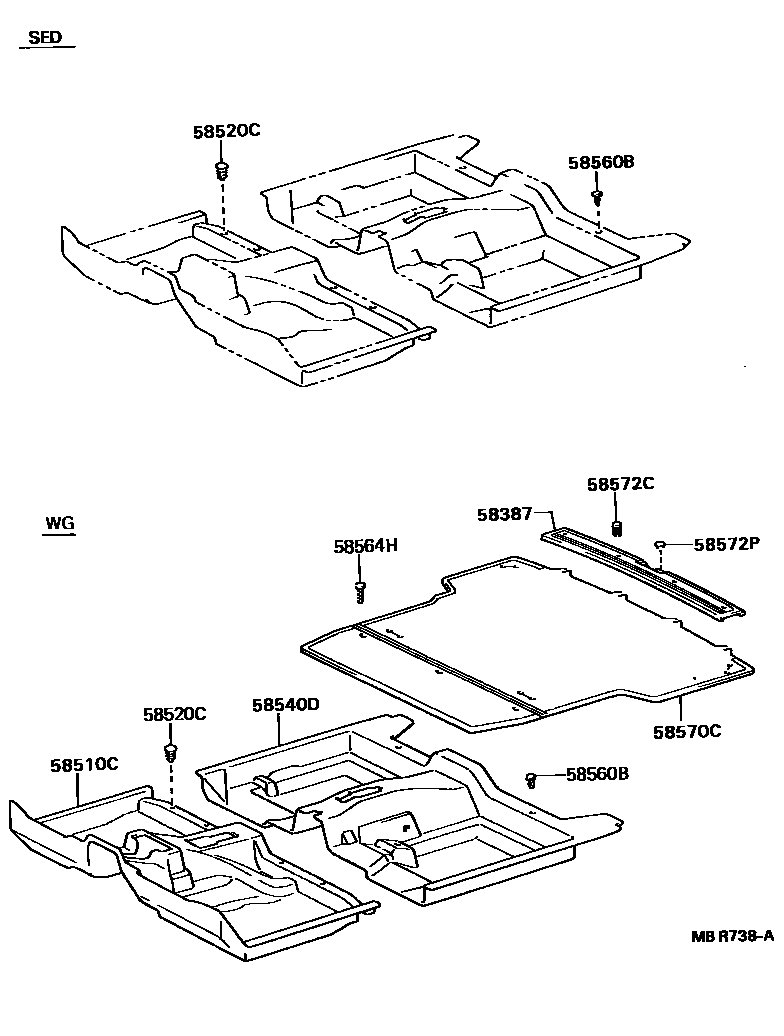

Parts diagram
58387PLATE, REAR FLOOR FINISH
main58387-23010-03i198812-199009
COOL GRAY,TRIM1#
sub58387-23010¥6,200
main58387-23010-06i198810-199302
SABLE,TRIM4#
sub58387-23010¥6,200
main58387-23010-12i198810-199302
NEW MAROON,TRIM3#
sub58387-23010¥6,200
main58387-23010-13i199008-199302
MEDIUM GRAY,TRIM1#
sub58387-23010¥6,200
main58387-23010-14i198810-199008
BLUE,TRIM8#
sub58387-23010¥6,200
58510CCARPET ASSY, FRONT FLOOR, FRONT
main58510-2A200-03i199008-199205
MEDIUM GRAY,MEDIUM GRAY,TRIM1#
sub58510-2A200¥40,000
main58510-2A200-03i199008-199302
MEDIUM GRAY,TRIM1#
sub58510-2A200¥40,000
main58510-2A200-06i198810-199302
SABLE,TRIM4#
sub58510-2A200¥40,000
main58510-2A200-06i199008-199205
SABLE,SABLE,TRIM4#
sub58510-2A200¥40,000
main58510-2A200-12i198810-199302
NEW MAROON,TRIM3#
sub58510-2A200¥40,000
main58510-2A200-14i198810-199008
BLUE,TRIM8#
sub58510-2A200¥40,000
main58510-2A220-03i199008-199302
MEDIUM GRAY,TRIM1#
sub58510-2A220¥40,000
main58510-2A220-06i198810-199302
SABLE,TRIM4#
sub58510-2A220¥40,000
main58510-2A220-12i198810-199302
NEW MAROON,TRIM3#
sub58510-2A220¥40,000
main58510-2A220-14i198810-199008
BLUE,TRIM8#
sub58510-2A220¥40,000
main58510-2A230-06i198810-198902
BROWN,TRIM4#
sub58510-91628¥47,800
sub58510-2A230¥59,800
main58510-2A230-12i198810-198902
NEW MAROON,TRIM3#
sub58510-91628¥47,800
sub58510-2A230¥59,800
main58510-2A230-14i198810-198902
BLUE,TRIM8#
sub58510-91628¥47,800
sub58510-2A230¥59,800
main58510-91628-02i198902-199302
NEW MAROON,TRIM3#
main58510-91628-03i199008-199302
MEDIUM GRAY,TRIM1#
main58510-91628-04i198902-199008
BLUE,TRIM8#
main58510-91628-06i198902-199302
SABLE,TRIM4#
58520CCLIP(FOR FRONT FLOOR CARPET)
main90467-06055-03i198812-199009
COOL GRAY,TRIM1#
sub90467-06055¥130
main90467-06055-06i198810-199302
SABLE,TRIM4#
sub90467-06055¥130
main90467-06055-12i198810-199302
NEW MAROON,TRIM3#
sub90467-06055¥130
main90467-06055-14i198810-199008
BLUE,TRIM8#
sub90467-06055¥130
main90467-06055-23i199008-199302
MEDIUM GRAY,TRIM1#
sub90467-06055¥130
58540DCARPET ASSY, FLOOR, REAR
main58540-22510-06i198810-198907
W(FRONT SEAT BELT),SABLE,TRIM4#
sub58540-22510¥29,100
sub58540-91619¥31,100
main58540-22510-06i198810-198907
SABLE,TRIM4#
sub58540-22510¥29,100
sub58540-91619¥31,100
main58540-22510-12i198810-198907
W(FRONT SEAT BELT),NEW MAROON,TRIM3#
sub58540-22510¥29,100
sub58540-91619¥31,100
main58540-22510-12i198810-198907
NEW MAROON,TRIM3#
sub58540-22510¥29,100
sub58540-91619¥31,100
main58540-22510-14i198810-198907
W(FRONT SEAT BELT),BLUE,TRIM8#
sub58540-22510¥29,100
sub58540-91619¥31,100
main58540-22510-14i198810-198907
BLUE,TRIM8#
sub58540-22510¥29,100
sub58540-91619¥31,100
main58540-22530-02i198810-198907
MAROON,TRIM3#
sub58540-22530¥29,100
sub58540-91620¥31,100
main58540-22530-06i198810-198907
SABLE,TRIM4#
sub58540-22530¥29,100
sub58540-91620¥31,100
main58540-22530-12i198810-198907
NEW MAROON,TRIM3#
sub58540-22530¥29,100
sub58540-91620¥31,100
main58540-22530-14i198810-198907
BLUE,TRIM8#
sub58540-22530¥29,100
sub58540-91620¥31,100
main58540-22540-06i198810-198902
BROWN,TRIM4#
sub58540-91616¥50,200
sub58540-22540¥50,300
main58540-22540-12i198810-198902
NEW MAROON,TRIM3#
sub58540-91616¥50,200
sub58540-22540¥50,300
main58540-22540-14i198810-198902
BLUE,TRIM8#
sub58540-91616¥50,200
sub58540-22540¥50,300
main58540-91616-02i198902-199302
NEW MAROON,TRIM3#
sub58540-23040¥36,500
main58540-91616-03i199008-199302
MEDIUM GRAY,TRIM1#
sub58540-23040¥36,500
main58540-91616-04i198902-199008
BLUE,TRIM8#
sub58540-23040¥36,500
main58540-91616-06i198902-199302
SABLE,TRIM4#
sub58540-23040¥36,500
main58540-91619-02i198907-199302
NEW MAROON,TRIM3#
sub58540-23030¥30,500
main58540-91619-02i198907-199008
W(FRONT SEAT BELT),NEW MAROON,TRIM3#
sub58540-23030¥30,500
main58540-91619-03i199008-199302
MEDIUM GRAY,TRIM1#
sub58540-23030¥30,500
main58540-91619-04i198907-199008
W(FRONT SEAT BELT),BLUE,TRIM8#
sub58540-23030¥30,500
main58540-91619-04i198907-199008
BLUE,TRIM8#
sub58540-23030¥30,500
main58540-91619-06i198907-199008
W(FRONT SEAT BELT),SABLE,TRIM4#
sub58540-23030¥30,500
main58540-91619-06i198907-199302
SABLE,TRIM4#
sub58540-23030¥30,500
main58540-91620-02i198907-199008
NEW MAROON,TRIM3#
main58540-91620-04i198907-199008
BLUE,TRIM8#
main58540-91620-06i198907-199008
SABLE,TRIM4#
58560BCLIP(FOR FLOOR CARPET, REAR)
main90467-07158-01i198810-199008
BLACK,TRIM3#,4#,8#
sub90467-07158¥140
main90467-07158-01i198810-199302
BLACK,TRIM1#,4#
sub90467-07158¥140
main90467-07158-01i199008-199302
BLACK,TRIM1#,3#,4#
sub90467-07158¥140
58564HCLIP(FOR REAR FLOOR CARPET)
main90467-06016-47i198810-199302
NEW MAROON,TRIM3#
sub90467-06016¥230
sub90467-07049¥90
main90467-06016-48i198810-199008
BLUE,TRIM8#
sub90467-06016¥230
sub90467-07049¥90
main90467-06016-49i199008-199302
GRAY,TRIM1#
sub90467-06016¥230
sub90467-07049¥90
main90467-06016-53i198812-199009
COOL GRAY,TRIM1#
sub90467-06016¥230
sub90467-07049¥90
main90467-06016-57i198810-199302
SABLE,TRIM4#
sub90467-06016¥230
sub90467-07049¥90
58570CCARPET ASSY, REAR FLOOR
main58570-23021-06i198810-198902
BROWN,TRIM4#
sub58570-23021¥37,600
sub58570-91604¥37,500
main58570-23021-12i198810-198902
NEW MAROON,TRIM3#
sub58570-23021¥37,600
sub58570-91604¥37,500
main58570-23021-14i198810-198902
BLUE,TRIM8#
sub58570-23021¥37,600
sub58570-91604¥37,500
main58570-23030-06i198812-199205
SABLE,SABLE,TRIM4#
sub58570-91604¥37,500
main58570-23030-06i198810-199302
SABLE,TRIM4#
sub58570-91604¥37,500
main58570-23030-13i199008-199302
MEDIUM GRAY,TRIM1#
sub58570-91604¥37,500
main58570-23030-13i198812-199205
MEDIUM GRAY,MEDIUM GRAY,TRIM1#
sub58570-91604¥37,500
main58570-23030-14i198810-199008
BLUE,TRIM8#
sub58570-91604¥37,500
main58570-23030-22i198810-199302
NEW MAROON,TRIM3#
sub58570-91604¥37,500
main58570-91604-02i198902-199302
NEW MAROON,TRIM3#
main58570-91604-03i199008-199302
MEDIUM GRAY,TRIM1#
main58570-91604-04i198902-199008
BLUE,TRIM8#
main58570-91604-06i198902-199302
SABLE,TRIM4#
58572CCLIP, REAR FLOOR MAT SET
main90467-06017-40i198812-199009
GRAY,TRIM1#
sub90467-06017¥110
main90467-06017-41i198810-199302
NEW MAROON,TRIM3#
sub90467-06017¥110
main90467-06017-48i198810-199008
BLUE,TRIM8#
sub90467-06017¥110
main90467-06017-58i198810-199302
SABLE,TRIM4#
sub90467-06017¥110
main90467-06017-59i199008-199302
MEDIUM GRAY,TRIM1#
sub90467-06017¥110
58572PPLUG, HOLE(FOR SET PLATE)
main90950-01484-03i198812-199009
COOL GRAY,TRIM1#
sub90950-01484¥380
main90950-01484-06i198810-199302
SABLE,TRIM4#
sub90950-01484¥380
main90950-01484-12i198810-199302
NEW MAROON,TRIM3#
sub90950-01484¥380
main90950-01484-13i199008-199302
MEDIUM GRAY,TRIM1#
sub90950-01484¥380
main90950-01484-14i198810-199008
BLUE,TRIM8#
sub90950-01484¥380

9 parts on this diagram · 1 diagram in section
