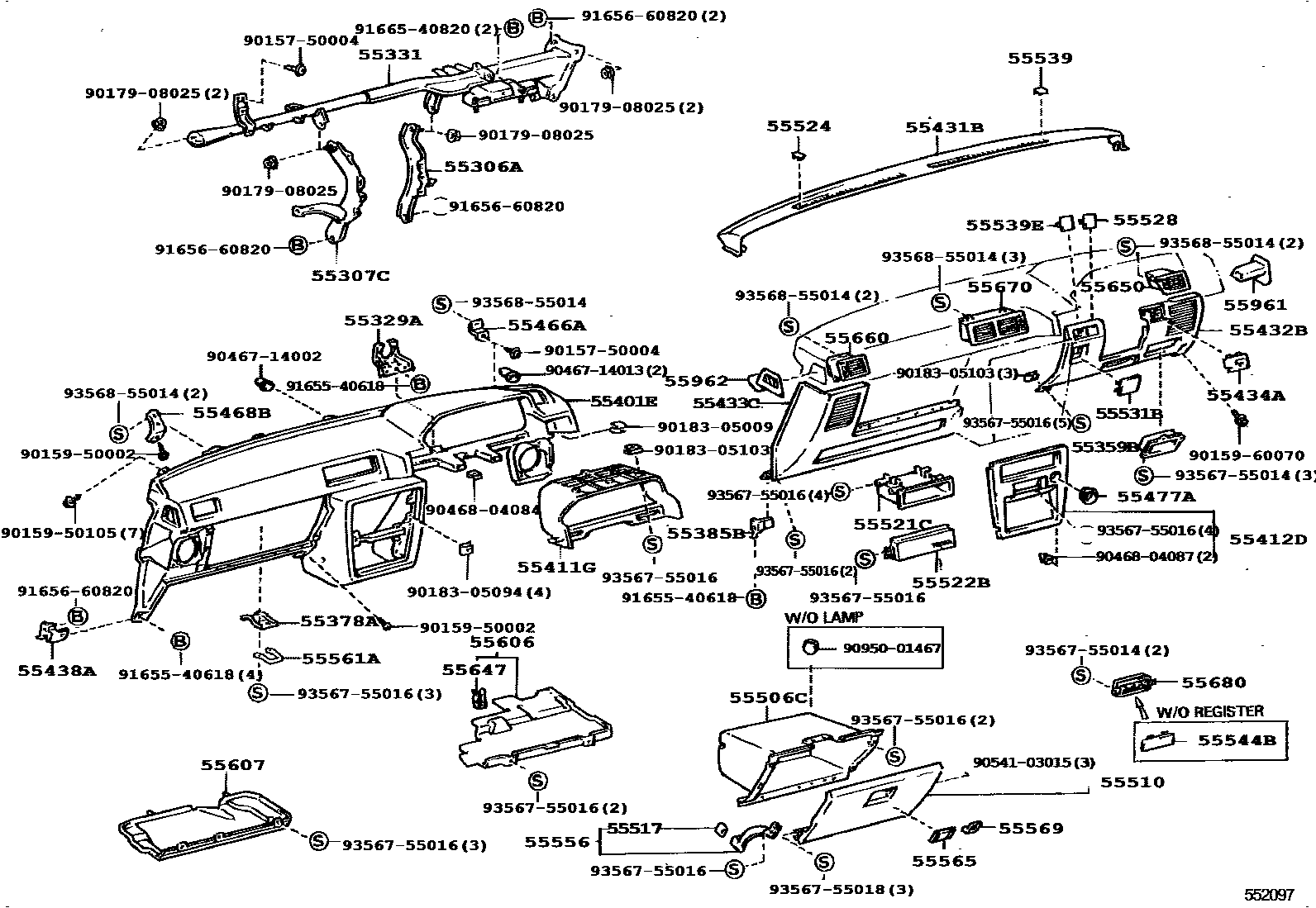

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-22120iGX71,MX75,RX7#,YX72..RHD198810-199302

main55306-22140iRX72..LHD198810-199302

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-22170iGX71,MX75,RX7#,YX72..RHD198810-199302

main55307-22190iRX72..LHD198810-199302

55329ABRACKET, INSTRUMENT PANEL METER

main55329-22030iMX75..GL;GX71,RX7#,YX72198810-199302

main55329-22040iMX75..GLX198812-199205

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-22050iGX71,MX75,RX7#,YX72..RHD198810-199302

main55330-22071iRX72..LHD198810-199302

55359BBOX, INSTRUMENT PANEL, CENTER

main55359-22020iGX71,MX75,RX7#,YX72..RHD198810-199302

main55359-22030iRX72..LHD198810-199302

55378ABRACKET, GLOVE COMPARTMENT DOOR LOCK MOUNTING

main55378-22010iGX71,MX75,RX7#,YX72198810-199302

55385BBRACKET, FINISH PANEL MOUNTING, NO.5

main55385-22020iGX71,MX75,RX7#,YX72..RHD198810-199302

main55385-22030iRX72..LHD198810-199302

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-22210-03iGX71,MX75,RX7#,YX72..SA198812-199009

COOL GRAY,TRIM1#

sub55401-22210

main55401-22210-06iGX71,MX75,RX7#,YX72..RHD198810-199302

SABLE,TRIM4#

sub55401-22210

main55401-22210-13iGX71,MX75,RX7#,YX72..RHD199008-199302

MEDIUM GRAY,TRIM1#

sub55401-22210

main55401-22210-14iRX72..RHD..GEN198810-199008

BLUE,TRIM8#

sub55401-22210

main55401-22210-32iRX72..RHD..GEN198810-199302

NEW MAROON,TRIM3#

sub55401-22210

main55401-22230-06iRX72..LHD198810-199302

SABLE,TRIM4#

sub55401-22230

main55401-22230-13iRX72..LHD199008-199302

MEDIUM GRAY,TRIM1#

sub55401-22230

main55401-22230-14iRX72..LHD198810-199008

BLUE,TRIM8#

sub55401-22230

main55401-22230-32iRX72..LHD198810-199302

NEW MAROON,TRIM3#

sub55401-22230

55411GPANEL, INSTRUMENT CLUSTER FINISH, NO.1

main55411-22250iGX71,MX75,RX7#,YX72..RHD198810-199302

main55411-22270iRX72..LHD198810-199302

55412DPANEL, INSTRUMENT CLUSTER FINISH, CENTER

main55410-22140iGX71,MX75..GLX198812-199205

main55410-22220iMX75,RX7#,YX72..(GL,STD,XL)..SA198812-199205

main55412-22210iRX72..RHD..GEN198810-199302

main55412-22220iRX72..LHD198810-199302

55431BPANEL, INSTRUMENT PANEL FINISH, UPPER

main55431-22030-03iGX71,MX75,RX7#,YX72..SA198812-199009

COOL GRAY,TRIM1#

sub55431-22030

main55431-22030-06iGX71,MX75,RX7#,YX72..RHD198810-199302

SABLE,TRIM4#

sub55431-22030

main55431-22030-12iRX72..RHD..GEN198810-199302

NEW MAROON,TRIM3#

sub55431-22030

main55431-22030-13iRX72..RHD..GEN199008-199302

MEDIUM GRAY,TRIM1#

sub55431-22030

main55431-22030-14iRX72..RHD..GEN198810-199008

BLUE,TRIM8#

sub55431-22030

main55431-22040-06iRX72..LHD198810-199302

SABLE,TRIM4#

sub55431-22040

main55431-22040-12iRX72..LHD198810-199302

NEW MAROON,TRIM3#

sub55431-22040

main55431-22040-13iRX72..LHD199008-199302

MEDIUM GRAY,TRIM1#

sub55431-22040

main55431-22040-14iRX72..LHD198810-199008

BLUE,TRIM8#

sub55431-22040

main55431-22090-B0iGX71,MX75,RX7#,YX72..SA199111-199205

MEDIUM GRAY,TRIM1#

sub55431-22030

main55431-22090-E0iGX71,MX75,RX7#,YX72..SA199111-199205

SABLE,TRIM4#

sub55431-22030

55432BPANEL, INSTRUMENT PANEL FINISH, LOWER

main55432-22120-03iMX75,RX7#,YX72..(GL,STD,XL)..SA198812-199009

COOL GRAY,TRIM1#

sub55432-22170

sub55432-22130

main55432-22120-06iMX75,RX7#,YX72..RHD..(GL,STD,XL)198810-199302

SABLE,TRIM4#

sub55432-22170

sub55432-22130

main55432-22120-12iRX72..RHD..GEN198810-199302

NEW MAROON,TRIM3#

sub55432-22170

sub55432-22130

main55432-22120-13iRX72..RHD..GEN199008-199302

MEDIUM GRAY,TRIM1#

sub55432-22170

sub55432-22130

main55432-22120-14iRX72..RHD..GEN198810-199008

BLUE,TRIM8#

sub55432-22170

sub55432-22130

main55432-22170-03iGX71,MX75..GLX198812-199009

COOL GRAY,TRIM1#

sub55432-22170

main55432-22170-06iGX71,MX75..GLX198812-199205

SABLE,TRIM4#

sub55432-22170

main55432-22170-13iGX71,MX75..GLX199009-199205

MEDIUM GRAY,TRIM1#

sub55432-22170

55433CPANEL, INSTRUMENT PANEL FINISH, LOWER LH

main55433-22020-03iMX75,RX7#,YX72..(GL,STD,XL)..SA198812-199009

COOL GRAY,TRIM1#

sub55433-22020

sub55433-22070

main55433-22020-06iMX75,RX7#,YX72..RHD..(GL,STD,XL)198810-199302

SABLE,TRIM4#

sub55433-22020

sub55433-22070

main55433-22020-12iRX72..RHD..GEN198810-199302

NEW MAROON,TRIM3#

sub55433-22020

sub55433-22070

main55433-22020-13iRX72..RHD..GEN199008-199302

MEDIUM GRAY,TRIM1#

sub55433-22020

sub55433-22070

main55433-22020-14iRX72..RHD..GEN198810-199008

BLUE,TRIM8#

sub55433-22020

sub55433-22070

main55433-22070-03iGX71,MX75..GLX198812-199009

COOL GRAY,TRIM1#

sub55433-22070

main55433-22070-06iGX71,MX75..GLX198812-199205

SABLE,TRIM4#

sub55433-22070

main55433-22070-13iGX71,MX75..GLX199009-199205

MEDIUM GRAY,TRIM1#

sub55433-22070

55434APANEL, INSTRUMENT FINISH, LOWER SUB

main55434-22050-03iGX71,MX75,RX7#,YX72..SA198812-199009

COOL GRAY,TRIM1#

sub55434-22050

main55434-22050-06iGX71,MX75,RX7#,YX72..RHD198810-199302

SABLE,TRIM4#

sub55434-22050

main55434-22050-12iRX72..RHD..GEN198810-199302

NEW MAROON,TRIM3#

sub55434-22050

main55434-22050-13iGX71,MX75,RX7#,YX72..RHD199008-199302

MEDIUM GRAY,TRIM1#

sub55434-22050

main55434-22050-14iRX72..RHD..GEN198810-199008

BLUE,TRIM8#

sub55434-22050

55438ARETAINER, INSTRUMENT PANEL FINISH PANEL, NO.2

main55438-22010iRX72..GEN,V198810-199302

RH

main55438-22020iGX71,MX75,RX7#,YX72198810-199302

LH

main55438-22030iRX72..RHD..GEN199008-199302

LH

55466ARETAINER, INSTRUMENT PANEL SAFETY PAD

main55466-22030iGX71,MX75,RX7#,YX72198810-199302

55468BRETAINER, INSTRUMENT PANEL SAFETY PAD, NO.3

main55468-22030iGX71,MX75,RX7#,YX72..RHD198810-199302

main55468-22040iRX72..LHD198810-199302

55477ABEZEL, CIGARETTE LIGHTER HOLE

main55477-22040iGX71,MX75,RX7#,YX72198810-199302

55506CCOMPARTMENT SUB-ASSY, GLOVE

main55506-22060iGX71,MX75,RX7#,YX72..RHD198810-199302

55510DOOR ASSY, GLOVE COMPARTMENT

main55550-22070-03iGX71,MX75,RX7#,YX72..SA198812-199009

COOL GRAY,TRIM1#

sub55550-22070

main55550-22070-06iGX71,MX75,RX7#,YX72..RHD198810-199302

SABLE,TRIM4#

sub55550-22070

main55550-22070-12iRX72..RHD..GEN198810-199302

NEW MAROON,TRIM3#

sub55550-22070

main55550-22070-13iGX71,MX75,RX7#,YX72..RHD199008-199302

MEDIUM GRAY,TRIM1#

sub55550-22070

main55550-22070-14iRX72..RHD..GEN198810-199008

BLUE,TRIM8#

sub55550-22070

main55550-22090-06iRX72..LHD198810-199302

SABLE,TRIM4#

sub55550-22090

main55550-22090-12iRX72..LHD198810-199302

NEW MAROON,TRIM3#

sub55550-22090

main55550-22090-13iRX72..LHD199008-199302

MEDIUM GRAY,TRIM1#

sub55550-22090

main55550-22090-14iRX72..LHD198810-199008

BLUE,TRIM8#

sub55550-22090

55517STOPPER, GLOVE COMPARTMENT DOOR ARM

main55517-14010iGX71,MX75,RX7#,YX72198810-199302

55521CCOVER, STEREO OPENING

main55521-14050-01iRX72..XL..(GEN,V)198810-199008

BLACK,TRIM3#,4#,8#

sub55521-14050

main55521-14050-01iRX72..XL..(GEN,V)199008-199302

BLACK,TRIM1#,3#,4#

sub55521-14050

55522BCOVER, RADIO TUNER OPENING

main55522-14070iMX75,RX7#,YX72..(GL,STD,XL)..SA198812-199205

main55522-32010iRX72..GEN198810-199302

sub55522-20070

55524COVER, SWITCH BACE HOLE

main55524-22050-03iMX75,RX7#,YX72..(GL,STD,XL)..SA198812-199009

COOL GRAY,TRIM1#

sub55524-22050

main55524-22050-06iMX75,RX7#,YX72..GL,STD,XL198810-199302

SABLE,TRIM4#

sub55524-22050

main55524-22050-12iRX72..GEN,V198810-199302

NEW MAROON,TRIM3#

sub55524-22050

main55524-22050-13iRX72..GEN,V199008-199302

MEDIUM GRAY,TRIM1#

sub55524-22050

main55524-22050-14iRX72..GEN,V198810-199008

BLUE,TRIM8#

sub55524-22050

55528COVER, AUTO DRIVE OPENING

main55528-22020iMX75..GL;GX71,RX7#,YX72198810-199302

55531BCOVER, CHOKE KNOB HOLE

main55531-22100-03iGX71,MX75,RX7#,YX72..SA198812-199009

COOL GRAY,TRIM1#

sub55531-22100

main55531-22100-06iGX71,MX75,RX7#,YX72..RHD198810-199302

SABLE,TRIM4#

sub55531-22100

main55531-22100-12iRX72..RHD..GEN198810-199302

NEW MAROON,TRIM3#

sub55531-22100

main55531-22100-13iRX72..RHD..GEN199008-199302

MEDIUM GRAY,TRIM1#

sub55531-22100

main55531-22100-14iRX72..RHD..GEN198810-199008

BLUE,TRIM8#

sub55531-22100

55539COVER, SPARE SWITCH HOLE

main55539-22020-06iRX72..LHD198810-199302

SABLE,TRIM4#

sub55539-22020

main55539-22020-12iRX72..LHD198810-199302

NEW MAROON,TRIM3#

sub55539-22020

main55539-22020-13iRX72..LHD199008-199302

MEDIUM GRAY,TRIM1#

sub55539-22020

main55539-22020-14iRX72..LHD198810-199008

BLUE,TRIM8#

sub55539-22020

main55539-22070-03iGX71,MX75,RX7#,YX72..SA198812-199009

COOL GRAY,TRIM1#

sub55539-22070

main55539-22070-06iGX71,MX75,RX7#,YX72..RHD198810-199302

SABLE,TRIM4#

sub55539-22070

main55539-22070-12iRX72..RHD..GEN198810-199302

NEW MAROON,TRIM3#

sub55539-22070

main55539-22070-13iRX72..RHD..GEN199008-199302

MEDIUM GRAY,TRIM1#

sub55539-22070

main55539-22070-14iRX72..RHD..GEN198810-199008

BLUE,TRIM8#

sub55539-22070

55539ECOVER, SPARE SWITCH HOLE

main55528-22020iRX72..GEN,V198810-199302

55544BCOVER, INSTRUMENT PANEL LOWER REGISTER HOLE

main55544-32010-16iRX72..XL;MX75,RX73,YX72..GL,STD,XL198810-199302

SABLE,TRIM4#

sub55544-32010

main55544-32010-22iRX72..XL..(GEN,V)198810-199302

NEW MAROON,TRIM3#

sub55544-32010

main55544-32010-23iMX75,RX7#,YX72..(GL,STD,XL)..SA198812-199009

COOL GRAY,TRIM1#

sub55544-32010

main55544-32010-33iRX72..XL..(GEN,V)199008-199302

MEDIUM GRAY,TRIM1#

sub55544-32010

main55544-32010-34iRX72..XL..(GEN,V)198810-199008

BLUE,TRIM8#

sub55544-32010

55556ARM, GLOVE COMPARTMENT DOOR CHECK

main55556-22060iGX71,MX75,RX7#,YX72198810-199302

55561ASTRIKER, GLOVE COMPARTMENT DOOR LOCK

main55561-22020iGX71,MX75,RX7#,YX72198810-199302

55565HANDLE, GLOVE COMPARTMENT DOOR LOCK

main55565-22010-03iGX71,MX75,RX7#,YX72..SA198812-199009

COOL GRAY,TRIM1#

sub55565-22010

main55565-22010-13iGX71,MX75,RX7#,YX72199008-199302

MEDIUM GRAY,TRIM1#

sub55565-22010

main55565-22010-16iGX71,MX75,RX7#,YX72198810-199302

SABLE,TRIM4#

sub55565-22010

main55565-22010-22iRX72..GEN,V198810-199302

NEW MAROON,TRIM3#

sub55565-22010

main55565-22010-24iRX72..GEN,V198810-199008

BLUE,TRIM8#

sub55565-22010

55569COVER, GLOVE COMPARTMENT DOOR LOCK

main55569-22020-03iGX71,MX75,RX7#,YX72..SA198812-199009

COOL GRAY,TRIM1#

sub55569-22020

main55569-22020-13iGX71,MX75,RX7#,YX72199008-199302

MEDIUM GRAY,TRIM1#

sub55569-22020

main55569-22020-16iGX71,MX75,RX7#,YX72198810-199302

SABLE,TRIM4#

sub55569-22020

main55569-22020-22iRX72..GEN,V198810-199302

NEW MAROON,TRIM3#

sub55569-22020

main55569-22020-24iRX72..GEN,V198810-199008

BLUE,TRIM8#

sub55569-22020

55606COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1

main55606-22090iGX71,MX75,RX7#,YX72..RHD198810-199302

main55606-22100iRX72..LHD198810-199302

55607COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2

main55607-22040iGX71,MX75,RX7#,YX72..RHD198810-199302

main55607-22050iRX72..LHD198810-199302

55647CLAMP, INSTRUMENT PANEL UNDER COVER

main55647-22010iGX71,MX75,RX7#,YX72198810-199302

55650REGISTER ASSY, INSTRUMENT PANEL, NO.1

main55650-22060-03iGX71,MX75,RX7#,YX72..SA198812-199009

COOL GRAY,TRIM1#

sub55650-22060

main55650-22060-06iGX71,MX75,RX7#,YX72..SA198812-199205

SABLE,TRIM4#

sub55650-22060

main55650-22060-13iGX71,MX75,RX7#,YX72..SA199009-199205

MEDIUM GRAY,TRIM1#

sub55650-22060

main55650-22100-06iRX72..RHD..GEN198810-199302

SABLE,TRIM4#

sub55650-22100

main55650-22100-12iRX72..RHD..GEN198810-199302

NEW MAROON,TRIM3#

sub55650-22100

main55650-22100-13iRX72..RHD..GEN199008-199302

MEDIUM GRAY,TRIM1#

sub55650-22100

main55650-22100-14iRX72..RHD..GEN198810-199008

BLUE,TRIM8#

sub55650-22100

main55650-22110-03iRX72..LHD199008-199302

MEDIUM GRAY,TRIM1#

sub55650-22110

main55650-22110-06iRX72..LHD198810-199302

SABLE,TRIM4#

sub55650-22110

main55650-22110-12iRX72..LHD198810-199302

NEW MAROON,TRIM3#

sub55650-22110

main55650-22110-14iRX72..LHD198810-199008

BLUE,TRIM8#

sub55650-22110

55660REGISTER ASSY, INSTRUMENT PANEL, NO.2

main55660-22080-06iRX72..RHD..GEN198810-199302

SABLE,TRIM4#

sub55660-22080

main55660-22080-12iRX72..RHD..GEN198810-199302

NEW MAROON,TRIM3#

sub55660-22080

main55660-22080-13iRX72..RHD..GEN199008-199302

MEDIUM GRAY,TRIM1#

sub55660-22080

main55660-22080-14iRX72..RHD..GEN198810-199008

BLUE,TRIM8#

sub55660-22080

main55660-22090-03iGX71,MX75,RX7#,YX72..SA198812-199009

COOL GRAY,TRIM1#

sub55660-22090

main55660-22090-06iGX71,MX75,RX7#,YX72..SA198812-199205

SABLE,TRIM4#

sub55660-22090

main55660-22090-13iGX71,MX75,RX7#,YX72..SA199009-199205

MEDIUM GRAY,TRIM1#

sub55660-22090

main55660-22110-06iRX72..LHD198810-199302

SABLE,TRIM4#

sub55660-22110

main55660-22110-12iRX72..LHD198810-199302

NEW MAROON,TRIM3#

sub55660-22110

main55660-22110-13iRX72..LHD199008-199302

MEDIUM GRAY,TRIM1#

sub55660-22110

main55660-22110-14iRX72..LHD198810-199008

BLUE,TRIM8#

sub55660-22110

55670REGISTER ASSY, INSTRUMENT PANEL, NO.3

main55670-22090-02iRX72..RHD..GEN199008-199302

RED,TRIM3#

sub55670-22120

sub55670-22090

main55670-22090-06iRX72..RHD..GEN198810-199302

SABLE,TRIM4#

sub55670-22120

sub55670-22090

main55670-22090-12iRX72..RHD..GEN198810-199008

NEW MAROON,TRIM3#

sub55670-22120

sub55670-22090

main55670-22090-13iRX72..RHD..GEN199008-199302

MEDIUM GRAY,TRIM1#

sub55670-22120

sub55670-22090

main55670-22090-14iRX72..RHD..GEN198810-199008

BLUE,TRIM8#

sub55670-22120

sub55670-22090

main55670-22120-03iGX71,MX75,RX7#,YX72..SA198812-199009

COOL GRAY,TRIM1#

sub55670-22120

main55670-22120-06iGX71,MX75,RX7#,YX72..SA198812-199205

SABLE,TRIM4#

sub55670-22120

main55670-22120-13iGX71,MX75,RX7#,YX72..SA199009-199205

MEDIUM GRAY,TRIM1#

sub55670-22120

main55670-22130-06iRX72..LHD198810-199302

SABLE,TRIM4#

sub55670-22130

main55670-22130-12iRX72..LHD198810-199302

NEW MAROON,TRIM3#

sub55670-22130

main55670-22130-13iRX72..LHD199008-199302

MEDIUM GRAY,TRIM1#

sub55670-22130

main55670-22130-14iRX72..LHD198810-199008

BLUE,TRIM8#

sub55670-22130

55680REGISTER ASSY, INSTRUMENT PANEL, LOWER NO.1

main55680-32010iGX71,MX75,RX7#,YX72198810-199302

55961NOZZLE, SIDE DEFROSTER, NO.1

main55961-22040-03iGX71,MX75,RX7#,YX72..SA198812-199009

COOL GRAY,TRIM1#

sub55961-22040

main55961-22040-06iGX71,MX75,RX7#,YX72198810-199302

SABLE,TRIM4#

sub55961-22040

main55961-22040-12iRX72..GEN,V198810-199302

NEW MAROON,TRIM3#

sub55961-22040

main55961-22040-13iRX72..GEN,V199008-199302

MEDIUM GRAY,TRIM1#

sub55961-22040

main55961-22040-14iRX72..GEN,V198810-199008

BLUE,TRIM8#

sub55961-22040

55962NOZZLE, SIDE DEFROSTER, NO.2

main55962-22040-03iGX71,MX75,RX7#,YX72..SA198812-199009

COOL GRAY,TRIM1#

sub55962-22040

main55962-22040-06iGX71,MX75,RX7#,YX72198810-199302

SABLE,TRIM4#

sub55962-22040

main55962-22040-12iRX72..GEN,V198810-199302

NEW MAROON,TRIM3#

sub55962-22040

main55962-22040-13iRX72..GEN,V199008-199302

MEDIUM GRAY,TRIM1#

sub55962-22040

main55962-22040-14iRX72..GEN,V198810-199008

BLUE,TRIM8#

sub55962-22040

9015750004

main90157-50004

9015950002

main90159-50002

9015950105

main90159-50105

9015960070

main90159-60070

9017908025

main90179-08025

9018305009

main90183-05009

9018305094

main90183-05094

9018305103

main90183-05103

9046714002

main90467-14002

9046714013

main90467-14013

9046804084

main90468-04084

9046804087

main90468-04087

9054103015

main90541-03015

9095001467

main90950-01467

9165540618

main91655-40618

9165660820

main91656-60820

9166540820

main91665-40820

9356755014

main93567-55014

9356755016

main93567-55016

9356755018

main93567-55018

9356855014

main93568-55014

63 parts on this diagram · 2 diagrams in section
