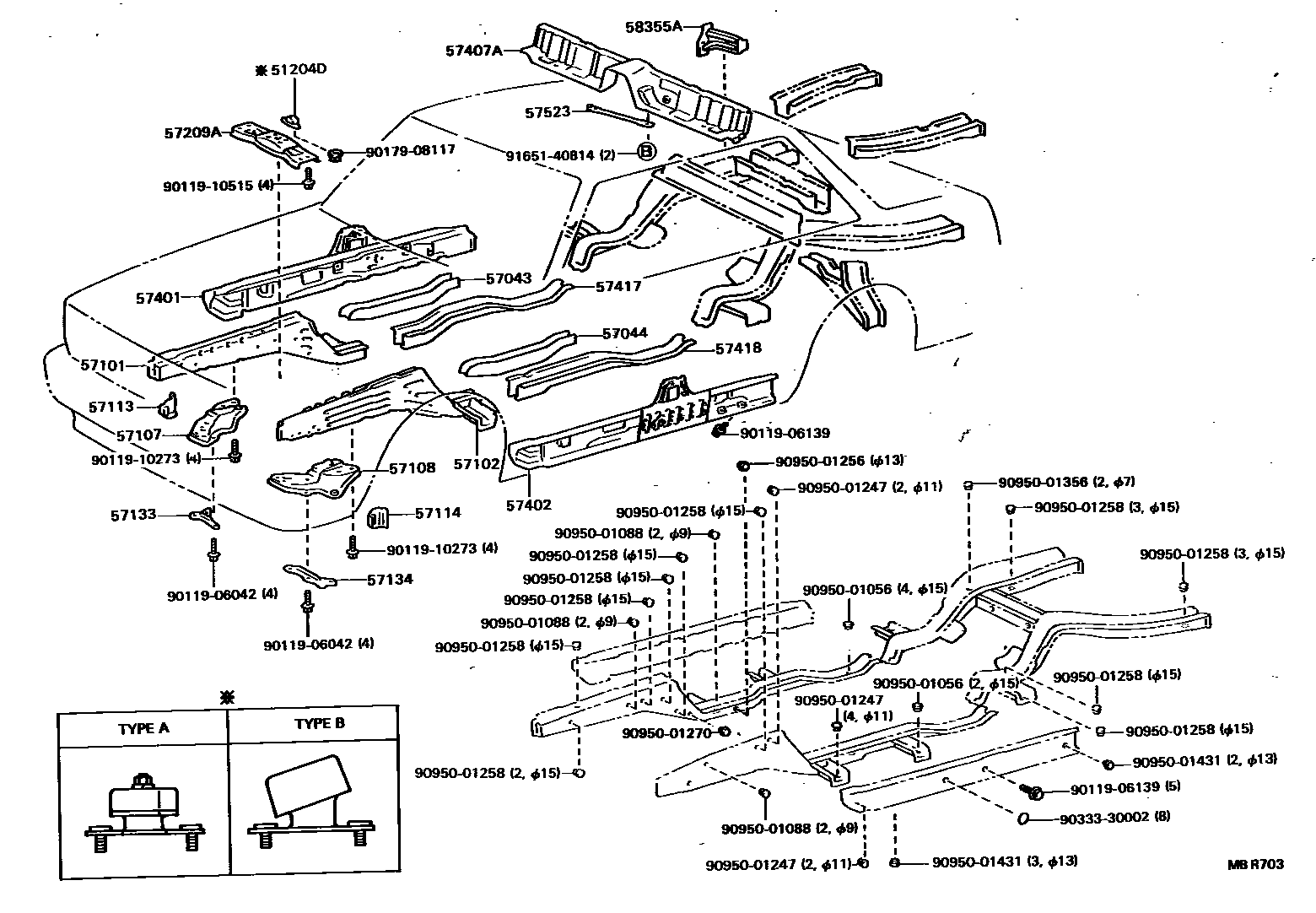

FLOOR SIDE MEMBER

0001 1 0002 1

51204DDAMPER SUB-ASSY, ENGINE REAR SUPPORT MEMBER

main51204-22100iGX71,MX75..4FC198810-199302

TYPE A

main51204-22120iGX71,MX75..4FC198812-199205

TYPE B

main51204-22130iGX71,MX75..5F198812-199205

57043REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH

main57043-22030iRX72..LHD198810-199302

57044REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH

main57044-22010iRX72..LHD198810-199302

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-22250iGX71,MX75,RX7#,YX72..RHD198810-199302

main57101-22260iRX72..V198810-199302

main57101-22270iRX72..LHD..GEN198810-199302

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-22290iGX71,MX75,RX7#,YX72..RHD198810-199302

main57102-22300iRX72..V198810-199302

main57102-22310iRX72..LHD..GEN198810-199302

57107BRACKET SUB-ASSY, STRUT BAR, RH

main57107-22070iGX71,MX75,RX7#,YX72198810-199302

57108BRACKET SUB-ASSY, STRUT BAR, LH

main57108-22140iGX71,MX75,RX7#,YX72198810-199302

57113EXTENSION, FRONT SIDE MEMBER, RH

main57113-22060iGX71,MX75,RX7#,YX72..GEN,SA198810-199302

main57113-22070iRX72..V198810-199302

57114EXTENSION, FRONT SIDE MEMBER, LH

main57114-22060iGX71,MX75,RX7#,YX72..GEN,SA198810-199302

main57114-22070iRX72..V198810-199302

57133PROTECTOR, STRUT BAR BRACKET, RH

main57133-22020iRX72..GEN199008-199302

57134PROTECTOR, STRUT BAR BRACKET, LH

main57134-22010iRX72..GEN198810-199008

57209AMEMBER SUB-ASSY, ENGINE REAR MOUNTING

main57209-22130iYX72198812-199205

main57209-22160iGX71,MX75..4FC198812-199205

main57255-22190iRX7#;GX71,MX75..5F198810-199302

57401MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH

main57401-22080iGX71,MX75,RX7#,YX72..GEN,SA198810-199302

sub57401-22170

sub61335-22040

sub61343-22913

main57401-22110iRX72..V198810-199302

sub57401-22111

sub61335-22040

sub61343-22914

57402MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH

main57402-22080iGX71,MX75,RX7#,YX72..GEN,SA198810-199302

sub57402-22170

sub61335-22040

sub61344-22913

main57402-22110iRX72..V198810-199302

sub57402-22111

sub61335-22040

sub61344-22914

57407AMEMBER SUB-ASSY, CENTER FLOOR CROSS

main57407-23010iRX72198810-199302

57417REINFORCEMENT, FRONT FLOOR UNDER, RH

main57417-22050iGX71,MX75,RX7#,YX72198810-199302

57418REINFORCEMENT, FRONT FLOOR UNDER, LH

main57418-22050iGX71,MX75,RX7#,YX72198810-199302

57523BRACE, CENTER FLOOR CROSSMEMBER

main57523-22010iGX71,MX75,RX73198812-199205

58355AREINFORCEMENT, FLOOR SIDE PLATE, RH

main58355-22030iGX71,MX75,RX73,YX72198812-199205

9011906042

main90119-06042

9011906139

main90119-06139

9011910273

main90119-10273

9011910515

main90119-10515

9017908117

main90179-08117

9033330002

main90333-30002

9095001056

main90950-01056

9095001088

main90950-01088

9095001247

main90950-01247

9095001256

main90950-01256

9095001258

main90950-01258

9095001270

main90950-01270

9095001356

main90950-01356

9095001431

main90950-01431

9165140814

main91651-40814

34 parts on this diagram · 2 diagrams in section
