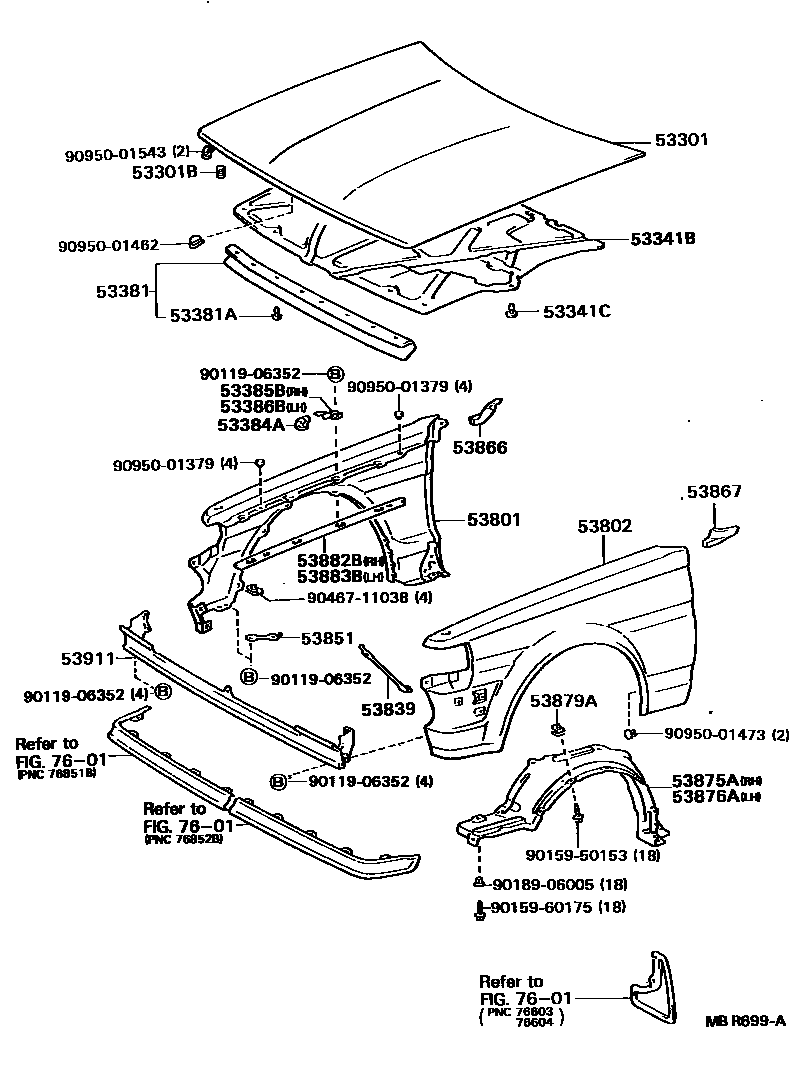

HOOD & FRONT FENDER
53301BCUSHION, HOOD BUMPER
L=29
L=26
53341CCLIP(FOR HOOD INSULATOR)
53381SEAL, HOOD TO RADIATOR SUPPORT
53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)
53384ABUMPER, FENDER TO HOOD
53385BBRACKET, FENDER TO HOOD BUMPER, RH
53386BBRACKET, FENDER TO HOOD BUMPER, LH
53801FENDER SUB-ASSY, FRONT RH
53802FENDER SUB-ASSY, FRONT LH
53839BRACE, FRONT FENDER, LH
53851BRACE, FRONT FENDER TO RADIATOR SUPPORT, RH
53866SEAL, FRONT FENDER TO COWL SIDE, RH
53867SEAL, FRONT FENDER TO COWL SIDE, LH
53875ALINER, FRONT FENDER, RH
53876ALINER, FRONT FENDER, LH
53879ARETAINER, FRONT FENDER LINER
53882BSEAL, FRONT FENDER, RH
53883BSEAL, FRONT FENDER, LH
53911PANEL, FRONT VALANCE
7601
9011906352
main90119-06352
9015950153
main90159-50153
9015960175
main90159-60175
9018906005
main90189-06005
9046711038
main90467-11038
9095001379
main90950-01379
9095001462
main90950-01462
9095001473
main90950-01473
9095001543
main90950-01543
31 parts on this diagram · 1 diagram in section
