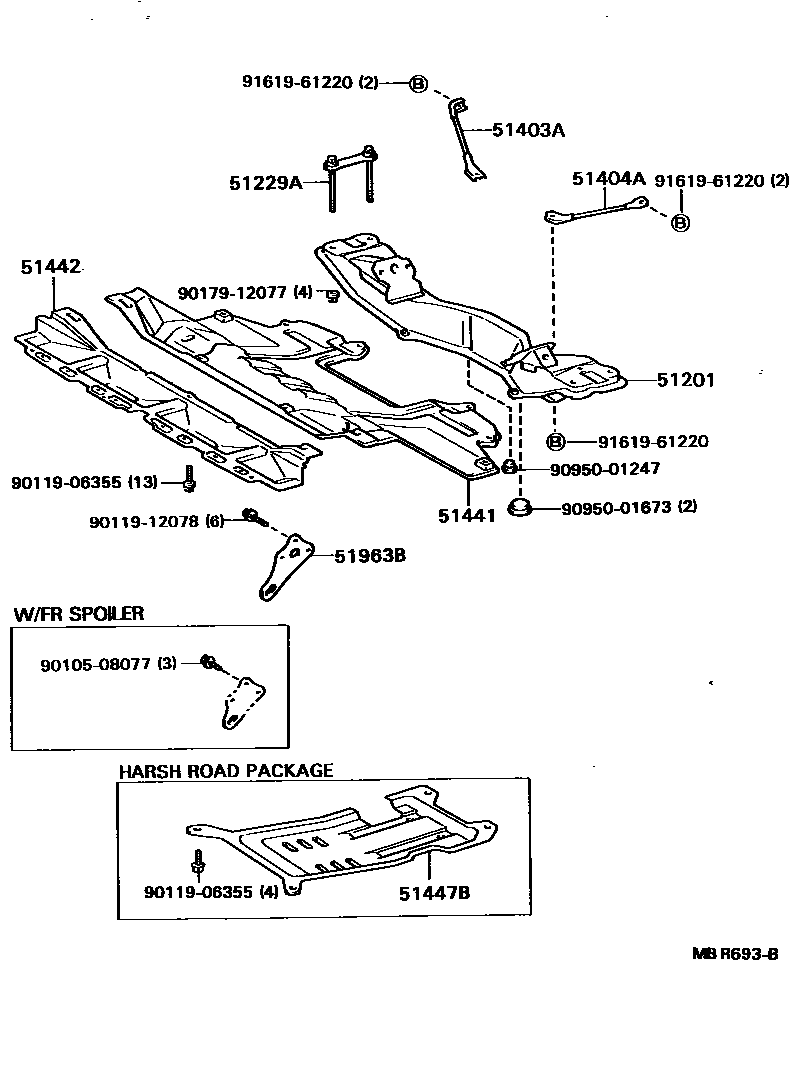

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-22321iRX7#..RHD198810-199302

main51201-22351iRX72..LHD198810-199302

main51201-22371iYX72198812-199205

main51201-22530iGX71198812-199205

51229ABOLT, FRONT SUSPENSION MEMBER MOUNTING

main51229-22040iGX71,MX75,RX7#,YX72198810-199302

51403ABRACE SUB-ASSY, FRONT SUSPENSION MEMBER, RH

main51403-22010iRX72..LHD198810-199302

51404ABRACE SUB-ASSY, FRONT SUSPENSION MEMBER, LH

main51404-22010iRX72..LHD198810-199302

51441COVER, ENGINE UNDER, NO.1

main51441-22140iGX71,MX75,YX72198812-199205

main51441-22150iRX7#198810-199302

51442COVER, ENGINE UNDER, NO.2

main51442-22040iGX71,MX75,RX7#,YX72198810-199302

51447BPROTECTOR, OIL PAN

main51447-22020iRX72..GEN198810-199302

51963BHOOK, TRANSPORT, FRONT RH

main51963-22040iGX71,MX75,RX7#,YX72..GEN,SA198810-199302

main51963-22050iRX72..V198810-199302

9010508077

main90105-08077

9011906355

main90119-06355

9011912078

main90119-12078

9017912077

main90179-12077

9095001247

main90950-01247

9095001673

main90950-01673

9161961220

main91619-61220

15 parts on this diagram · 2 diagrams in section
