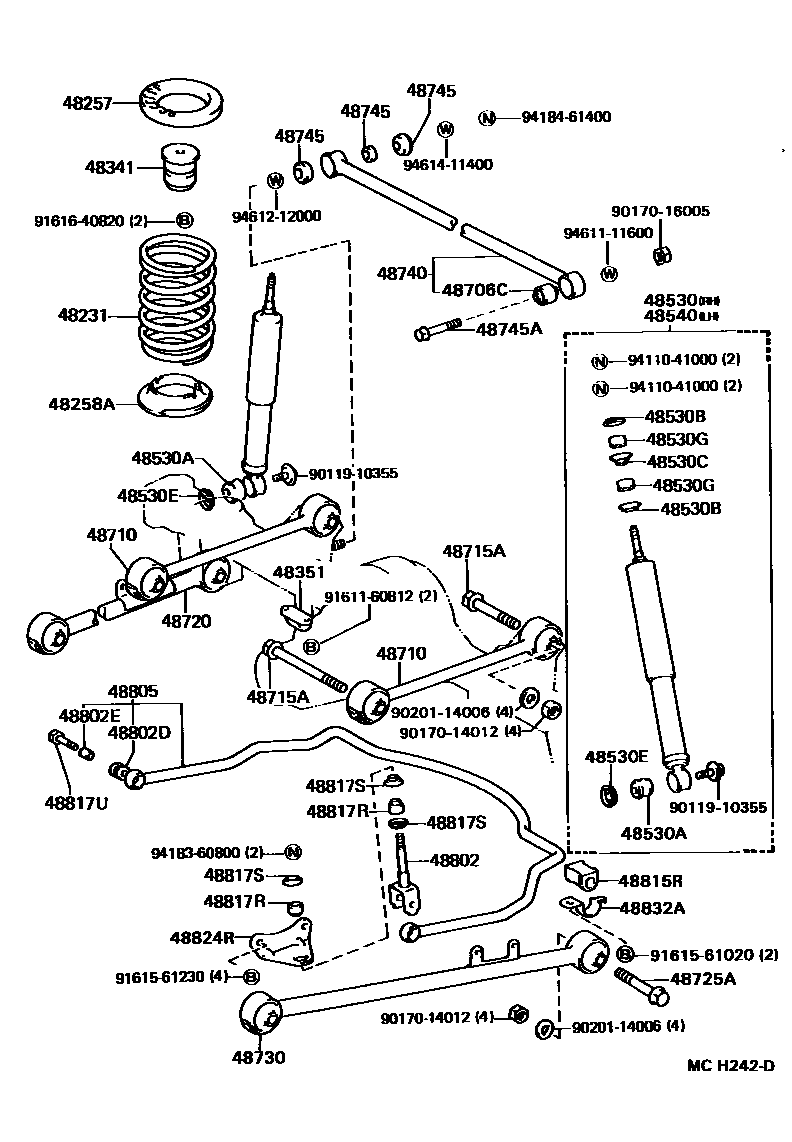

REAR SPRING & SHOCK ABSORBER

0001 1 0002 1

48231SPRING, COIL, REAR

main48231-22710×2iYX72198812-199205

main48231-22760×2iRX73198812-199205

main48231-22770×2iGX71198812-199205

main48231-22870×2iMX75198812-199205

main48231-23130×2iRX72..GEN199008-199302

HARSH ROAD PACKAGE 1 OR HARSH ROAD PACKAGE 2

main48231-23150×2iRX72..GEN,SA198810-199302

main48231-23190×2iRX72..V198810-199008

HARSH ROAD PACKAGE 1

48257INSULATOR, REAR COIL SPRING

main48257-22020×2iYX72198812-199205

main48257-22030×2iGX71,MX75,RX73198812-199205

main48257-23010×2iRX72198810-199302

48258AINSULATOR, REAR COIL SPRING, LOWER

main48258-22010×2iYX72198812-199205

sub48258-14030

main48258-22041iGX71,MX75,RX73198812-199205

RH

main48258-22050iGX71,MX75,RX73198812-199205

LH

main48258-30010×2iRX72198810-199302

48341BUMPER, REAR SPRING

main48306-14030×2iRX72198810-199302

main48341-22080×2iYX72198812-199205

main48341-24010×2iGX71,MX75,RX73198812-199205

48351BUMPER, DIFFERENTIAL CARRIER

main48351-12020iYX72198812-199205

main48351-20020iRX72198810-199302

48530ABSORBER ASSY, SHOCK, REAR RH

main48531-80325iYX72198812-199205

sub48531-80185

main48531-80345iMX75,RX73198812-199205

sub48531-80189

main48531-80360iGX71198812-199205

sub48531-80192

main48531-80365iRX72198810-199302

MARK 48531-23180

sub48531-80193

48530ABUSH(FOR REAR SHOCK ABSORBER)

main90385-16004×2iGX71,MX75,RX7#,YX72198810-199302

48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1

main90948-02002×2iRX72..GEN,V199008-199302

T=2.3,LWR

main90948-02045×2iRX72198810-199008

UPR

48530CWASHER, REAR SHOCK ABSORBER CUSHION, NO.2

main90948-02075×2iGX71,MX75,RX7#,YX72198810-199302

48530EWASHER, REAR SHOCK ABSORBER CUSHION, NO.4

main90948-03004×2iGX71,MX75,RX7#,YX72198810-199302

48530GCUSHION, REAR SHOCK ABSORBER, NO.1

main90540-10004×2iGX71,MX75,RX7#,YX72198810-199302

LWR

main90540-10005×2iRX72198810-199302

UPR

main90948-01003×2iGX71,MX75,RX73,YX72198812-199205

UPR

48540ABSORBER ASSY, SHOCK, REAR LH

main48531-80325iYX72198812-199205

sub48531-80185

main48531-80345iMX75,RX73198812-199205

sub48531-80189

main48531-80360iGX71198812-199205

sub48531-80192

main48531-80365iRX72198810-199302

MARK 48531-23180

sub48531-80193

48706CBUSH SUB-ASSY, LATERAL CONTROL ROD

main48706-22030iYX72198812-199205

main48706-23010iRX72198810-199302

48710ARM ASSY, UPPER CONTROL

main48710-23070×2iRX72..GEN,SA199011-199302

main48710-23090×2iRX72..V199011-199302

48715ABOLT, HEXAGON(FOR UPPER CONTROL ARM)

main90105-14009×2iRX72198810-199302

BODY SIDE

main90105-14027×2iRX72198810-199302

AXLE HOUSING SIDE

main90105-14029×2iYX72198812-199205

AXLE HOUSING SIDE

48720ARM ASSY, LOWER CONTROL, RH

main48720-22190iYX72198812-199205

main48720-23060iRX72..GEN,SA199011-199302

main48720-23080iRX72..V199011-199302

48725BUSH, LOWER CONTROL ARM

main48725-22051×2iGX71,MX75,RX73198812-199205

OUTER

main48725-22061×2iGX71,MX75,RX73198812-199205

INNER

48725ABOLT(FOR LOWER CONTROL ARM)

main90105-14027×4iRX72198810-199302

main90105-14028×4iYX72198812-199205

48730ARM ASSY, LOWER CONTROL, LH

main48720-22190iYX72198812-199205

main48720-23060iRX72..GEN,SA199011-199302

main48720-23080iRX72..V199011-199302

48740ROD ASSY, REAR LATERAL CONTROL

main48740-22060iYX72198812-199205

main48740-23020iRX72198810-199302

48745BUSH, LATERAL CONTROL ROD

main90385-20001×2iRX72,YX72198810-199302

L=15

main90386-20001iRX72,YX72198810-199302

L=12

48745ABOLT, HEXAGON(FOR LATERAL CONTROL ROD)

main90105-16006iYX72198812-199205

main90106-12002iRX72198810-199302

48802LINK SUB-ASSY, STABILIZER

main48802-12010×2iRX72198810-199302

48802DBUSH, STABILIZER LINK

main90385-11021×2iRX72198810-199302

48802ESPACER(FOR REAR STABILIZER BAR)

main90560-10275×2iRX72198810-199302

48805BAR SUB-ASSY, REAR STABILIZER

main48805-23010iRX72198810-199302

48815RBUSH, STABILIZER(FOR REAR)

main48815-12110×2iRX72198810-199302

main48815-22090×2iGX71,MX75,RX73198812-199205

48817RCUSHION, STABILIZER(FOR REAR)

main48817-12010×8iGX71,MX75,RX73198812-199205

48817SRETAINER, CUSHION, NO.1(FOR STABILIZER REAR BAR)

main90948-02024×4iRX72..GEN,V199008-199302

T=1.0

main90948-02025×2iGX71,MX75,RX7#198810-199008

T=1.2

48817UBOLT(FOR REAR STABILIZER)

main90101-08095×2iGX71,MX75,RX73198812-199205

main91111-41040×2iRX72198810-199210

sub91111-51040

48824RBRACKET, STABILIZER(FOR REAR)

main48825-22020×2iRX72198810-199302

48832ABRACKET, REAR STABILIZER BAR, NO.1

main48832-22030×2iGX71,MX75,RX7#198810-199302

9011910355

main90119-10355

9017014012

main90170-14012

9017016005

main90170-16005

9020114006

main90201-14006

9161160812

main91611-60812

9161561020

main91615-61020

9161561230

main91615-61230

9161640820

main91616-40820

9411041000

main94110-41000

9418360800

main94183-60800

9418461400

main94184-61400

9461111600

main94611-11600

9461212000

main94612-12000

9461411400

main94614-11400

46 parts on this diagram · 2 diagrams in section
