FRONT SPRING & SHOCK ABSORBER

48021SHELL SUB-ASSY, W/STEERING KNUCKLE, RH

main48021-22200iGX71,MX75,RX7#,YX72198810-199302

sub48021-22201

48029SHELL SUB-ASSY, W/STEERING KNUCKLE, LH

main48029-22200iGX71,MX75,RX7#,YX72198810-199302

sub48029-22201

48131SPRING, FRONT COIL, RH

main48131-2A220iGX71,RX73198812-199205

main48131-2A270iMX75198812-199205

main48131-2A320iRX72..LHD198810-199302

main48131-2A330iRX72..LHD..GEN198810-199008

HARSH ROAD PACKAGE 1

main48131-2A330iRX72..LHD..GEN198810-199008

HARSH ROAD PACKAGE 1 OR HARSH ROAD PACKAGE 2

main48131-2A330iRX72..SA199008-199205

main48131-2A340iRX72..RHD..GEN198810-199302

HARSH ROAD PACKAGE 1 OR HARSH ROAD PACKAGE 2

main48131-2A390iYX72198812-199205

main48131-2A820iRX72..V199008-199302

HARSH ROAD PACKAGE 1

main48131-2A820iRX72..V199008-199302

HARSH ROAD PACKAGE 1 OR HARSH ROAD PACKAGE 2

48132SPRING, FRONT COIL, LH

main48131-2A210iRX73198812-199205

main48131-2A220iGX71198812-199205

main48131-2A260iMX75198812-199205

main48131-2A320iRX72..RHD198810-199205

main48131-2A330iRX72..LHD198810-199008

HARSH ROAD PACKAGE 1 OR HARSH ROAD PACKAGE 2

main48131-2A340iRX72..V198810-199302

HARSH ROAD PACKAGE 1

main48131-2A340iRX72..V198810-199302

HARSH ROAD PACKAGE 1 OR HARSH ROAD PACKAGE 2

main48131-2A380iYX72198812-199205

main48131-2A810iRX72..RHD..GEN199008-199302

main48131-2A820iRX72..RHD..GEN199008-199302

HARSH ROAD PACKAGE 1 OR HARSH ROAD PACKAGE 2

48331BUMPER, FRONT SPRING, NO.1

main48331-14020iGX71,MX75,RX7#,YX72198810-199302

48471SEAT, FRONT SPRING, UPPER

main48044-24010iGX71,MX75,RX7#,YX72198810-199302

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-22610iRX7#198810-199302

sub48510-22621

main48510-22620iGX71,MX75,YX72198812-199205

sub48510-22621

48511ABSORBER, SHOCK FRONT, RH(FOR CARTRIDGE TYPE)

main48511-22330iRX7#198810-199302

main48511-22340iGX71,MX75,YX72198812-199205

48512ABSORBER, SHOCK FRONT, LH(FOR CARTRIDGE TYPE)

main48511-22330iRX7#198810-199302

main48511-22340iGX71,MX75,YX72198812-199205

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-22610iRX7#198810-199302

sub48520-22621

main48520-22620iGX71,MX75,YX72198812-199205

sub48520-22621

48609ASUPPORT SUB-ASSY, FRONT SUSPENSION

main48609-22070iGX71,MX75,RX7#,YX72198810-199302

48660BAR ASSY, STRUT, RH

main48660-22070iGX71,MX75,RX7#,YX72198810-199302

48670BAR ASSY, STRUT, LH

main48670-22070iGX71,MX75,RX7#,YX72198810-199302

48674ARETAINER, CUSHION(FOR STRUT BAR CUSHION)

main90948-02079iRX72..GEN,V198810-199302

FR

main90948-02079iGX71,MX75,RX7#,YX72..SA199008-199302

FR,OD=70

main90948-02080iGX71,MX75,RX7#,YX72..SA198810-199302

RR

main90948-02080iRX72..GEN,V199008-199302

RR,OD=55

48680DSEAL, DUST(FOR FRONT SUSPENSION SUPPORT)

main90303-22049iGX71,MX75,RX7#,YX72198810-199302

48684COVER, BEARING DUST

main48684-14020iGX71,MX75,RX7#,YX72198810-199302

48811BAR, STABILIZER, FRONT

main48811-22260iRX72..GEN,V198810-199302

main48811-22290iGX71,MX75,RX7#,YX72..SA198812-199205

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-22050iGX71,MX75,RX7#,YX72..SA198812-199205

main48815-22060iRX72..GEN,V198810-199302

48817CUSHION, FRONT STABILIZER

main48817-22020iGX71,MX75,RX7#,YX72198810-199302

48817ARETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)

main90948-02032iGX71,MX75,RX7#,YX72198810-199302

48817BRETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR)

main90948-02015iGX71,MX75,RX7#,YX72198810-199302

48819ABOLT, FRONT STABILIZER

main48819-24010iGX71,MX75,RX7#,YX72198810-199302

48824BRACKET, STABILIZER, FRONT

main48824-22060iGX71,MX75,RX7#,YX72198810-199302

5305

9017010022

main90170-10022

9017910132

main90179-10132

9017918007

main90179-18007

9020110074

main90201-10074

9020110287

main90201-10287

9056018006

main90560-18006

9161640825

main91616-40825

9418210800

main94182-10800

9418211400

main94182-11400

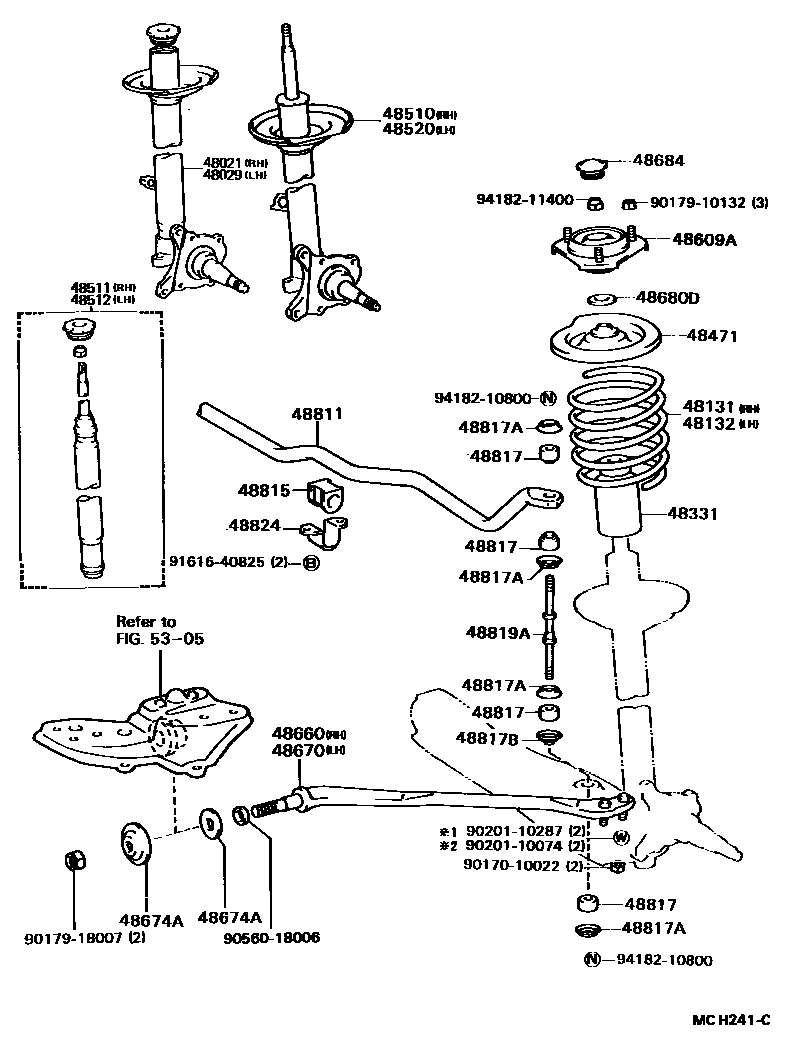

33 parts on this diagram · 1 diagram in section
