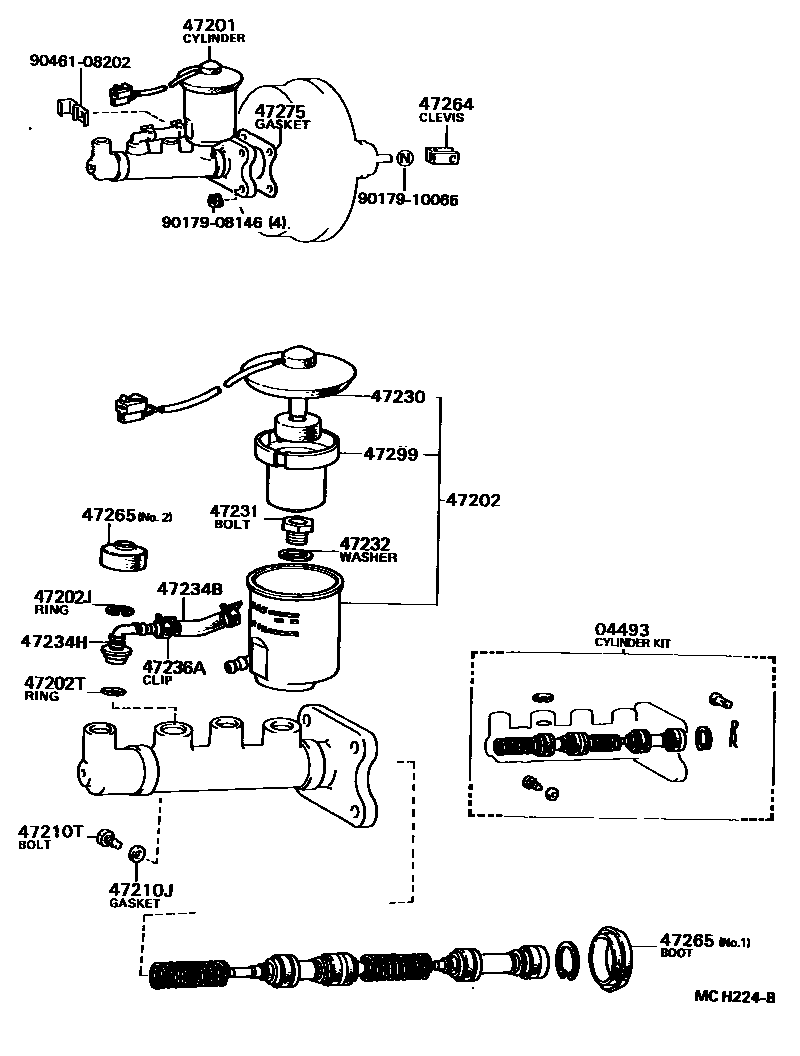

BRAKE MASTER CYLINDER

0001 1 0002 1

04493CYLINDER KIT, BRAKE MASTER

main04493-22120iGX71,MX75,RX7#,YX72198810-199302

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-22490iRX72..LHD198810-199302

main47201-22500iMX75198812-199205

main47201-22570iGX71,RX7#,YX72..RHD198810-199302

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47202-22170iMX75198812-199205

main47202-22180iRX72..LHD198810-199302

main47202-22220iGX71,RX7#,YX72..RHD198810-199302

47202JRING, SNAP(FOR BRAKE MASTER CYLINDER SIDE)

main96151-02000iGX71,MX75,RX7#,YX72198810-199302

47202TRING(FOR BRAKE MASTER CYLINDER RESERVOIR, NO.1)

main90301-14001iGX71,MX75,RX7#,YX72198810-199302

47210JGASKET(FOR MASTER CYLINDER)

main90430-06104iGX71,MX75,RX7#,YX72198810-199302

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06008iGX71,MX75,RX7#,YX72198810-199302

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main84460-20051iGX71,MX75,RX7#,YX72198810-199302

sub84460-12011

47231BOLT, BRAKE MASTER CYLINDER RESERVOIR SET

main47231-20010iRX72..LHD198810-199302

main47231-22010iGX71,MX75,RX7#,YX72..RHD198810-199302

47232WASHER, BRAKE RESERVOIR SET BOLT

main47232-30010iGX71,MX75,RX7#,YX72..RHD198810-199302

47234BTUBE, RESERVOIR, NO.1

main47234-20010iGX71,MX75,RX7#,YX72198810-199302

47234HELBOW(FOR RESERVOIR TUBE)

main90407-10003iGX71,MX75,RX7#,YX72..RHD198810-199302

sub90407-10004

main90407-10004iRX72..LHD198810-199302

47236ACLIP(FOR RESERVOIR TUBE)

main90467-16001iGX71,MX75,RX7#,YX72198810-199302

sub96134-51500

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-22010iGX71,RX7#,YX72198810-199302

main47264-30040iMX75198812-199008

main47264-50010iMX75199008-199205

47265BOOT, MASTER CYLINDER

main47265-20050iGX71,MX75,RX7#,YX72198810-199302

NO.1

main47265-20060iGX71,MX75,RX7#,YX72198810-199302

NO.2

47275GASKET, BRAKE MASTER CYLINDER

main47275-24010iGX71,MX75,RX7#,YX72198810-199302

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-22030iGX71,MX75,RX7#,YX72198810-199302

9017908146

main90179-08146

9017910065

main90179-10065

9046108202

main90461-08202

20 parts on this diagram · 2 diagrams in section
