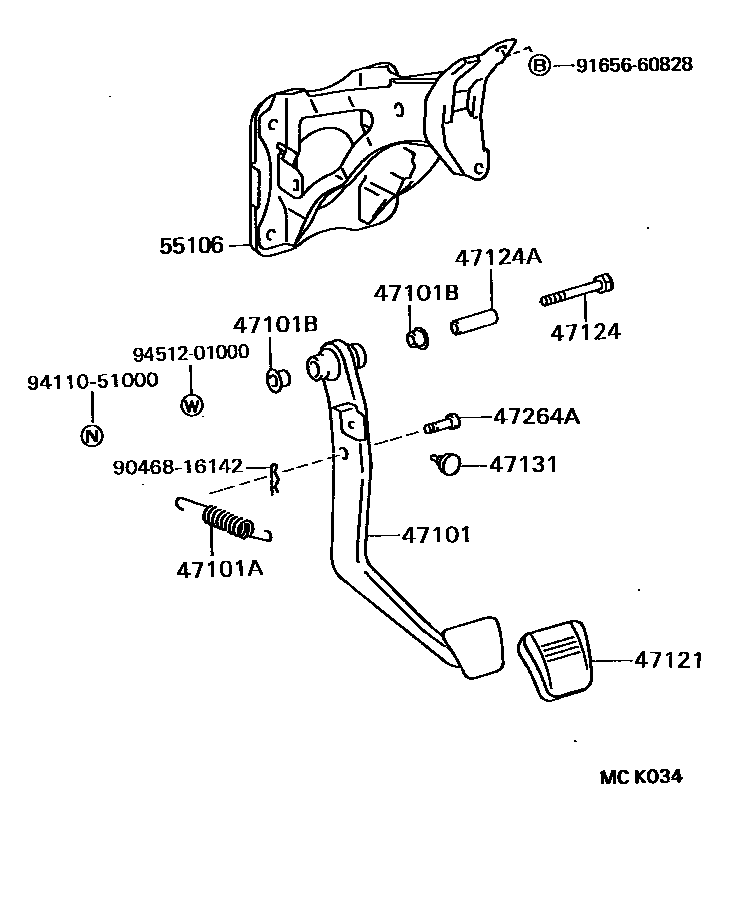

BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47101-22240iGX71,MX75,RX7#,YX72..RHD..5F198810-199302

main47101-22260iRX72..LHD..5F198810-199302

main47101-22300iGX71,MX75,RX73..4FC198812-199205

main47101-22310iRX72..4FC198810-199302

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-12011iGX71,MX75,RX7#,YX72198810-199302

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015iGX71,MX75,RX7#,YX72198810-199302

47121PAD, BRAKE PEDAL

main31321-14020iGX71,MX75,RX7#,YX72..5F198810-199302

main47121-14010iGX71,MX75,RX7#..4FC198810-199302

47124SHAFT, BRAKE PEDAL

main90101-10039iGX71,MX75,RX7#,YX72198810-199302

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10003iGX71,MX75,RX7#,YX72198810-199302

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06032iGX71,MX75,RX7#,YX72198810-199205

sub90541-06036

main90541-06036iRX72..GEN,V199008-199302

47264APIN(FOR PUSH ROD)

main90249-10064iGX71,MX75,RX7#,YX72198810-199302

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-22141iRX72..LHD198810-199302

main55106-22150iRX72..RHD..GEN198810-199302

main55106-22170iGX71,MX75,RX7#,YX72..SA198812-199205

9046816142

main90468-16142

9165660828

main91656-60828

9411051000

main94110-51000

9451201000

main94512-01000

13 parts on this diagram · 1 diagram in section
