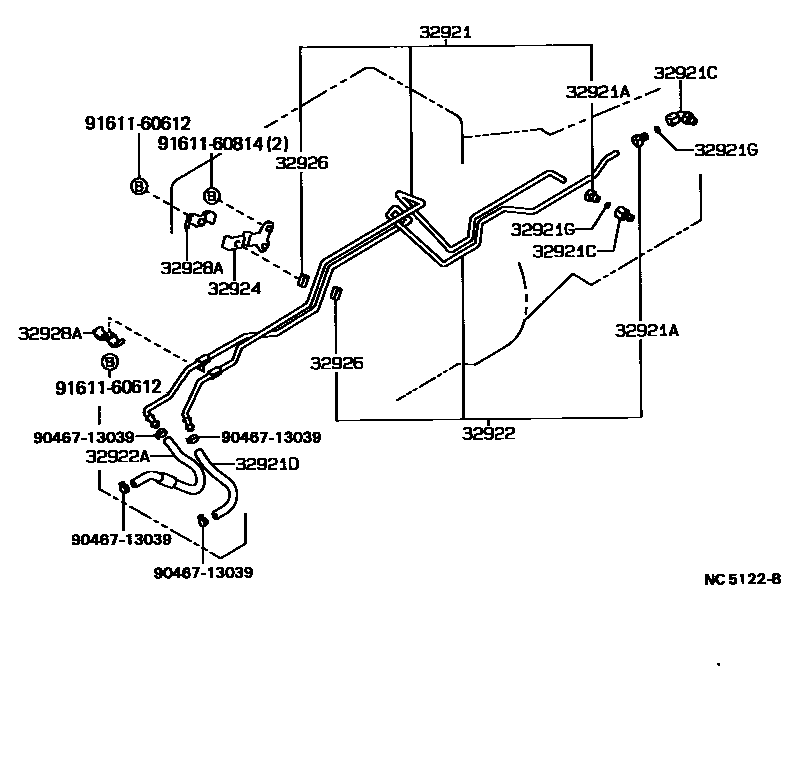

OIL COOLER & TUBE (ATM)

0001 1 0002 1 0003 1 0004 1

32921TUBE, OIL COOLER INLET, NO.1

main32921-22400iMX75..GLX198812-198907

main32921-22401iMX75..GLX198907-199205

main32921-22420iGX71..4FC198812-199205

main32921-22480iRX72..4FC198810-199302

32921ANUT, UNION(FOR OIL COOLER TUBE)

main90402-14004iGX71,RX7#..4FC198810-199302

32921CUNION(FOR OIL COOLER TUBE)

main90404-14007iGX71,RX7#..4FC198810-199302

FR

main90404-16020iMX75..GLX198812-199007

FR

sub90404-16029

main90404-16029iMX75..GLX199007-199205

FR

main90407-14003iGX71,RX7#..4FC198810-199302

RR

main90407-16009iMX75..GLX198812-199205

RR

32921DHOSE(FOR OIL COOLER INLET)

main32941-22200iMX75..GLX198812-198907

sub32941-22201

main32941-22201iMX75..GLX198907-199205

main32942-22060iRX7#..4FC198810-198907

sub32942-22061

main32942-22061iRX7#..4FC198907-199302

main90445-15042iGX71..4FC198907-199205

main90445-16026iGX71..4FC198812-198907

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-10189iGX71,RX7#..4FC198810-199302

main90301-11006iMX75..GLX198812-199205

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-22420iMX75..GLX198812-198907

main32922-22421iMX75..GLX198907-199205

main32922-22440iGX71..4FC198812-199205

main32922-22501iRX73..4FC198810-199302

32922AHOSE(FOR OIL COOLER OUTLET)

main32941-22070iRX7#..4FC198810-198907

sub32941-22071

main32941-22071iRX7#..4FC198907-199302

main32941-22110iGX71..4FC198812-198907

sub32941-22111

main32941-22111iGX71..4FC198907-199205

main32941-22180iMX75..GLX198812-198907

sub32941-22181

main32941-22181iMX75..GLX198907-199205

32924CLAMP, OIL COOLER TUBE, NO.2

main32924-22061iGX71..4FC198812-199205

main32924-30160iMX75..GLX198812-199205

32926CUSHION, OIL COOLER TUBE(ATM)

main32926-22010iGX71..4FC198810-199302

L=35,ID=8

main32926-30020iMX75..GLX198812-199205

L=35,ID=10

32928CLAMP, FLEXIBLE HOSE, NO.1

main32928-22070iRX7#..4FC198810-199302

main32928-30090iMX75..GLX198812-199205

32928ACLAMP(FOR FLEXIBLE HOSE CLAMP)

main90462-12085iGX71,RX7#..4FC198810-199302

9046713039

main90467-13039

9161160612

main91611-60612

9161160814

main91611-60814

14 parts on this diagram · 4 diagrams in section
