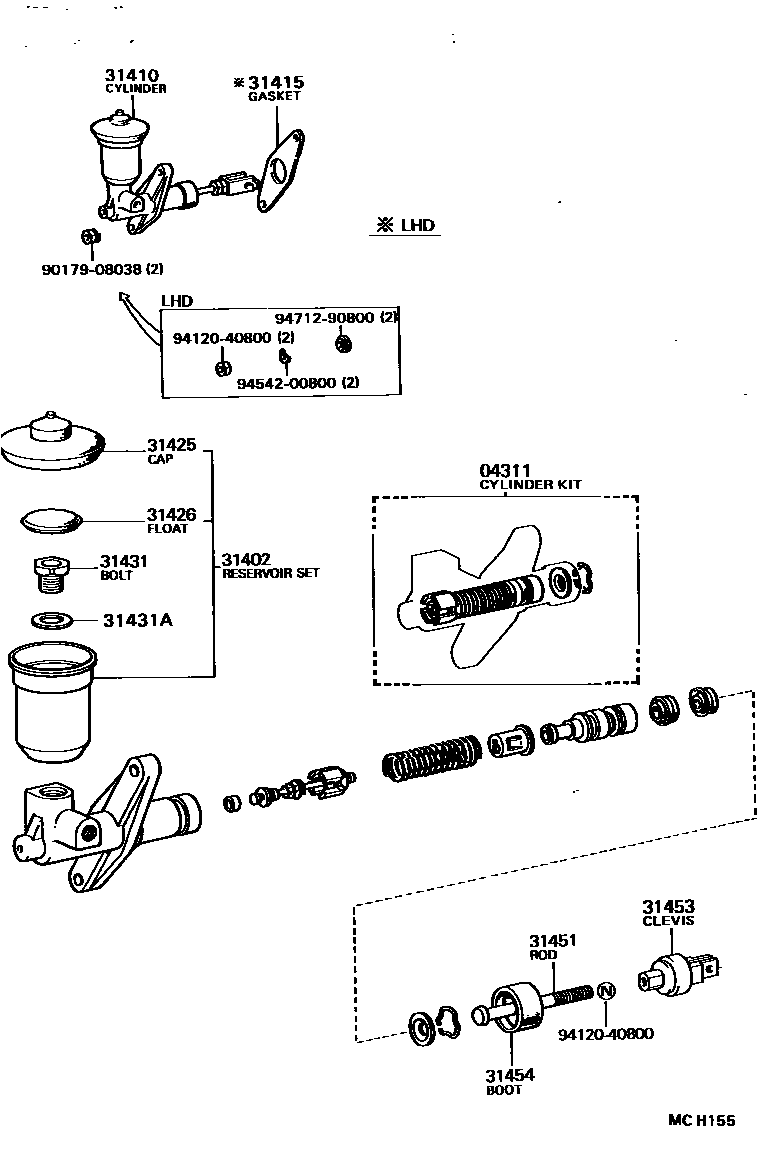

CLUTCH MASTER CYLINDER

0001 1 0003 1

04311CYLINDER KIT, CLUTCH MASTER

main04311-12060iRX72..5F..(GEN,V)199008-199112

sub04311-12080

main04311-12080iRX72..5F..(GEN,V)199203-199302

main04311-22050iGX71,MX75,RX7#,YX72..5F198810-199205

31402RESERVOIR SUB-ASSY, CLUTCH MASTER CYLINDER

main31402-12030iRX72..RHD199211-199302

main31402-22040iRX72..LHD..5F199008-199302

main31402-30030iGX71,MX75,RX7#,YX72..5F..SA198810-199205

31410CYLINDER ASSY, CLUTCH MASTER

main31410-22103iRX72..RHD198810-198811

sub31410-22104

main31410-22104iYX72198811-199205

main31410-22142iRX72..LHD..5F198810-198811

sub31410-22240

main31410-22240iGX71,MX75,RX7#..5F198811-199205

main31410-22270iRX72..RHD199211-199302

main31410-22280iRX72..LHD..5F199008-199302

sub31410-22270

31415GASKET, CLUTCH MASTER CYLINDER

main31415-10010iRX72..LHD..5F199008-199302

main31415-30030iRX72..LHD..5F198810-199008

31425CAP, CLUTCH MASTER CYLINDER RESERVOIR FILLER

main47230-20040iGX71,MX75,RX7#,YX72..5F198810-199302

31426FLOAT, CLUTCH MASTER CYLINDER RESERVOIR

main31426-30011iGX71,MX75,RX7#,YX72..5F198810-199302

31431BOLT, CLUTCH MASTER CYLINDER RESERVOIR SET

main47231-30010iGX71,MX75,RX7#,YX72..5F198810-199205

31431AWASHER, RESERVOIR SET BOLT

main47232-30010iGX71,MX75,RX7#,YX72..5F198810-199205

31451ROD, CLUTCH MASTER CYLINDER PUSH

main31451-22070iGX71,MX75,RX7#,YX72..5F198810-199205

main31451-35080iRX72..5F..(GEN,V)199008-199302

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31404-22010iRX72..5F..(GEN,V)199008-199302

sub31404-22030

main31404-28012iGX71,MX75,RX7#,YX72..5F198810-199205

main31404-35021iRX72..RHD199211-199302

sub31404-35030

31454BOOT, CLUTCH MASTER CYLINDER

main31454-24010iGX71,MX75,RX7#,YX72..5F198810-199302

9017908038

main90179-08038

9412040800

main94120-40800

9454200800

main94542-00800

9471290800

main94712-90800

15 parts on this diagram · 2 diagrams in section
