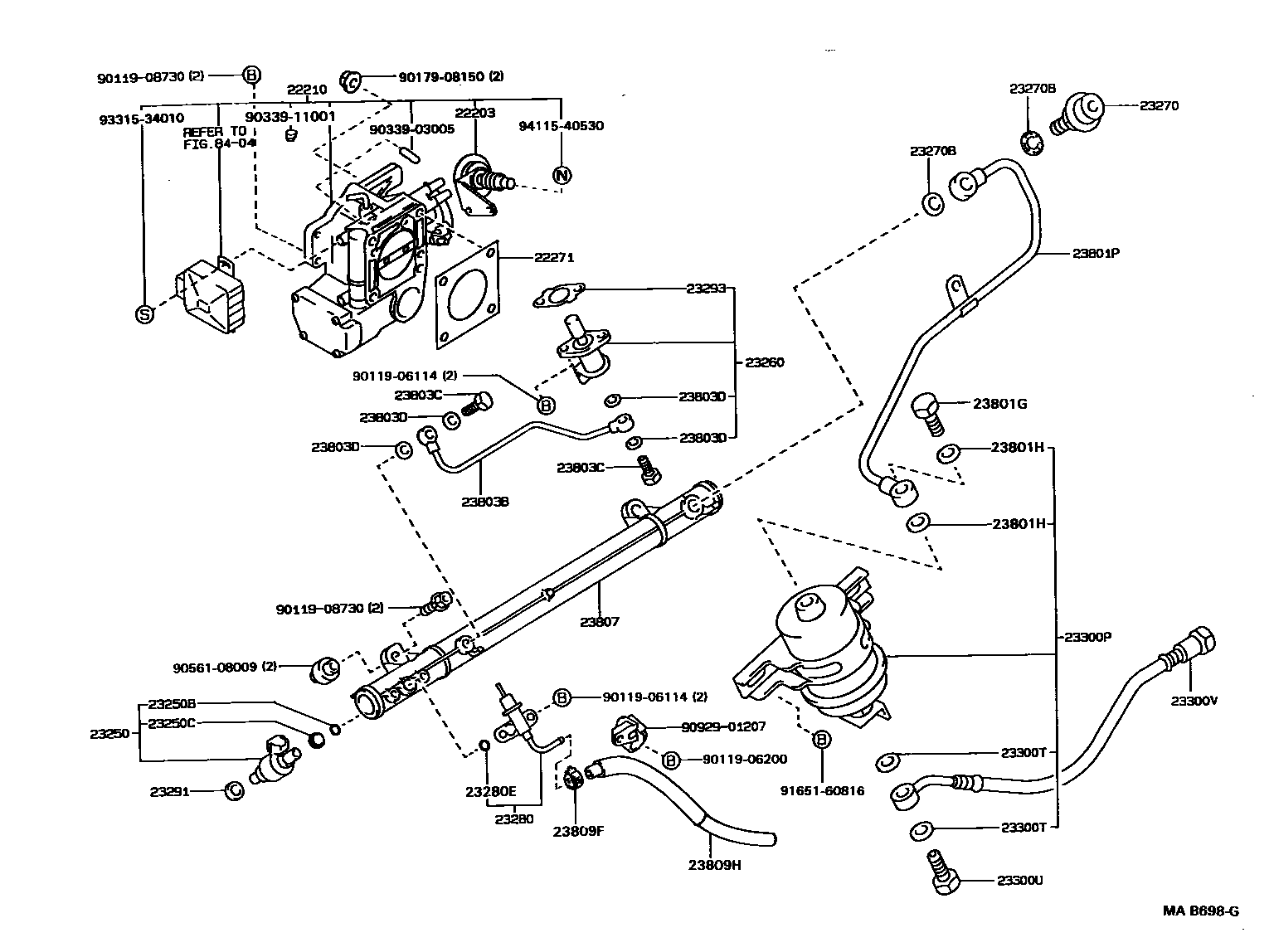

FUEL INJECTION SYSTEM
22203DASH POT SUB-ASSY(FOR THROTTLE BODY)
23250INJECTOR ASSY, FUEL
23250BRING, O(FOR FUEL INJECTOR)
23250CGROMMET(FOR FUEL INJECTOR)
23270DAMPER ASSY, FUEL PRESSURE PULSATION
sub23270-50010
23270BGASKET(FOR PULSATION DAMPER HOSE)
DAMPER SIDE
DELIVERY PIPE SIDE
DELIVERY PIPE SIDE
23280REGULATOR ASSY, FUEL PRESSURE
23280ERING, O(FOR FUEL PRESSURE REGULATOR)
23291INSULATOR, INJECTOR VIBRATION
23300TGASKET(FOR FUEL FILTER)
23300UBOLT, UNION(FOR FUEL FILTER)
23300VHOSE, FUEL(FOR FUEL INLET)
23801GBOLT, UNION(FOR FUEL PIPE)
23801HGASKET(FOR FUEL PIPE)
23801PPIPE SUB-ASSY, FUEL, NO.1
23803BPIPE SUB-ASSY, FUEL, NO.3
23803DBOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3)
23807PIPE SUB-ASSY, FUEL DELIVERY
23809HHOSE, FUEL PIPE SUPPORT TO REGULATOR
8404
9011906114
main90119-06114
9011906200
main90119-06200
9011908730
main90119-08730
9017908150
main90179-08150
9033903005
main90339-03005
9033911001
main90339-11001
9056108009
main90561-08009
9092901207
main90929-01207
9165160816
main91651-60816
9331534010
main93315-34010
9411540530
main94115-40530
38 parts on this diagram · 5 diagrams in section
