MANIFOLD
17110AUNION, VACUUM HOSE
17111MANIFOLD, INTAKE
17118STAY, MANIFOLD
17119STAY, MANIFOLD, NO.2
17129TANK, INTAKE AIR SURGE
17129JPLUG, TIGHT(FOR INTAKE AIR SURGE TANK)
OD=40
OD=40,FR
OD=50,RR
17141MANIFOLD, EXHAUST
17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
INTAKE MANIFOLD
INTAKE MANIFOLD SIDE
INTAKE MANIFOLD NO.2
INTAKE MANIFOLD NO.1
INTAKE MANIFOLD
EXHAUST MANIFOLD
EXHAUST ANIFOLD
EXHAUST MANIFOLD
EXHAUST MANIFOLD LWR
EXHAUST MANIFOLD UPR
17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
9011606028
main90116-06028
9011608305
main90116-08305
9017906199
main90179-06199
9017908150
main90179-08150
9017910037
main90179-10037
9034551016
main90345-51016
9161160825
main91611-60825
9165160820
main91651-60820
91651G0612
main91651-G0612

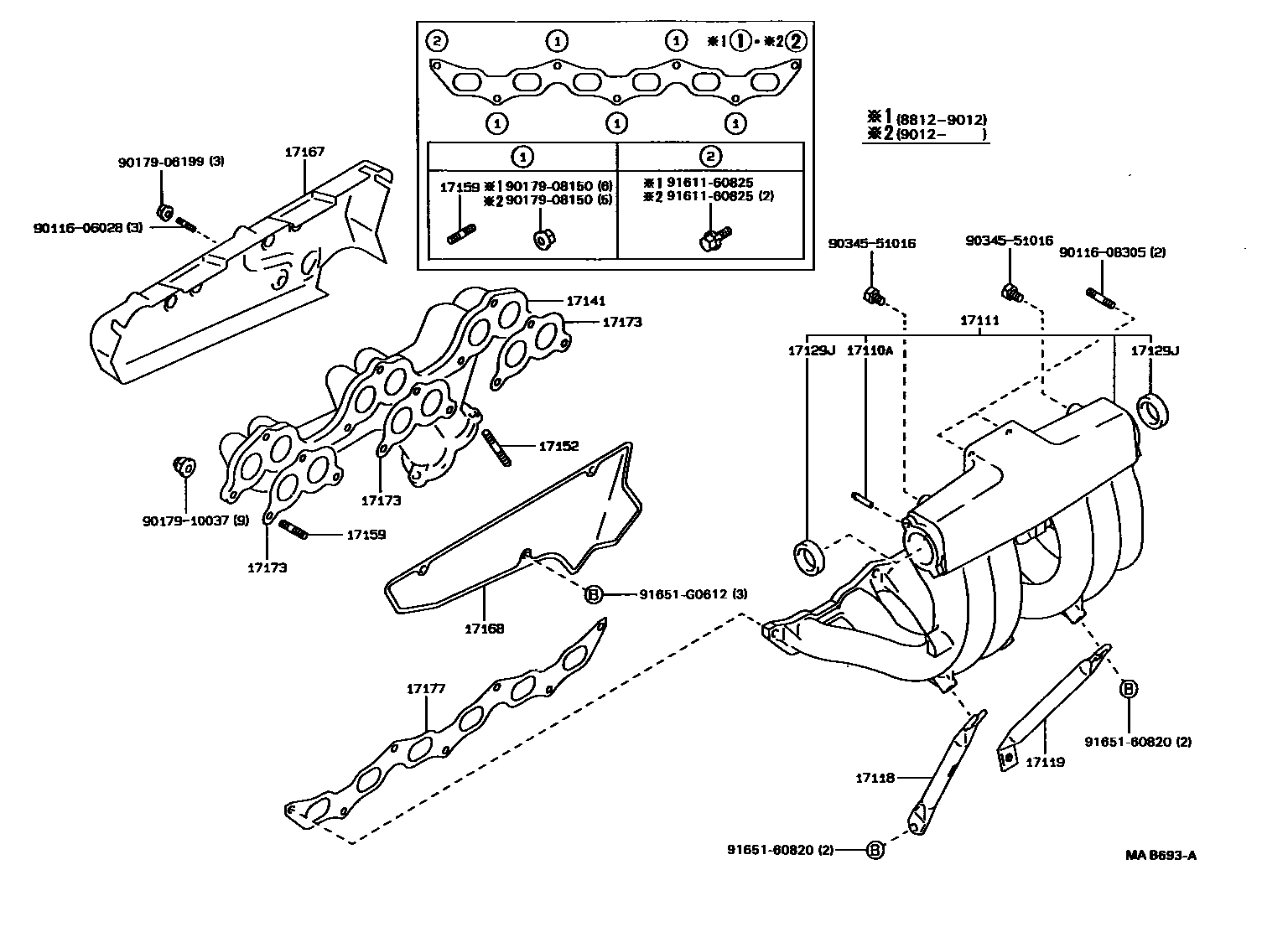

22 parts on this diagram · 4 diagrams in section
