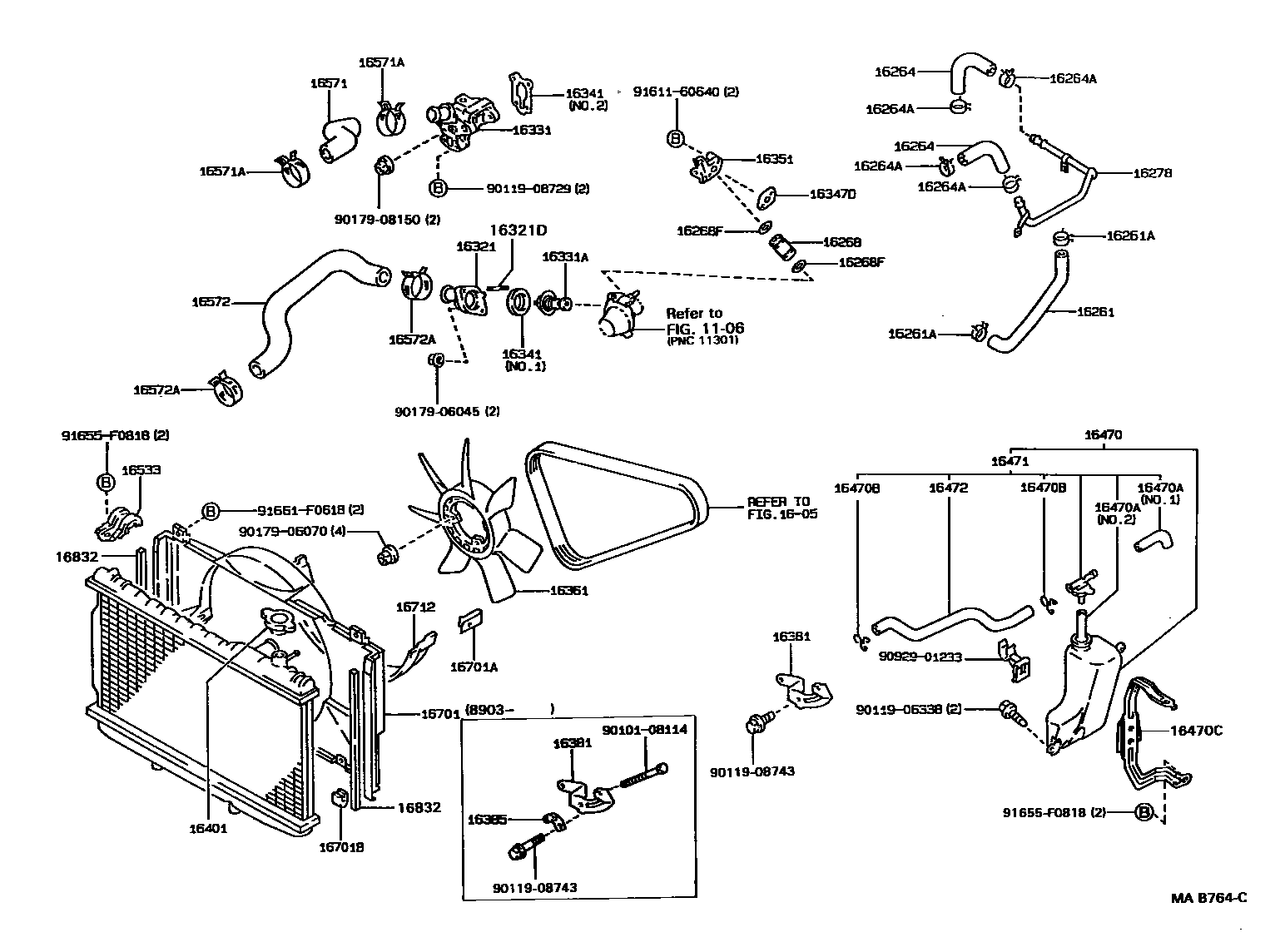

RADIATOR & WATER OUTLET
1106
1605
16264HOSE, WATER BY-PASS, NO.2
16264ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
sub96135-51300
16268FRING, O(FOR WATER BY-PASS PIPE)
16278PIPE, WATER BY-PASS, NO.2
16321DBOLT, STUD(FOR WATER INLET)
16331ATHERMOSTAT
*WAX 82-95
*WAX 88-100
*WAX 82-95
16351OUTLET, WATER BY-PASS
sub16351-70011
16361FAN
16381BAR, FAN BELT ADJUSTING
16385SLIDER, FAN BELT ADJUSTING
16401CAP SUB-ASSY, RADIATOR
16470TANK ASSY, RADIATOR RESERVE
16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)
NO.1
NO.1
L=600,NO.2
16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
16470CBRACKET(FOR RADIATOR RESERVE TANK)
16471CAP SUB-ASSY, RESERVE TANK
16472HOSE, BREATHER
16533SUPPORT, RADIATOR, UPPER
16571HOSE, RADIATOR, INLET
16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
sub90467-37005
16572HOSE, RADIATOR, OUTLET
16701SHROUD SUB-ASSY, FAN
W(AIR CONDITIONER)
16701ACLIP(FOR FAN SHROUD)
16701BCUSHION, FAN SHROUD
16712SHROUD, FAN, NO.2
16832SEAL, FAN SHROUD
9010108114
main90101-08114
9011906338
main90119-06338
9011908729
main90119-08729
9011908743
main90119-08743
9017906045
main90179-06045
9017906070
main90179-06070
9017908150
main90179-08150
9092901233
main90929-01233
9161160640
main91611-60640
91655F0818
main91655-F0818
91661F0618
main91661-F0618
47 parts on this diagram · 5 diagrams in section
