WATER PUMP

0001 1 0002 1 0003 1 0004 1

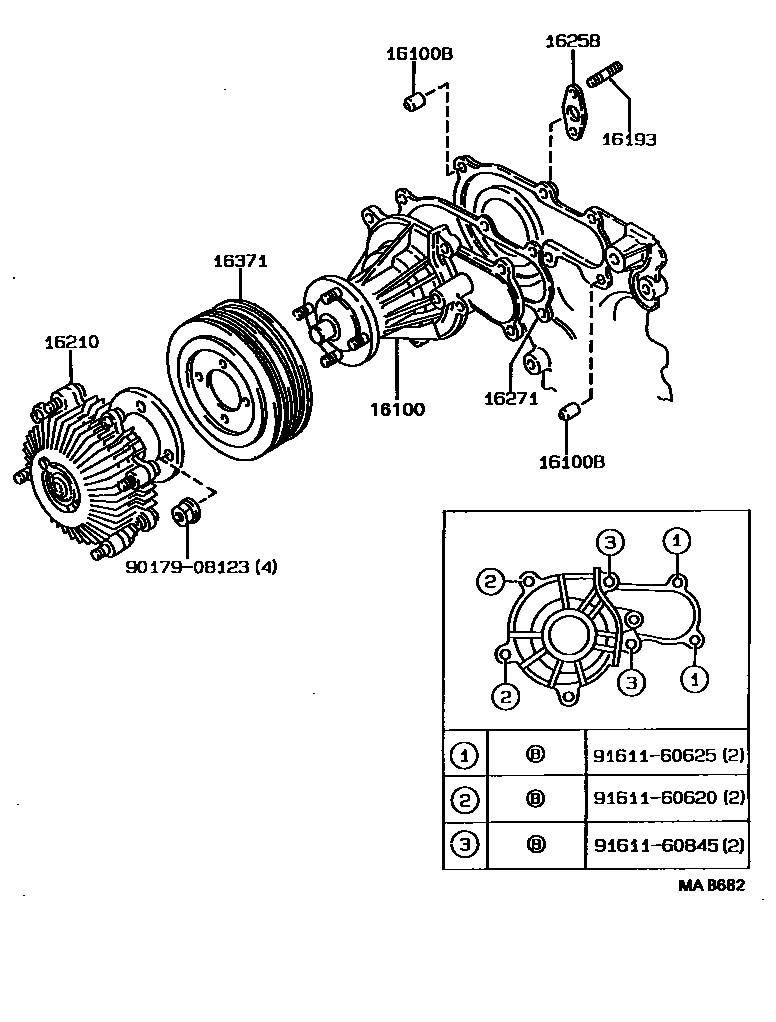

16100PUMP ASSY, ENGINE WATER

main16100-39346i22R..RX7#198810-199302

main16100-49755i7MGE..MX75198812-199205

sub16100-49756

main16100-79036i3Y..YX72198812-199205

sub16100-79037

main16100-79115i1GFE..GX71198812-199007

sub16100-79116

main16100-79116i1GFE..GX71199007-199205

sub16100-79117

sub90119-08B68

16100BPIN, RING(FOR WATER PUMP SET)

main16159-70040i1GFE..GX71198812-199205

main16185-70010i7MGE..MX75198812-199205

16193BOLT, STUD(FOR WATER PUMP COVER)

main16192-70010i1GFE..GX71198812-199205

16210COUPLING ASSY, FLUID

main16210-38050i22R..RX7#198810-199302

main16210-42060i7MGE..MX75198812-199205

main16210-70060i1GFE..GX71198812-199205

main16210-72010i3Y..YX72198812-199205

16258GASKET(FOR HEATER RETURN)

main16258-15011i1GFE..GX71198812-199009

main16258-70020i1GFE..GX71199009-199205

16271GASKET, WATER PUMP

main16124-70041i1GFE..GX71199102-199205

main16124-88300i1GFE..GX71198812-199102

sub16124-70041

16371PULLEY, FAN

main16173-35020i22R..RX7#198810-199302

main16173-42020i7MGE..MX75198812-199205

main16371-70060i1GFE..GX71198812-199205

sub16371-70061

main16371-71010i3Y..YX72198812-199205

sub16371-71021

9017908123

main90179-08123

9161160620

main91611-60620

9161160625

main91611-60625

9161160845

main91611-60845

11 parts on this diagram · 4 diagrams in section
