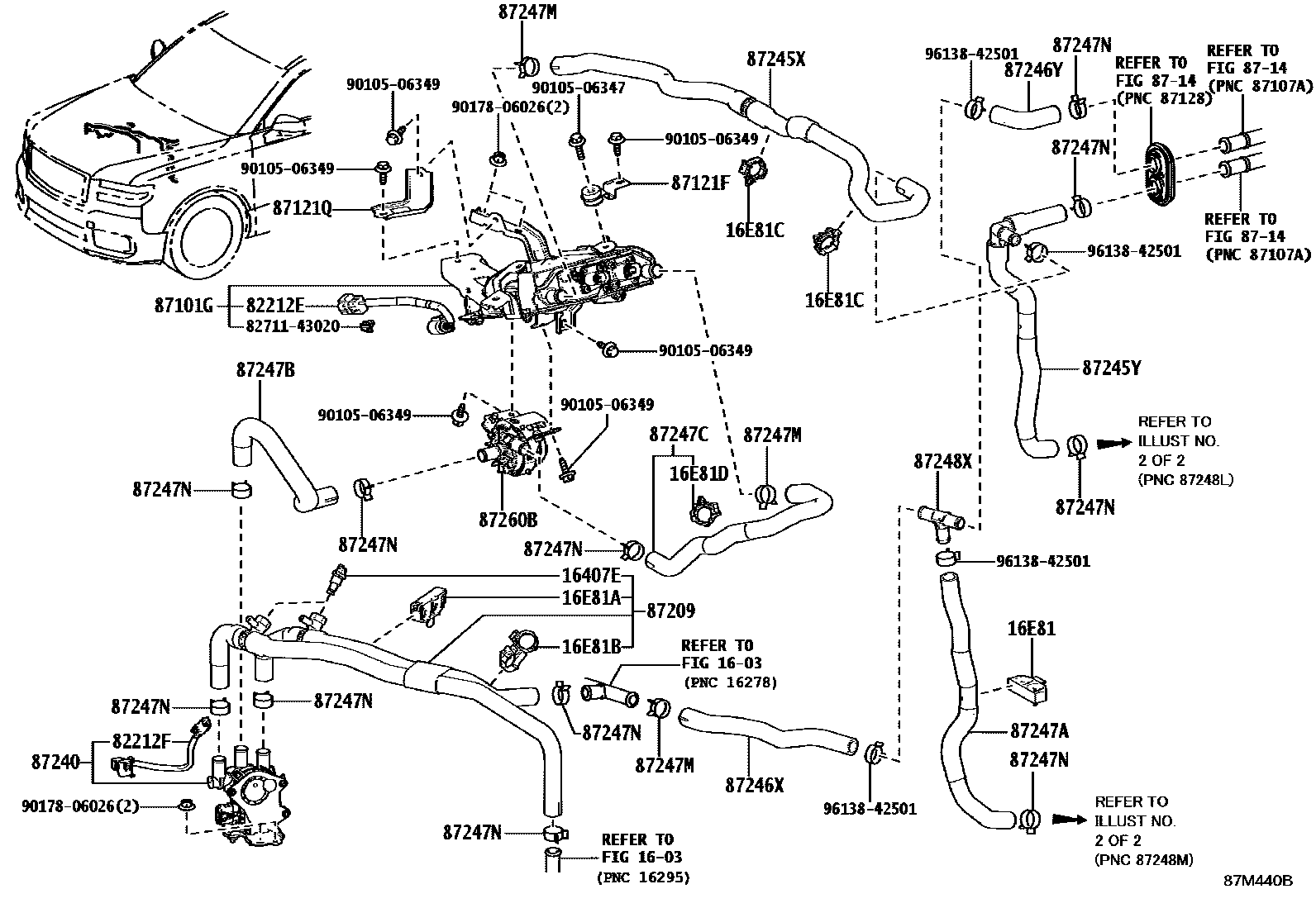

HEATING & AIR CONDITIONING - WATER PIPING

0001 1FRONT 0002 1REAR

1603

16407ECOCK SUB-ASSY, RADIATOR DRAIN

main16407-64010i2GRFXS..GRG75202310

16E81CLAMP, HOSE(FOR WATER HOSE)

main16581-31210i2GRFXS..GRG75202310

16E81ACLAMP, HOSE (FOR WATER HOSE), NO.2

main16581-36140i2GRFXS..GRG75202310

16E81BCLAMP, HOSE (FOR WATER HOSE), NO.3

main16581-70060i2GRFXS..GRG75202310

16E81CCLAMP, HOSE (FOR WATER HOSE), NO.4

main16581-25160i2GRFXS..GRG75202310

16E81DCLAMP, HOSE (FOR WATER HOSE), NO.5

main16581-25160i2GRFXS..GRG75202310

82212EHARNESS, AIR CONDITIONER NO.1

main82212-12170iGRG75202310

82212FHARNESS, AIR CONDITIONER NO.2

main82212-40030iGRG75202310

87101GHEATER SUB-ASSY, ELECTRIC

main87101-40010iGRG75202310

87121FBRACKET, HEATER

main87121-40010iGRG75202310

87121QBRACKET, HEATER NO.2

main87121-40030iGRG75202310

8714

87209HOSE SUB-ASSY, WATER

main87209-40070iGRG75202310

87240VALVE ASSY, HEATER WATER

main87240-40120iGRG75202310

87245XHOSE, HEATER WATER

main87245-40190iGRG75202310

87245YHOSE, HEATER WATER

main87245-40200iGRG75202310

87246XHOSE, HEATER WATER

main87245-40210iGRG75202310

87246YHOSE, HEATER WATER

main87245-40230iGRG75202310

87247AHOSE, HEATER WATER, A

main87245-40240iGRG75202310

87247BHOSE, HEATER WATER, B

main87245-40150iGRG75202310

87247CHOSE, HEATER WATER, C

main87245-40160iGRG75202310

87247MCLIP, HOSE

main96138-42701iGRG75202310

87247NCLIP, HOSE

main96138-42501iGRG75202310

87248XPIPE, HEATER WATER

main87248-0E240iGRG75202310

87260BPUMP ASSY, HEATER, REAR

main87260-40020iGRG75202310

8271143020WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-43020

9010506347

main90105-06347

9010506349

main90105-06349

9017806026

main90178-06026

9613842501

main96138-42501

31 parts on this diagram · 2 diagrams in section
