HEV INVERTER

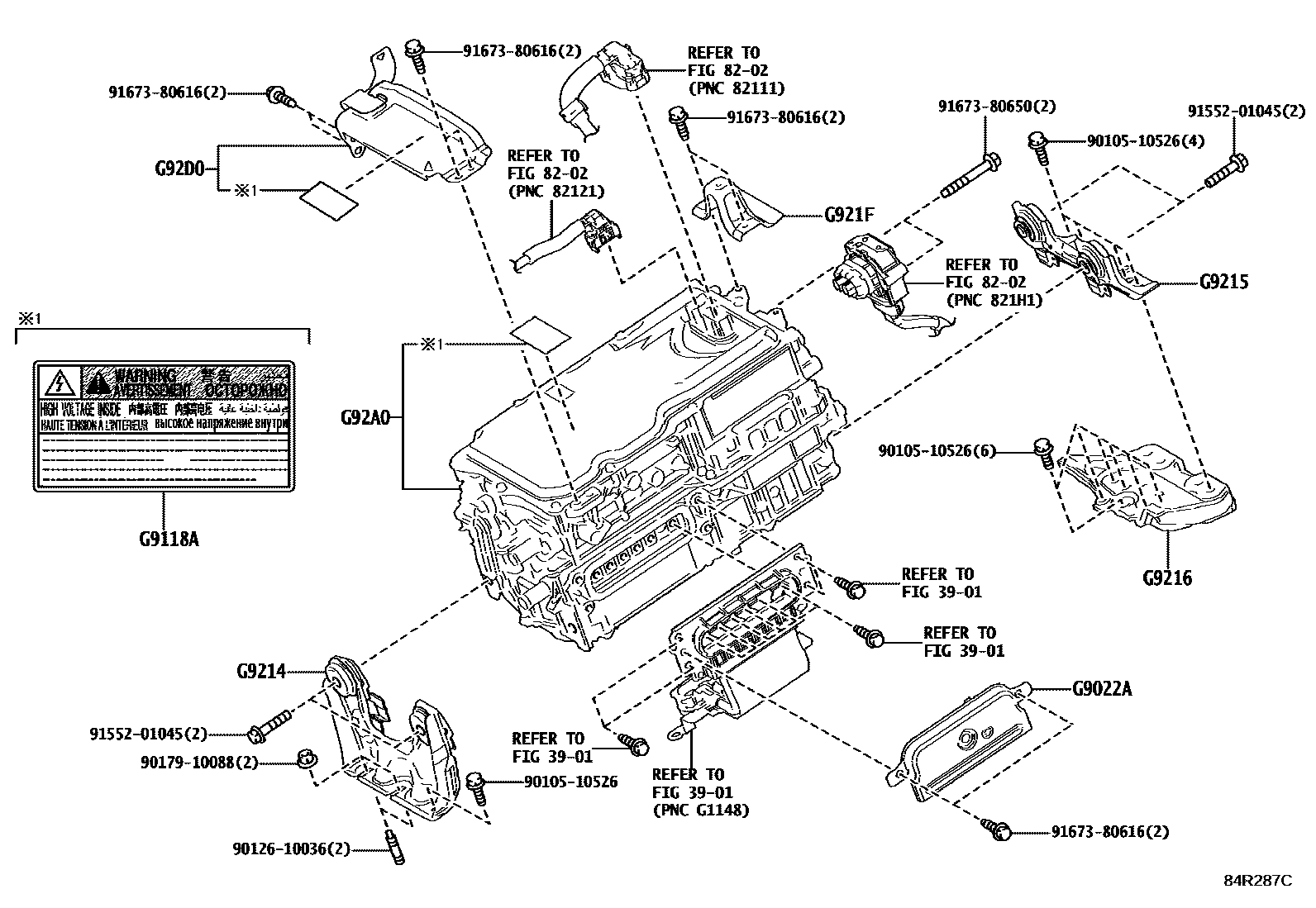

Parts diagram

3901

8202

G9022ACOVER SUB-ASSY, INVERTER, UPPER

mainG902247050i202310

G9118ALABEL, HV MOTOR CONTROL INVERTER CAUTION

mainG911876010i202310

G9214BRACKET, INVERTER, NO.1

mainG921442010i202310

G9215BRACKET, INVERTER, NO.2

mainG921542020i202310

G9216BRACKET, INVERTER, NO.3

mainG921642020i202310

G921FPROTECTOR, INVERTER, NO.2

mainG921F42010i202310

G92A0INVERTER ASSY, HYBRID MOTOR CONTROL

mainG92A040032i202310

G92D0PROTECTOR ASSY, HYBRID INVERTER

mainG92D042010i202310

9010510526

main90105-10526

9012610036

main90126-10036

9017910088

main90179-10088

9155201045

main91552-01045

9167380616

main91673-80616

9167380650

main91673-80650

16 parts on this diagram · 3 diagrams in section
