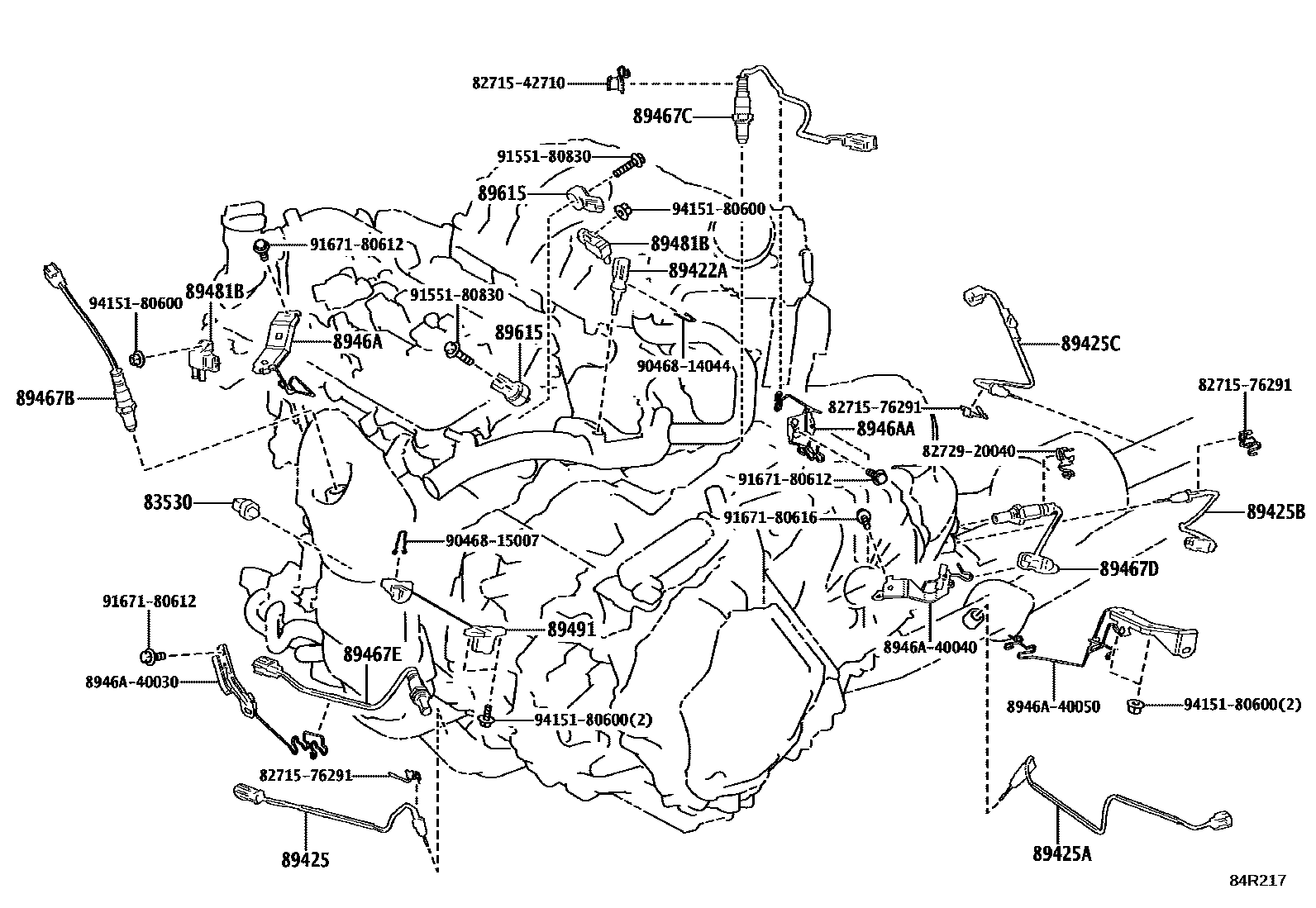

SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE ROOM RELAY BLOCK 0003 1COWL 0004 1INSTRUMENT PANEL 0005 1CONSOLE BOX 0006 1REAR CONSOLE BOX 0007 1STEERING 0008 1FRONT SEAT 0009 1REAR SEAT 0010 1DOOR & ROOF 0011 1FLOOR & BACK DOOR

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-60020iGRG75202310

89422ASENSOR, WATER TEMPERATURE

main89422-47010iGRG75202310

89425SENSOR, EXHAUST GAS TEMPERATURE

main89425-40080iGRG75202310

89425ASENSOR, EXHAUST GAS TEMPERATURE, NO.2

main89425-40100iGRG75202310

89425BSENSOR, EXHAUST GAS TEMPERATURE, NO.3

main89425-40070iGRG75202310

89425CSENSOR, EXHAUST GAS TEMPERATURE, NO.4

main89425-40090iGRG75202310

89467BSENSOR, AIR FUEL RATIO

main89467-40010iGRG75202310

89467CSENSOR, AIR FUEL RATIO, NO.2

main89467-40020iGRG75202310

89467DSENSOR, AIR FUEL RATIO, NO.3

main89467-40030iGRG75202310

89467ESENSOR, AIR FUEL RATIO, NO.4

main89467-40040iGRG75202310

8946ABRACKET, EXHAUST SENSOR CLAMP

main8946A-40010iGRG75202310

8946AABRACKET, EXHAUST SENSOR CLAMP, NO.2

main8946A-40020iGRG75202310

89481BSENSOR, DIFFERENTIAL PRESSURE

main89481-71010iGRG75202310

89491SENSOR, ENGINE OIL LEVEL

main89491-48041iGRG75202310

89615SENSOR, KNOCK CONTROL

main89615-20090iGRG75202310

8271542710BRACKET,WIRING HARNESS CLAMP

main82715-42710

8271576291BRACKET,WIRING HARNESS CLAMP

main82715-76291

8272920040

main82729-20040

8946A40030BRACKET, EXHAUST SENSOR CLAMP

main8946A-40030

8946A40040BRACKET, EXHAUST SENSOR CLAMP

main8946A-40040

8946A40050BRACKET, EXHAUST SENSOR CLAMP

main8946A-40050

9046814044

main90468-14044

9046815007

main90468-15007

9155180830

main91551-80830

9167180612

main91671-80612

9167180616

main91671-80616

9415180600

main94151-80600

27 parts on this diagram · 11 diagrams in section
