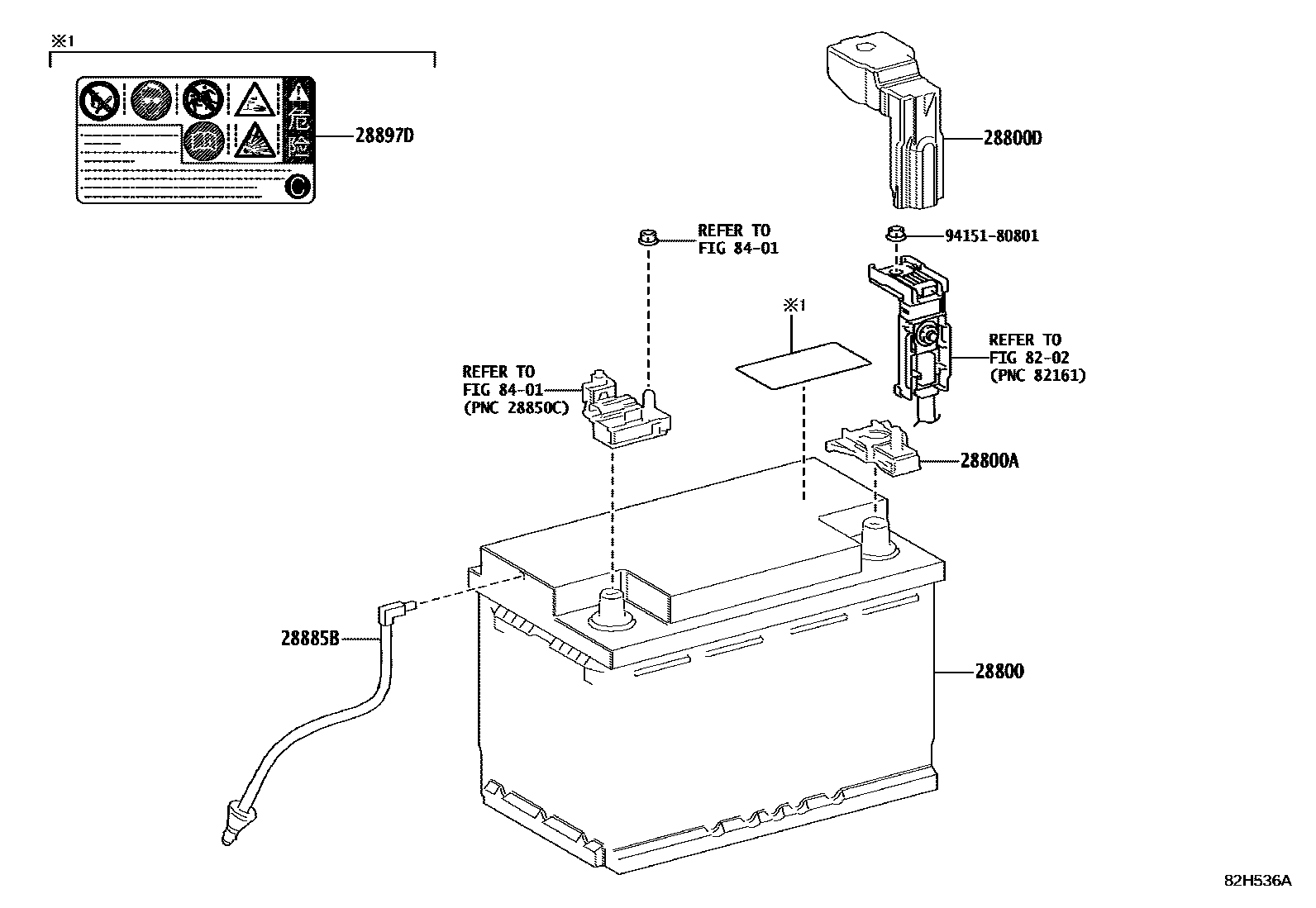

BATTERY & BATTERY CABLE

0001 112V BATTERY 0002 1HV BATTERY 0003 1HV BATTERY 0004 1HV BATTERY 0005 1HV BATTERY 0006 1HV BATTERY

28800BATTERY

main28800-31452i2GRFXS..GRG75¥0202310-202403

LN3

sub28800-31453

main28800-31453i2GRFXS..GRG75202404

LN3

28800ATERMINAL, BATTERY POSITIVE

main82675-78030i2GRFXS..GRG75¥1,350202310

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-78140i2GRFXS..GRG75¥570202310

28885BHOSE, BATTERY

main28885-31110i2GRFXS..GRG75¥1,020202310

28897DLABEL, BATTERY CAUTION

main28897-38060i2GRFXS..GRG75¥140202310

8202

8401

9415180801

main94151-80801¥80

8 parts on this diagram · 6 diagrams in section
