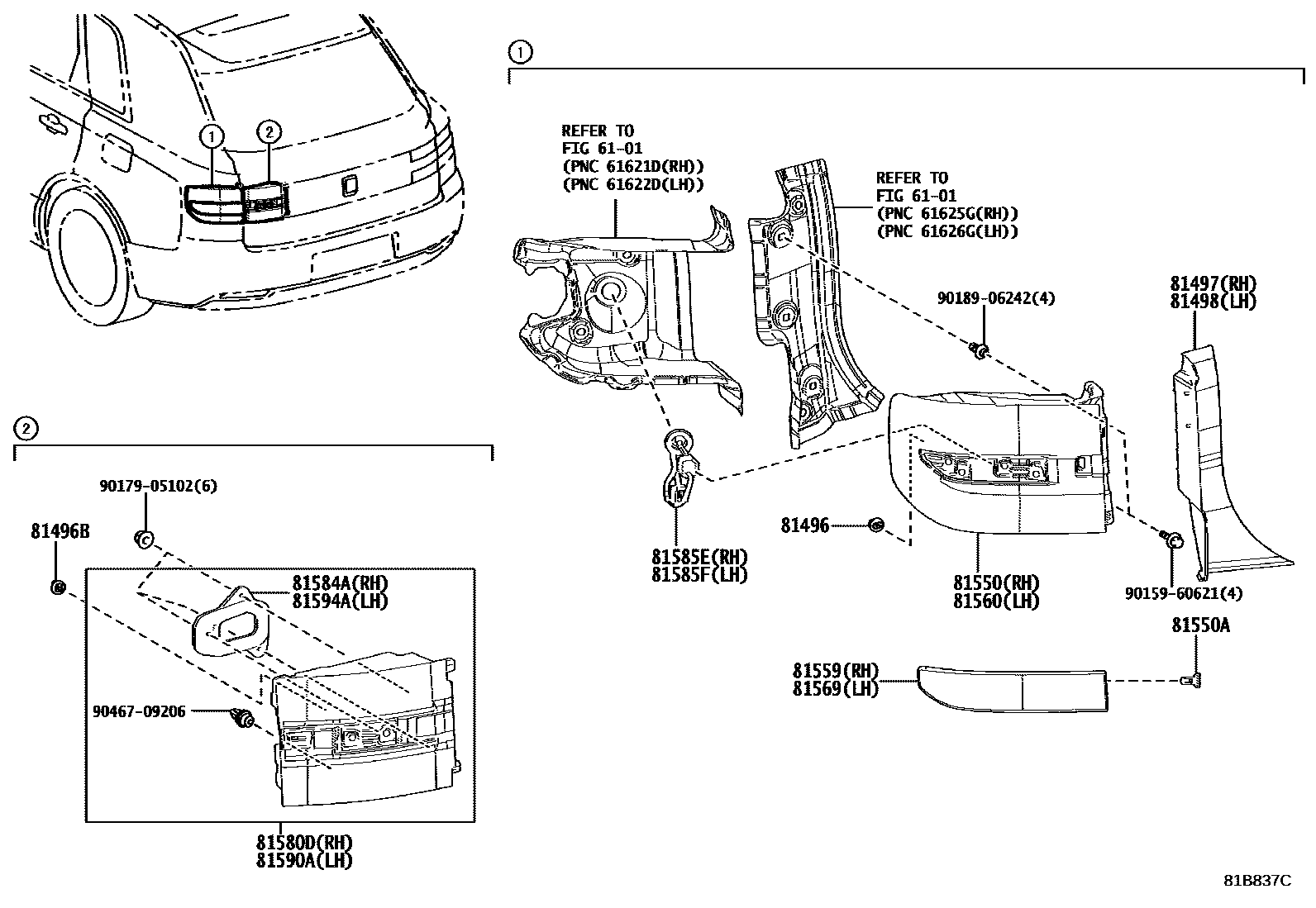

REAR COMBINATION LAMP
6101
81496GUIDE, REAR COMBINATION LAMP
81496BGUIDE, REAR LAMP
81497COVER, REAR COMBINATION LAMP, RH
81498COVER, REAR COMBINATION LAMP, LH
81550LAMP ASSY, REAR COMBINATION, RH
81550ARETAINER, REAR COMBINATION LAMP
81559MOULDING, REAR COMBINATION LAMP, RH
PRECIOUS WHITE PEARL,090 ,M34
PROMINENT GRAY,1M3 ,M32 ,M41
BLACK,212 ,M31
GLORY RED,3V0 ,M33
81560LAMP ASSY, REAR COMBINATION, LH
81569MOULDING, REAR COMBINATION LAMP, LH
PRECIOUS WHITE PEARL,090 ,M34
PROMINENT GRAY,1M3 ,M32 ,M41
BLACK,212 ,M31
GLORY RED,3V0 ,M33
81580DLAMP ASSY, REAR, RH
81584AGASKET, REAR LAMP RH
81585ECORD, REAR LAMP, RH
81585FCORD, REAR LAMP, LH
81590ALAMP ASSY, REAR, LH
81594AGASKET, REAR LAMP LH
9015960621
main90159-60621
9017905102
main90179-05102
9018906242
main90189-06242
9046709206
main90467-09206
20 parts on this diagram · 1 diagram in section
