REAR SEAT & SEAT TRACK

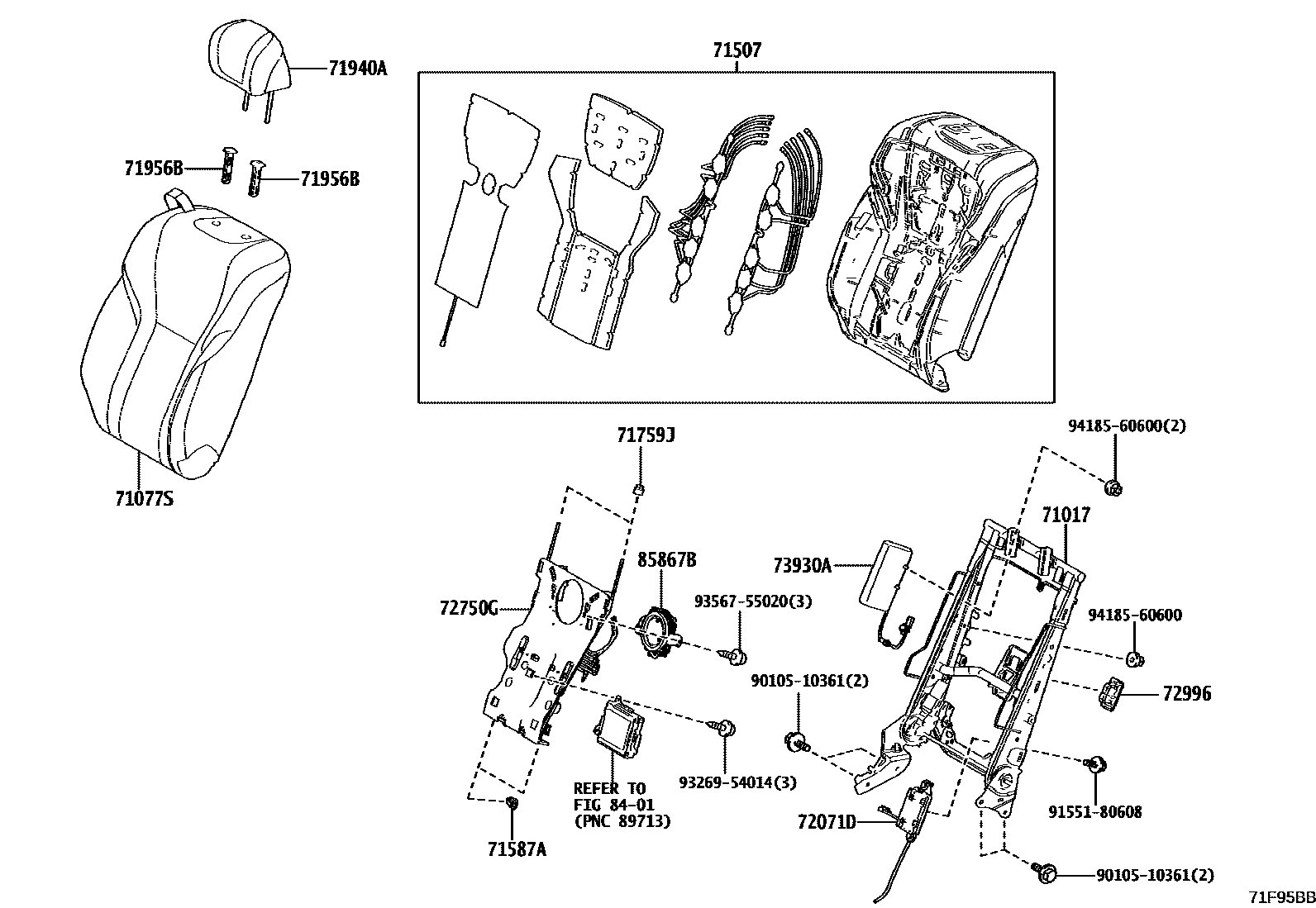

0001 1RH SIDE(SEAT BACK) 0002 1RH SIDE(SEAT CUSHION) 0003 1LH SIDE(SEAT BACK) 0004 1LH SIDE(SEAT CUSHION)

71017FRAME SUB-ASSY, REAR SEATBACK, RH

main71017-40070iGRG75¥37,300202310

71077SCOVER, REAR SEATBACK, RH (FOR SEPARATE TYPE)

main71077-40350-A1iGRG75202310

FROMAGE,TRIM0#

main71077-40350-C1iGRG75202310

BLACK,TRIM2#

main71077-40350-E2iGRG75202310

SUNFLARE BROWN,TRIM41

main71077-40350-E3iGRG75202310

MD.BROWN,TRIM40

71507PAD SUB-ASSY, REAR SEATBACK, RH

main71507-40070iGRG75¥34,300202310

71587APROTECTOR, REAR SEATBACK EDGE

main71587-47010iGRG75¥200202310

71759JHOOK, REAR SEATBACK

main71759-50040iGRG75¥130202310

71940AHEADREST ASSY, REAR SEAT

main71940-40260-A1iGRG75202310

FROMAGE,TRIM0#

main71940-40260-C1iGRG75202310

BLACK,TRIM2#

main71940-40260-E2iGRG75202310

SUNFLARE BROWN,TRIM41

main71940-40260-E3iGRG75202310

MD.BROWN,TRIM40

71956BSUPPORT, REAR SEAT HEADREST

main71930-47050-A0iGRG75202310

W(LOCK),FROMAGE,TRIM0#

main71930-47050-C5iGRG75202310

W(LOCK),BLACK,TRIM2#,4#

main71931-47030-A0iGRG75202310

W/O(LOCK),FROMAGE,TRIM0#

main71931-47030-C4iGRG75202310

W/O(LOCK),BLACK,TRIM2#,4#

72071DPUMP SUB-ASSY, LUMBER SUPPORT, RH

main72071-60010iGRG75¥30,700202310

72750GADJUSTER ASSY, LUMBAR SUPPORT, RH

main72750-60130iGRG75¥79,300202310

72996COVER, REAR SEATBACK, RH

main72996-48150-C1iGRG75202310

BLACK,TRIM0#,2#,4#

73930AAIRBAG ASSY, REAR SEAT, RH

main73930-60050iGRG75¥20,000202310

8401

85867BBLOWER, REAR SEATBACK CLIMATE CONTROL, RH

main85867-60050iGRG75¥15,700202310

9010510361

main90105-10361¥110

9155180608

main91551-80608¥60

9326954014

main93269-54014¥60

9356755020

main93567-55020¥70

9418560600

main94185-60600¥70

18 parts on this diagram · 4 diagrams in section
