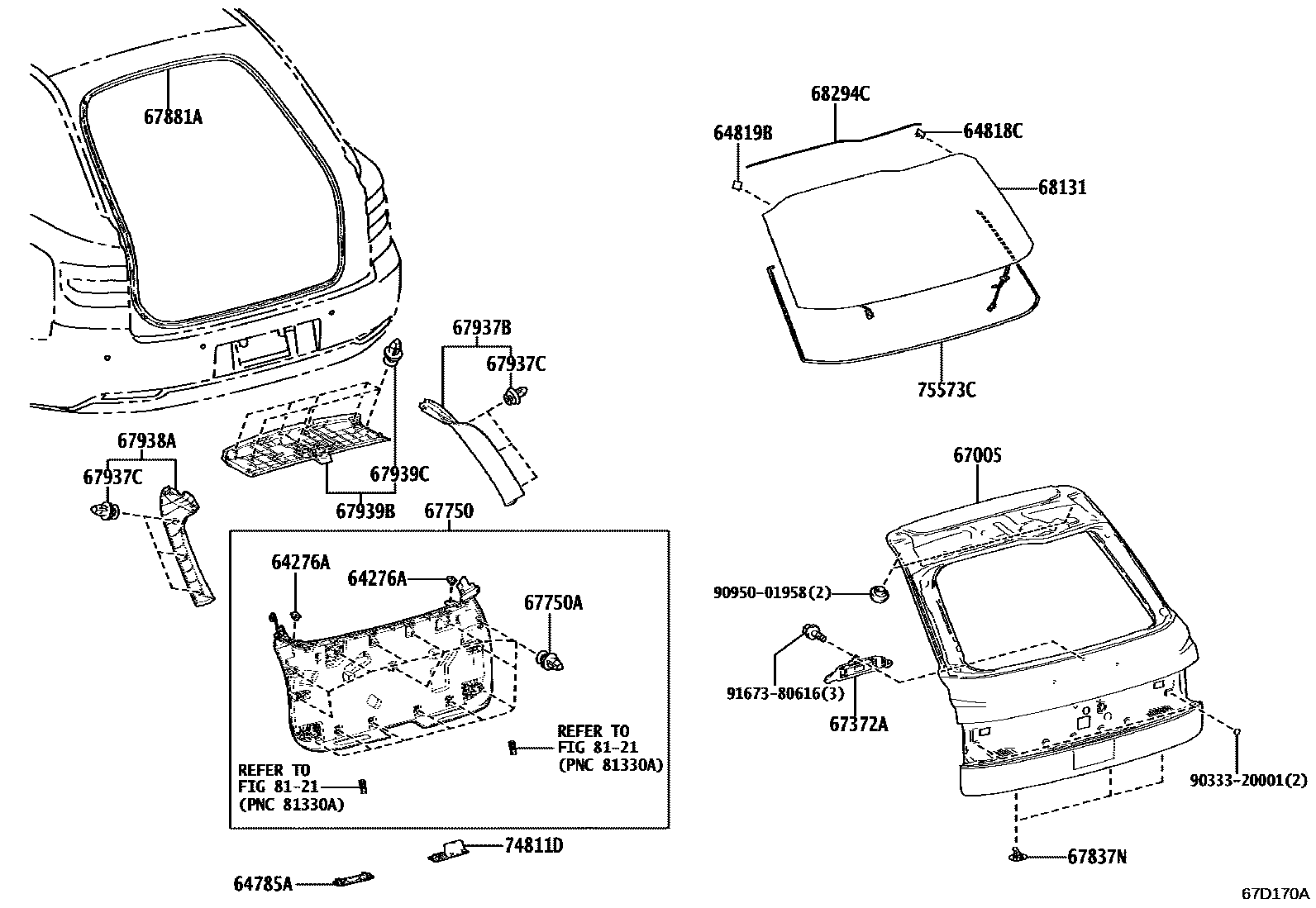

BACK DOOR PANEL & GLASS

64276ABRACKET, BACK PANEL TRIM, UPPER

main58416-33020-C1×2iGRG75202310

BLACK,TRIM0#,2#,4#

64785ABASE, BACK DOOR TRIM

main64785-48020-C1iGRG75202310

BLACK,TRIM0#,2#,4#

64818CSPACER, BACK WINDOW GLASS, NO.1

main64818-40020iGRG75202310

64819BSPACER, BACK WINDOW GLASS, NO.2

main64819-40020iGRG75202310

67005PANEL SUB-ASSY, BACK DOOR

main67005-40010iGRG75202310

67372AWEIGHT, BACK DOOR

main67372-40010iGRG75202310

67750BOARD ASSY, BACK DOOR TRIM

main67750-40010-C2iGRG75202310

BLACK,TRIM0#,2#,4#

67750ACLIP(FOR BACK DOOR TRIM)

main90467-09245×15iGRG75202310

67837NSEAL, BACK DOOR DUST PROOF

main67837-48120×3iGRG75202310

67881AWEATHERSTRIP, BACK DOOR

main67881-40010iGRG75202310

67937BGARNISH, BACK DOOR SIDE, RH

main67937-40010-C1iGRG75202310

BLACK,TRIM0#,2#,4#

67937CCLIP(FOR BACK DOOR SIDE GARNISH)

main90467-10161×6iGRG75202310

67938AGARNISH, BACK DOOR SIDE, LH

main67938-40010-C1iGRG75202310

BLACK,TRIM0#,2#,4#

67939BGARNISH, BACK DOOR, CENTER

main67939-40010-C1iGRG75202310

BLACK,TRIM0#,2#,4#

67939CCLIP(FOR BACK DOOR CENTER GARNISH)

main90467-10161×7iGRG75202310

68131GLASS, BACK DOOR

main68105-40901iGRG75202310

68294CDAM, BACK DOOR GLASS ADHESIVE, NO.1

main56117-50140iGRG75202310

74811DHANDLE, DOOR PULL

main69291-48040-C1iGRG75202310

BLACK,TRIM0#,2#,4#

75573CMOULDING, BACK WINDOW, OUTSIDE

main75573-40040iGRG75202310

8121

9033320001

main90333-20001

9095001958

main90950-01958

9167380616

main91673-80616

23 parts on this diagram · 1 diagram in section
