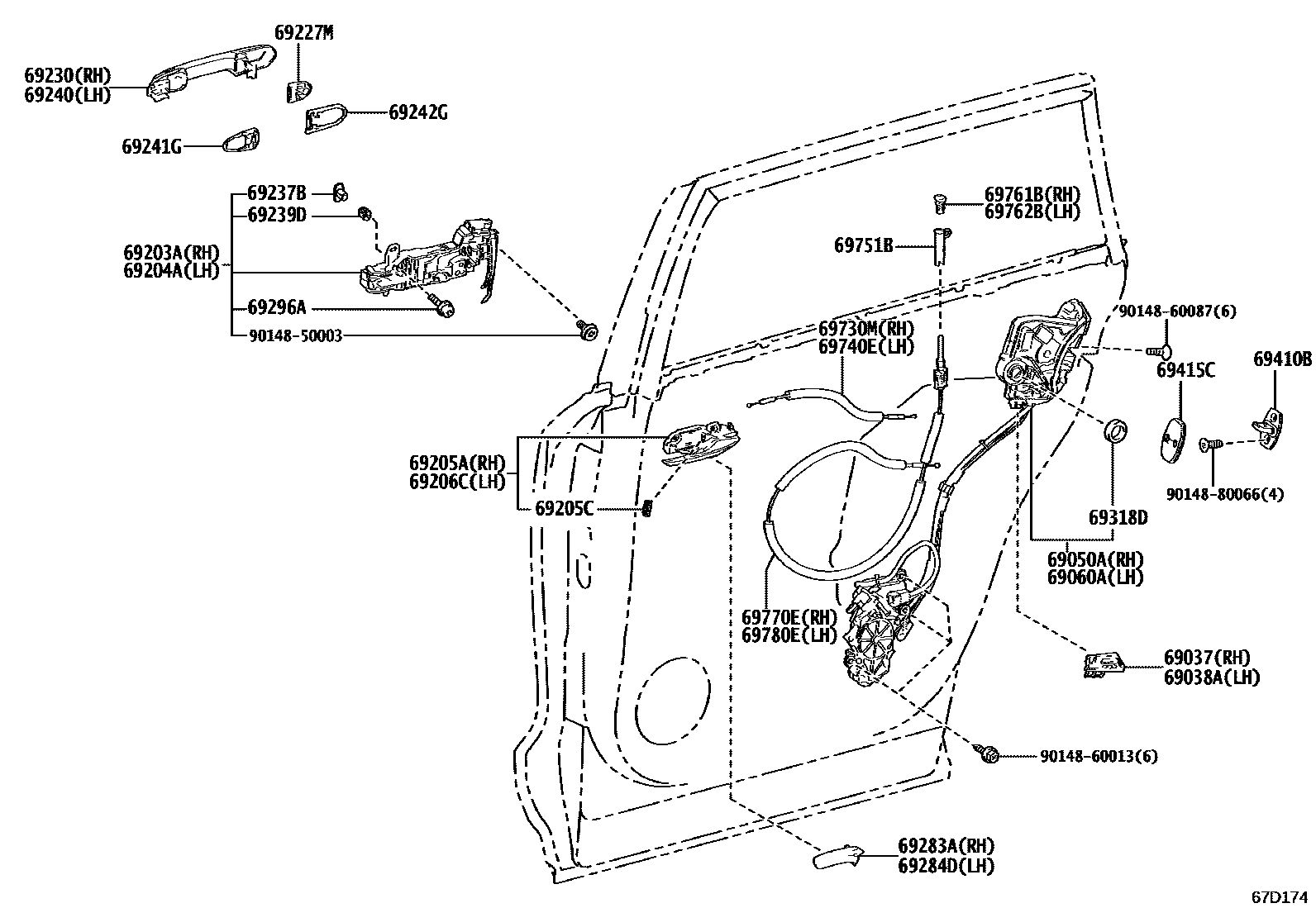

REAR DOOR LOCK & HANDLE
69037COVER SUB-ASSY, REAR DOOR LOCK, RH
69038ACOVER SUB-ASSY, REAR DOOR LOCK, LH
69050ALOCK ASSY, REAR DOOR W/MOTOR, RH
69060ALOCK ASSY, REAR DOOR W/MOTOR, LH
69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH
69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
69205CCUSHION(FOR REAR DOOR INSIDE HANDLE)
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
69227MCOVER, REAR DOOR OUTSIDE HANDLE
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
BLACK,212 ,M31 ,M41
PRECIOUS WHITE PEARL,090 ,M34
PROMINENT GRAY,1M3 ,M32 ,M41
GLORY RED,3V0 ,M33
69237BNUT, REAR DOOR HANDLE
sub69237-0E010
69239DBUSH, REAR DOOR HANDLE
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
BLACK,212 ,M31 ,M41
PRECIOUS WHITE PEARL,090 ,M34
PROMINENT GRAY,1M3 ,M32 ,M41
GLORY RED,3V0 ,M33
69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT
69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR
69283APLUG, REAR DOOR INSIDE HANDLE BEZEL, RH
FROMAGE,TRIM0#
BLACK,TRIM2#
MD.BROWN,TRIM40
SUNFLARE BROWN,TRIM41
69284DPLUG, REAR DOOR INSIDE HANDLE BEZEL, LH
FROMAGE,TRIM0#
BLACK,TRIM2#
MD.BROWN,TRIM40
SUNFLARE BROWN,TRIM41
69296ASCREW, DOOR INSIDE HANDLE
69318DSEAL, DOOR LOCK WIRING HARNESS
69410BPLATE ASSY, REAR DOOR LOCK STRIKER
69415CCOVER, DOOR LOCK STRIKER, REAR
69730MCABLE, REAR DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVER)
69740ECABLE, REAR DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVER)
69751BHOLDER, DOOR LOCKING(FOR REAR DOOR)
69761BBEZEL, REAR DOOR LOCK CONTROL KNOB, RH
FROMAGE,TRIM0#
BLACK,TRIM2#
MD.BROWN,TRIM40
SUNFLARE BROWN,TRIM41
69762BBEZEL, REAR DOOR LOCK CONTROL KNOB, LH
FROMAGE,TRIM0#
BLACK,TRIM2#
MD.BROWN,TRIM40
SUNFLARE BROWN,TRIM41
69770ECABLE, REAR DOOR INSIDE LOCKING, RH(FOR LOCK / UNLOCK KNOB)
69780ECABLE, REAR DOOR INSIDE LOCKING, LH(FOR LOCK / UNLOCK KNOB)
9014850003
main90148-50003
9014860013
main90148-60013
9014860087
main90148-60087
9014880066
main90148-80066
33 parts on this diagram · 1 diagram in section
