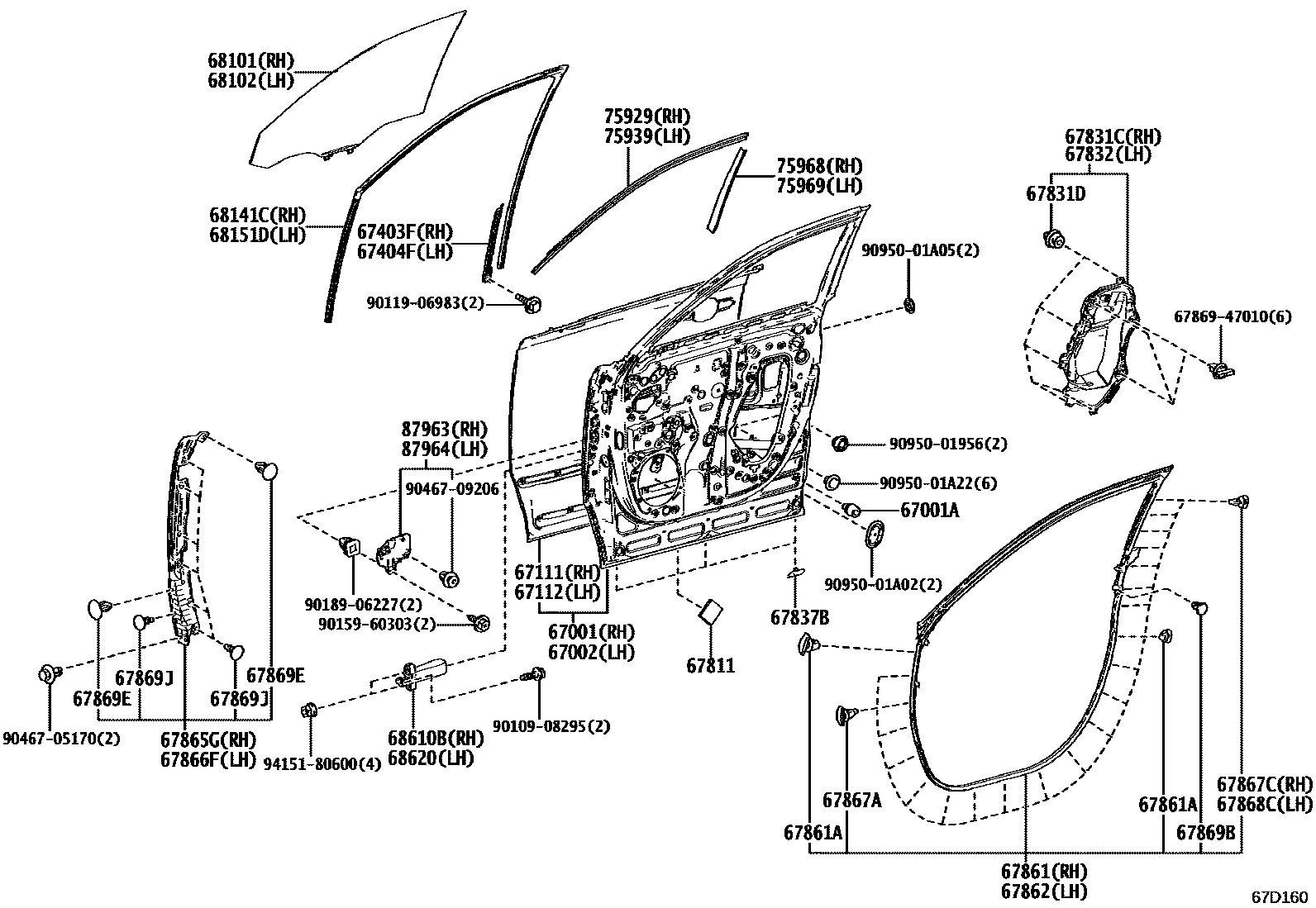

FRONT DOOR PANEL & GLASS
67001PANEL SUB-ASSY, FRONT DOOR, RH
67001ACUSHION, FRONT DOOR PANEL
POWER SLIDE DOOR(LINK TYPE)
67002PANEL SUB-ASSY, FRONT DOOR, LH
67111PANEL, FRONT DOOR, OUTER RH
67112PANEL, FRONT DOOR, OUTER LH
67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
67811PAD, FRONT DOOR SILENCER
67831CCOVER, FRONT DOOR SERVICE HOLE
67831DCLIP(FOR FRONT DOOR SERVICE HOLE COVER)
67832COVER, FRONT DOOR SERVICE HOLE, LH
67837BSEAL, FRONT DOOR DUST PROOF
POWER SLIDE DOOR(LINK TYPE)
67861WEATHERSTRIP, FRONT DOOR, RH
POWER SLIDE DOOR(LINK TYPE)
67861ARETAINER(FOR FRONT DOOR WEATHERSTRIP)
POWER SLIDE DOOR(LINK TYPE)
67862WEATHERSTRIP, FRONT DOOR, LH
POWER SLIDE DOOR(LINK TYPE)
67865GWEATHERSTRIP, FRONT DOOR, NO.3 RH
POWER SLIDE DOOR(LINK TYPE)
67866FWEATHERSTRIP, FRONT DOOR, NO.3 LH
POWER SLIDE DOOR(LINK TYPE)
67867ACLIP, DOOR WEATHERSTRIP(FOR FRONT DOOR)
POWER SLIDE DOOR(LINK TYPE)
67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH
POWER SLIDE DOOR(LINK TYPE)
67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH
POWER SLIDE DOOR(LINK TYPE)
67869BCLIP, FRONT DOOR WEATHERSTRIP
POWER SLIDE DOOR(LINK TYPE)
67869ECLIP, FRONT DOOR WEATHERSTRIP
POWER SLIDE DOOR(LINK TYPE)
67869JCLIP, FRONT DOOR WEATHERSTRIP
POWER SLIDE DOOR(LINK TYPE)
68101GLASS SUB-ASSY, FRONT DOOR, RH
68102GLASS SUB-ASSY, FRONT DOOR, LH
68141CRUN, FRONT DOOR GLASS, RH
68151DRUN, FRONT DOOR GLASS, LH
68610BCHECK ASSY, FRONT DOOR, RH
68620CHECK ASSY, FRONT DOOR, LH
75929TAPE, BLACK OUT FRONT DOOR, INNER UPPER RH
75939TAPE, BLACK OUT FRONT DOOR, INNER UPPER LH
75968TAPE, BLACK OUT FRONT DOOR, INNER REAR RH
75969TAPE, BLACK OUT FRONT DOOR, INNER REAR LH
87963COVER, OUTER MIRROR INSTALL HOLE, RH
87964COVER, OUTER MIRROR INSTALL HOLE, LH
6786947010PLATE, WEATHERSTRIP, CENTER DOOR, UPPER
main67869-47010
9010908295
main90109-08295
9011906983
main90119-06983
9015960303
main90159-60303
9018906227
main90189-06227
9046705170
main90467-05170
9046709206
main90467-09206
9095001956
main90950-01956
9095001A02
main90950-01A02
9095001A05
main90950-01A05
9095001A22
main90950-01A22
9415180600
main94151-80600
47 parts on this diagram · 2 diagrams in section
