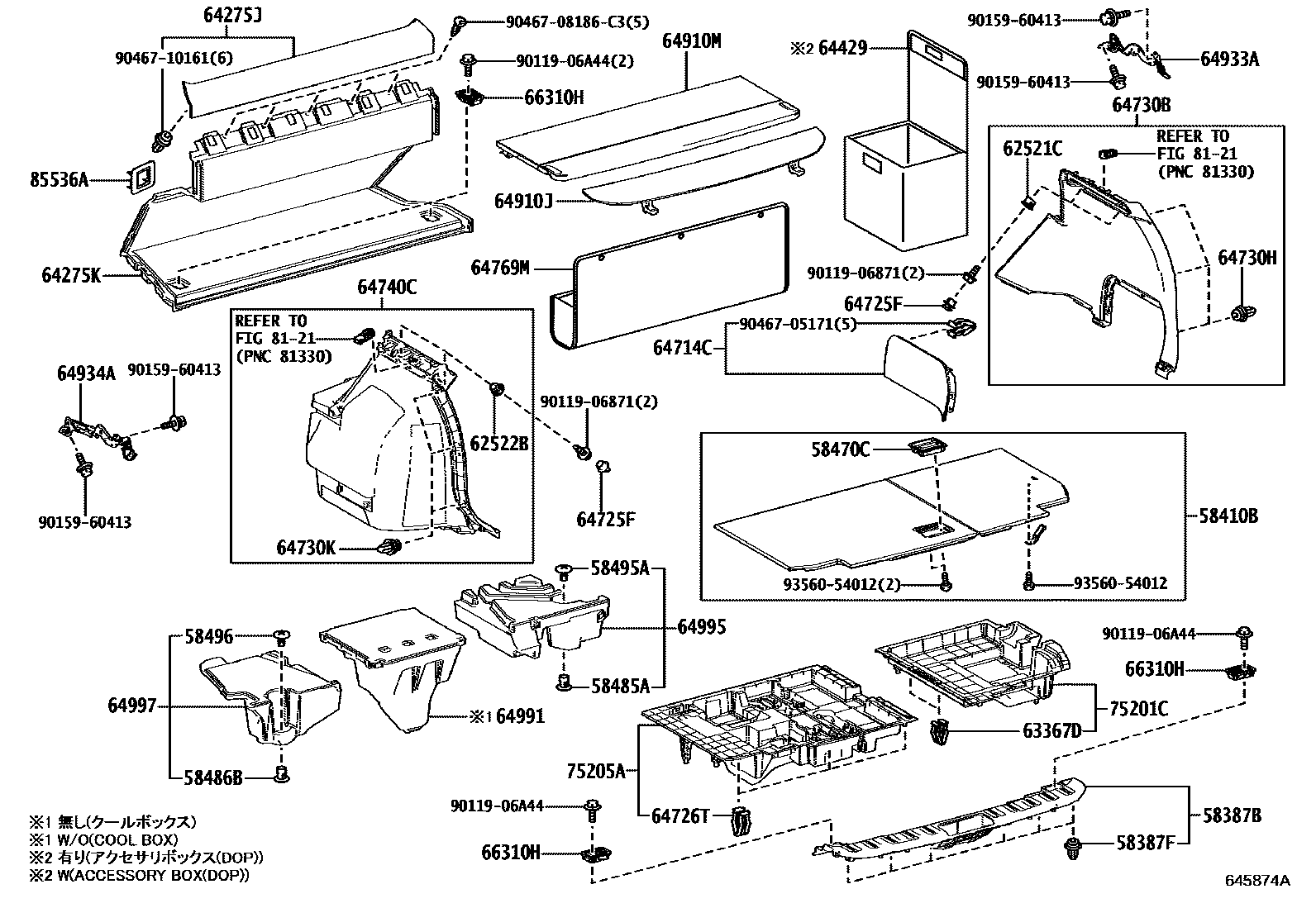

DECK BOARD & DECK TRIM COVER
58387BPLATE, REAR FLOOR FINISH
BLACK,TRIM0#,2#,4#
58387FCLIP, REAR FLOOR FINISH PLATE
58410BBOARD ASSY, DECK
NLACK,TRIM0#,2#,4#
58470CHANDLE ASSY, DECK BOARD
BLACK,TRIM0#,2#,4#
58485APLATE, REAR FLOOR BOARD, UPPER NO.1
58486BPLATE, REAR FLOOR BOARD, UPPER NO.2
58495APLATE, REAR FLOOR BOARD, UPPER NO.3
58496PLATE, REAR FLOOR BOARD, UPR NO.4
62521CCOVER, QUARTER TRIM RH
62522BCOVER, QUARTER TRIM LH
63367DCLIP(FOR DECK FLOOR BOX)
64275JCOVER, ROOM PARTITION, NO.1
BLACK,TRIM0#,2#,4#
64275KCOVER, ROOM PARTITION, NO.2
BLACK,TRIM0#,2#,4#
64429TRAY, LUGGAGE COMPARTMENT SIDE
main64490-40050
64714CCOVER, DECK SIDE TRIM, RH
BLACK,TRIM0#,2#,4#
64725FHOOK, LUGGAGE COMPARTMENT TRIM, NO.1
BLACK,TRIM0#,2#,4#
64726TCLIP, DECK FLOOR BOX
64730BPANEL ASSY, DECK TRIM SIDE, RH
BLACK,TRIM0#,2#,4#
64730HCLIP(FOR DECK TRIM SIDE PANEL)
64730KCLIP(FOR DECK SIDE TRIM PANEL)
64740CPANEL ASSY, DECK TRIM SIDE, LH
BLACK,TRIM0#,2#,4#
64769MCASE, TOOL BAG
64910JCOVER ASSY, TONNEAU
BLACK,TRIM0#,2#,4#
64910MCOVER ASSY, TONNEAU
BLACK,TRIM0#,2#,4#
64933ABRACKET, TONNEAU COVER HOLDER, RH
64934ABRACKET, TONNEAU COVER HOLDER, LH
64991BOX, DECK FLOOR, FRONT
main64991-40010
64995BOX, DECK FLOOR, RH
64997BOX, DECK FLOOR, LH
66310HHOOK ASSY, ROPE
75201CBOX SUB-ASSY, TOOL, NO.1
75205ABOX SUB-ASSY, TOOL, NO.2
8121
85536ABEZEL, POWER OUTLET SOCKET
BLACK,TRIM0#,2#,4#
9011906871
main90119-06871
9011906A44
main90119-06A44
9015960413
main90159-60413
9046705171
main90467-05171
9046708186C3
main90467-08186C3
9046710161
main90467-10161
9356054012
main93560-54012
41 parts on this diagram · 1 diagram in section
