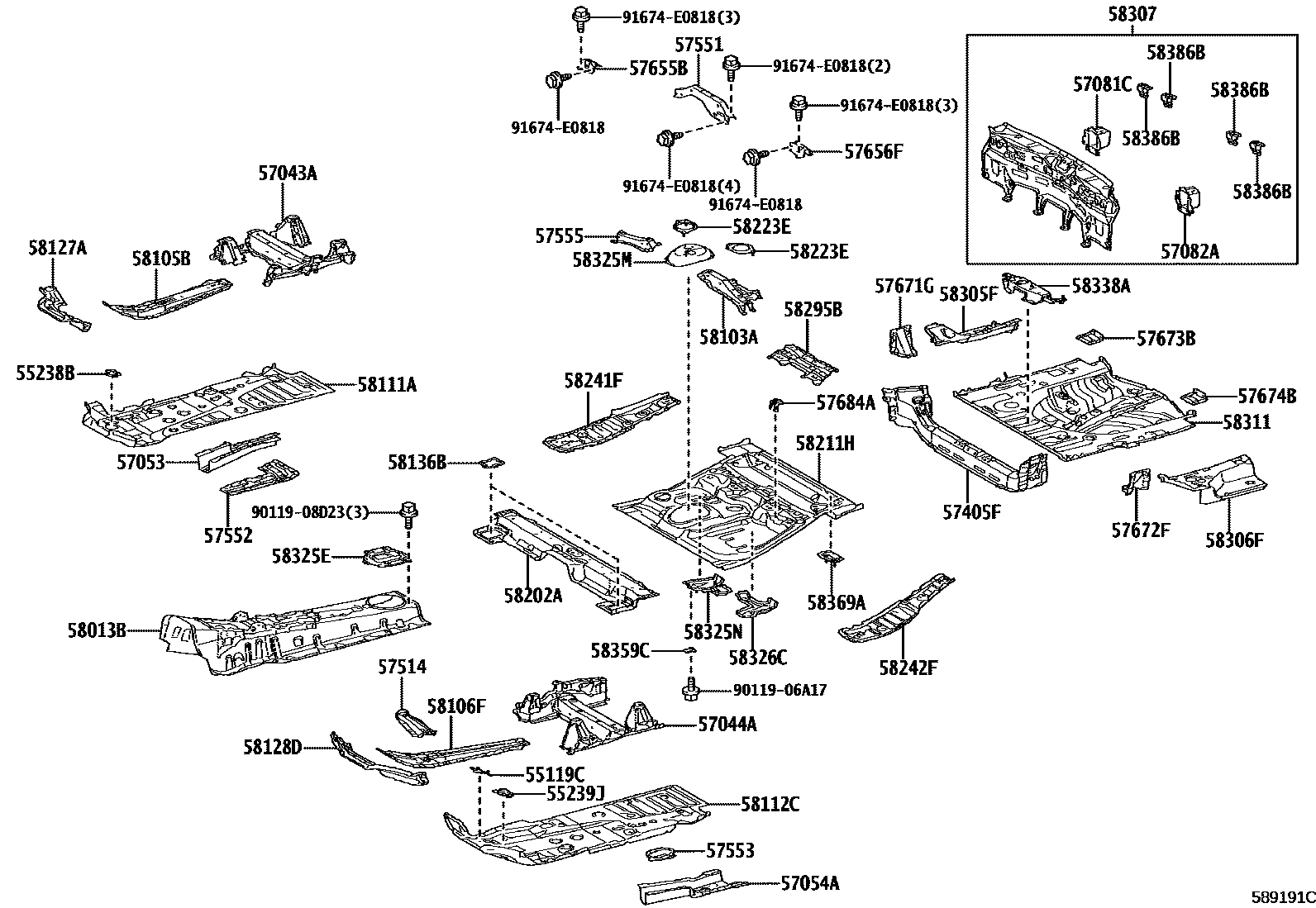

FLOOR PAN & LOWER BACK PANEL

0001 1FLOOR PANEL & LOWER BACK PANE0002 1SIDE STEP

55119CBRACKET, CLUTCH BOOSTER

main55119-0E060iGRG75202310

55238BPLATE, DASH PANEL INSULATOR, LOWER RH

main55238-42010iGRG75¥270202310

55239JPLATE, DASH PANEL INSULATOR, LOWER LH

main55239-42010iGRG75¥270202310

57043AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH

main57043-40030iGRG75202310

57044AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH

main57044-0E060iGRG75202310

57053REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH

main57053-42020iGRG75¥4,110202310

57054AREINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH

main57054-42020iGRG75¥4,110202310

57081CBRACKET SUB-ASSY, REAR BUMPER ARM SUPPORT, RH

main57081-40010iGRG75¥4,540202310

57082ABRACKET SUB-ASSY, REAR BUMPER ARM SUPPORT, LH

main57082-40010iGRG75¥4,540202310

57405FMEMBER SUB-ASSY, CENTER FLOOR CROSS, REAR

main57405-40010iGRG75¥28,000202310

57514REINFORCEMENT, FRONT FLOOR SIDE, LH

main57168-40010iGRG75¥3,850202310

57551REINFORCEMENT, CENTER FLOOR, NO.1

main57557-40010iGRG75¥3,880202310

57552REINFORCEMENT, CENTER FLOOR, NO.2

main57552-42010iGRG75¥4,240202310

57553REINFORCEMENT, CENTER FLOOR, NO.3

main57553-42010iGRG75¥1,490202310

57555REINFORCEMENT, CENTER FLOOR, NO.5

main57555-40010iGRG75¥3,070202310

57655BMEMBER, REAR FLOOR CROSS, NO.4

main57655-40010iGRG75¥2,060202310

57656FMEMBER REAR FLOOR CROSS, NO.5

main57656-40010iGRG75¥2,060202310

57671GMEMBER, REAR FLOOR CROSS, NO.1 RH

main57671-0E050iGRG75¥3,180202310

57672FMEMBER, REAR FLOOR CROSS, NO.1 LH

main57672-0E050iGRG75¥3,140202310

57673BBRACE, REAR FLOOR NO.2 CROSSMEMBER, RH

main57673-0E060iGRG75¥1,290202310

57674BBRACE, REAR FLOOR NO.2 CROSSMEMBER, LH

main57674-0E060iGRG75¥1,290202310

57684ABRACKET, FUEL TANK MOUNTING, NO.2

main57684-40020iGRG75¥470202310

58013BPANEL SUB-ASSY, FRONT FLOOR, CENTER

main58013-40030iGRG75¥37,800202310

58103AREINFORCEMENT SUB-ASSY, FRONT FLOOR SIDE, LH

main57504-40010iGRG75¥5,800202310

58105BPANEL SUB-ASSY, FRONT FLOOR REAR UPPER SUB

main58105-0E071iGRG75202310

58106FBRACKET SUB-ASSY, FRONT SEAT MOUNTING, OUTSIDE LH

main58106-0E011iGRG75202310

58111APAN, FRONT FLOOR, RH

main58111-0E080iGRG75202310

58112CPAN, FRONT FLOOR, LH

main58112-0E010iGRG75202310

58127AREINFORCE, FRONT CROSS TO FRONT PANEL MEMBER, RH

main58127-0E080iGRG75202310

58128DREINFORCE, FRONT CROSS TO FRONT PANEL MEMBER, LH

main58128-0E020iGRG75202310

58136BCOVER, CENTER FLOOR HOLE

main58136-48040iGRG75¥400202310

58202APAN SUB-ASSY, CENTER FLOOR, FRONT

main58202-40020iGRG75¥14,400202310

58211HPAN, CENTER FLOOR

main58211-40030iGRG75¥14,400202310

58223EREINFORCEMENT, FLOOR PANEL SIDE, RH

main58223-42020iGRG75¥670202310

58241FPANEL, FLOOR SIDE, RH

main58241-0W010iGRG75¥4,640202310

58242FPANEL, FLOOR SIDE, LH

main58242-0W010iGRG75¥4,590202310

58295BREINFORCEMENT, SEAT BELT ANCHOR FLOOR

main58295-40020iGRG75¥2,740202310

58305FPANEL SUB-ASSY, REAR FLOOR SIDE, RH

main58305-0E150iGRG75202310

58306FPANEL SUB-ASSY, REAR FLOOR SIDE, LH

main58306-0E120iGRG75202310

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-40080iGRG75202310

58311PAN, REAR FLOOR

main58311-0E906iGRG75202310

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-42050iGRG75¥2,220202310

58325MCOVER, REAR FLOOR SERVICE HOLE, NO.1

main58325-42060iGRG75¥1,450202310

58325NBRACE, REAR FLOOR PANEL, RH

main57803-40020iGRG75¥3,850202310

58326CBRACE, REAR FLOOR PANEL, LH

main57804-40020iGRG75¥3,420202310

58338AREINFORCEMENT, REAR FLOOR PAN, NO.2

main58338-40010iGRG75¥3,460202310

58359CCOVER, FUEL TANK SUPPORT BRACKET

main58359-40010iGRG75¥410202310

58369ABRACKET, FUEL TUBE, NO.3

main58369-40010iGRG75¥820202310

58386BBRACKET, REAR BUMPER COVER, NO.2

main58386-47020iGRG75¥400202310

9011906A17

main90119-06A17¥60

9011908D23

main90119-08D23¥60

91674E0818

main91674-E0818¥80

52 parts on this diagram · 2 diagrams in section
