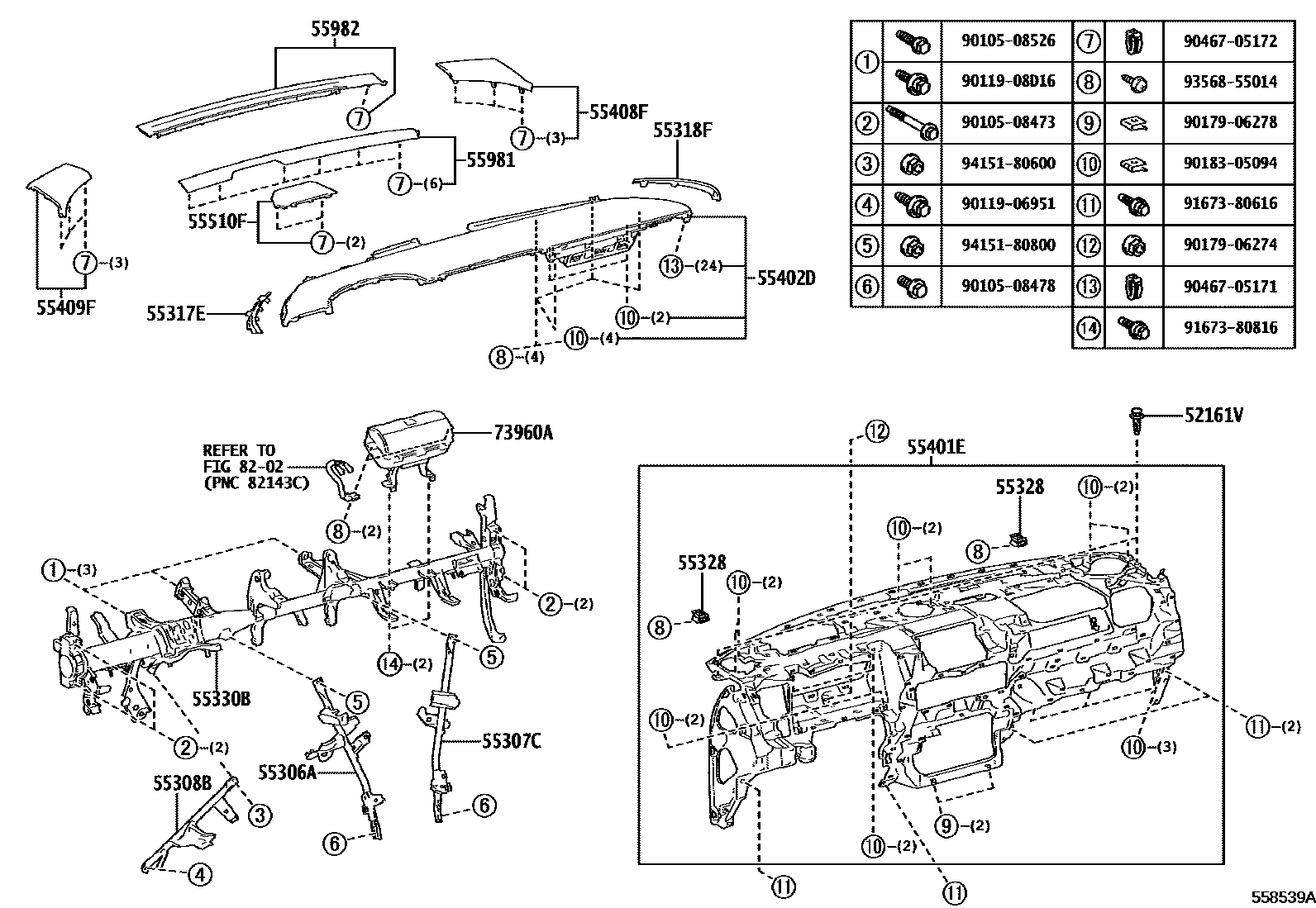

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1DRIVER SIDE 0003 1CENTER 0004 1PASSENGER SIDE

52161VPIECE, INSTRUMENT PANEL

main52161-16010×2iGRG75202310

sub52161-0K040

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-40070iGRG75202310

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-40050iGRG75202310

55308BBRACE SUB-ASSY, INSTRUMENT PANEL TO COWL, NO.3

main55308-0E150iGRG75202310

55317EPANEL, INSTRUMENT SIDE, NO.1

main55311-40090iGRG75202310

55318FPANEL, INSTRUMENT SIDE, NO.2

main55314-40030iGRG75202310

55328PIN, INSTRUMENT PANEL, NO.1

main55328-12430×2iGRG75202310

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-40070iGRG75202310

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-40110iGRG75202310

55402DPAD SUB-ASSY, INSTRUMENT PANEL SAFETY, NO.1

main5540A-40020-C1iGRG75202310

BLACK,TRIM0#,2#,4#

55408FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1

main55408-40030-C0iGRG75202310

BLACK,TRIM0#,2#,4#

55409FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2

main55409-40080-C0iGRG75202310

BLACK,TRIM0#,2#,4#

55510DOOR ASSY, GLOVE COMPARTMENT

main55303-40040-A1iGRG75202310

FROMAGE,TRIM0#

main55303-40040-C1iGRG75202310

BLACK,TRIM2#

main55303-40040-E1iGRG75202310

MD.BROWN,TRIM40

main55303-40040-E2iGRG75202310

SUNFLARE BROWN,TRIM41

55510FCOVER ASSY, SPEAKER OPENING, NO.1

main55510-40030-C0iGRG75202310

BLACK,TRIM0#,2#,4#

55981GARNISH, DEFROSTER NOZZLE, NO.1

main55981-40020-C0iGRG75202310

BLACK,TRIM0#,2#,4#

55982GARNISH, DEFROSTER NOZZLE, NO.2

main55982-40020-C1iGRG75202310

BLACK,TRIM0#,2#,4#

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-40060iGRG75202310

8202

9010508473

main90105-08473

9010508478

main90105-08478

9010508526

main90105-08526

9011906951

main90119-06951

9011908D16

main90119-08D16

9017906274

main90179-06274

9017906278

main90179-06278

9018305094

main90183-05094

9046705171

main90467-05171

9046705172

main90467-05172

9167380616

main91673-80616

9167380816

main91673-80816

9356855014

main93568-55014

9415180600

main94151-80600

9415180800

main94151-80800

33 parts on this diagram · 4 diagrams in section
