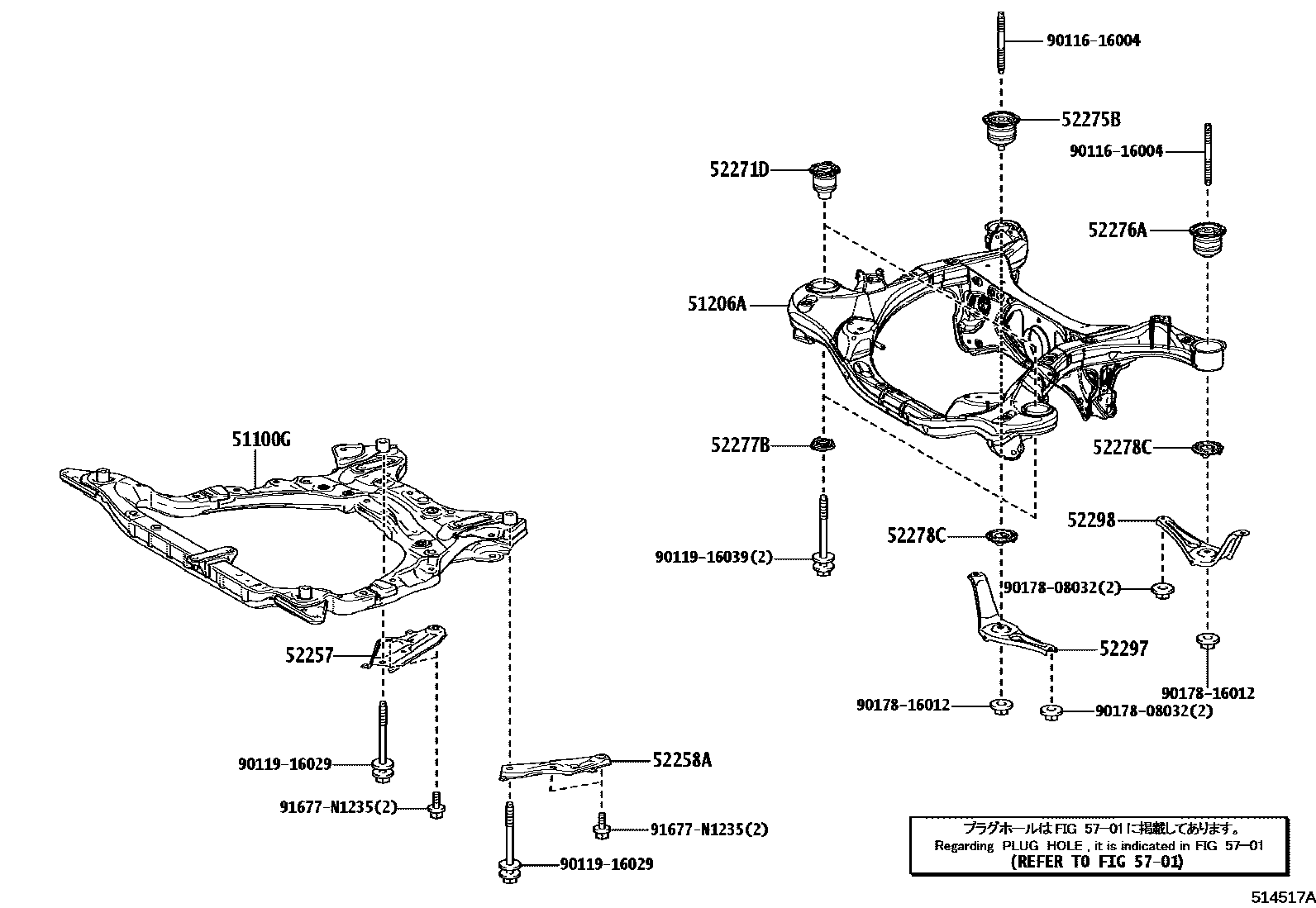

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1SUSPENSION CROSSMEMBER 0002 1UNDER COVER

51100GFRAME ASSY, FRONT

main51100-0E170iGRG75202310

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-0E190iGRG75202310

52257BRACE, FRONT SUSPENSION MEMBER, REAR RH

main52257-40010iGRG75202310

52258ABRACE, FRONT SUSPENSION MEMBER, REAR LH

main52258-42020iGRG75202310

52271DCUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT

main52271-40030×2iGRG75202310

52275BCUSHION, REAR SUSPENSION MEMBER BODY MOUNT, REAR RH

main52275-40030iGRG75202310

52276ACUSHION, REAR SUSPENSION MEMBER BODY MOUNT, REAR LH

main52276-40030iGRG75202310

52277BSTOPPER, REAR SUSPENSION MEMBER, REAR UPPER

main52277-40030×2iGRG75202310

52278CSTOPPER, REAR SUSPENSION MEMBER, REAR LOWER

main52278-40030×2iGRG75202310

52297BRACE, REAR SUSPENSION MEMBER, REAR LOWER RH

main52297-40010iGRG75202310

52298BRACE, REAR SUSPENSION MEMBER, REAR LOWER LH

main52298-40010iGRG75202310

5701

9011616004

main90116-16004

9011916029

main90119-16029

9011916039

main90119-16039

9017808032

main90178-08032

9017816012

main90178-16012

91677N1235

main91677-N1235

18 parts on this diagram · 2 diagrams in section
