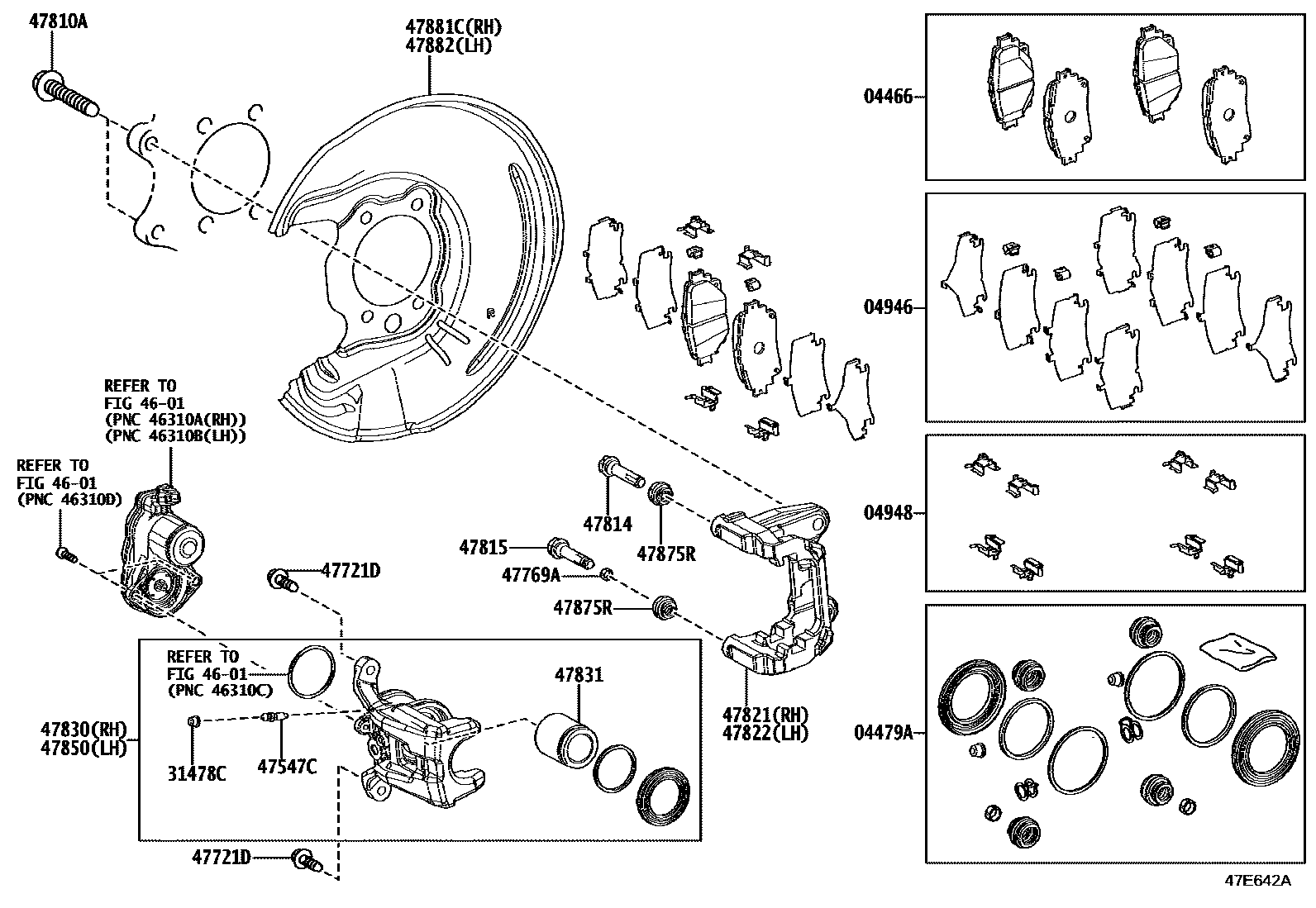

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-48170iGRG75¥6,600202310

MARK NBK D6363-FF

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-58031iGRG75¥2,470202310

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-48150iGRG75¥1,780202310

04948FITTING KIT, DISC BRAKE, REAR

main04948-48120iGRG75¥1,730202310

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010iGRG75¥160202310

4601

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-20010iGRG75¥200202310

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90015-AA603iGRG75¥270202310

*8-1.00PX23-12.5

sub90016-AA614¥270

47769ABUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47769-50010iGRG75¥50202310

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90105-14218iGRG75¥310202310

47814PIN, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47814-78010iGRG75¥510202310

47815PIN, REAR CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)

main47815-78010iGRG75¥510202310

47821MOUNTING, REAR DISC BRAKE CYLINDER, RH

main47821-48170iGRG75¥4,780202310

47822MOUNTING, REAR DISC BRAKE CYLINDER, LH

main47822-48170iGRG75¥4,780202310

47830CYLINDER ASSY, DISC BRAKE, REAR RH

main47830-48170iGRG75¥26,100202310

47831PISTON, REAR DISC BRAKE

main47831-30460iGRG75¥920202310

47850CYLINDER ASSY, DISC BRAKE, REAR LH

main47850-48170iGRG75¥26,100202310

47875RBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47875-33270iGRG75¥70202310

47881CCOVER, DISC BRAKE DUST, REAR RH

main47881-48020iGRG75¥1,530202310

47882COVER, DISC BRAKE DUST, REAR LH

main47882-48020iGRG75¥1,530202310

20 parts on this diagram · 1 diagram in section
