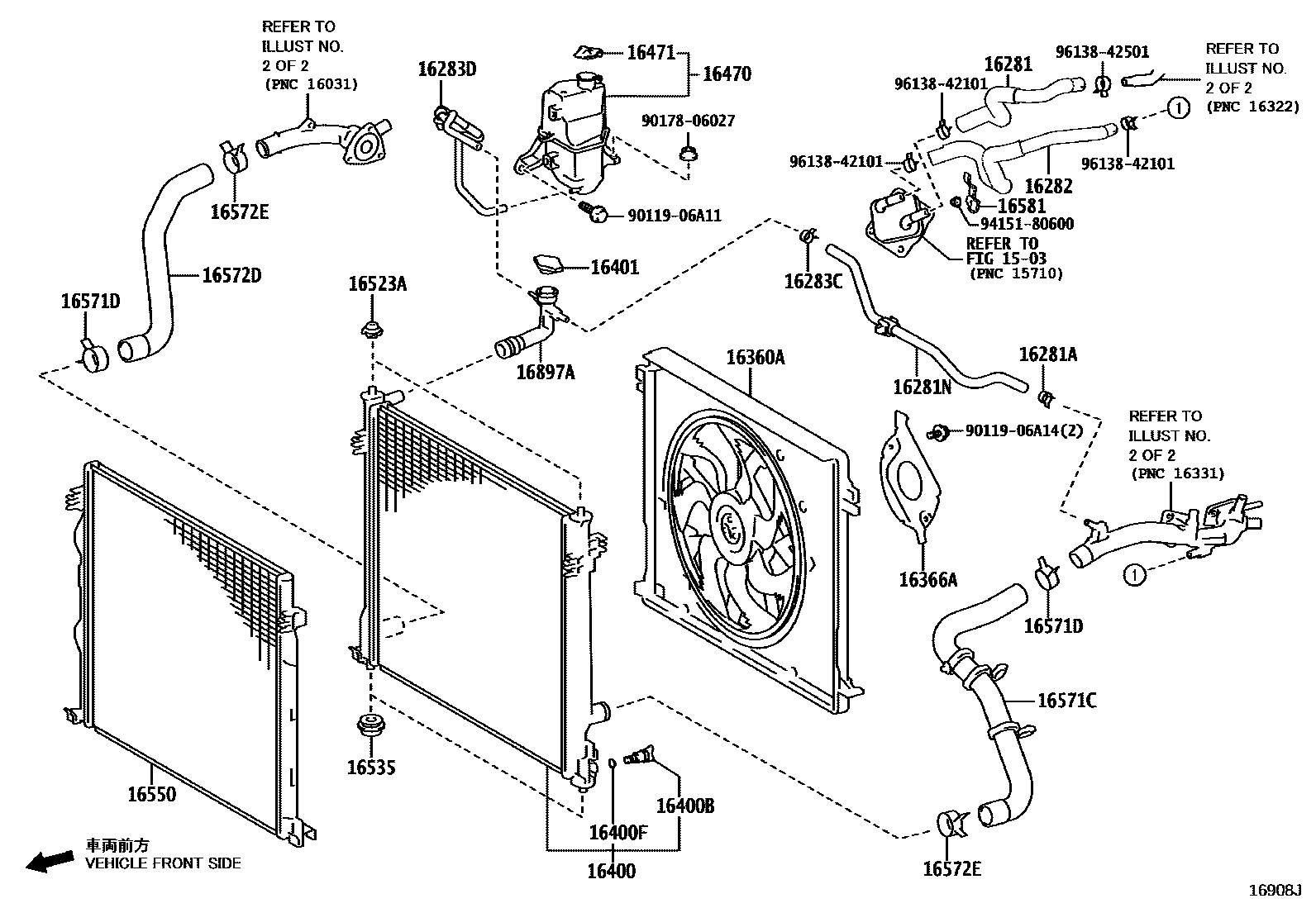

RADIATOR & WATER OUTLET

0001 1 0002 1

1503

16281HOSE, WATER BY-PASS, NO.4

main16281-31150i2GRFXS..GRG75202310

16281ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4)

main96138-41701i2GRFXS..GRG75202310

16281NHOSE, WATER BY-PASS, NO.4

main16281-31160i2GRFXS..GRG75202310

16282HOSE, WATER BY-PASS, NO.5

main16282-31120i2GRFXS..GRG75202310

16283HOSE, WATER BY-PASS, NO.6

main16283-31050i2GRFXS..GRG75202310

16283CCLAMP OR CLIP(FOR WATER BY-PASS HOSE)

main96138-41901i2GRFXS..GRG75202310

16283DHOSE, WATER BY-PASS, NO.6

main16283-31100i2GRFXS..GRG75202310

16360AFAN ASSY, W/MOTOR

main16360-31580i2GRFXS..GRG75202310

16366AINSULATOR, COOLING FAN MOTOR

main16366-31530i2GRFXS..GRG75202310

16400RADIATOR ASSY

main16400-V2010i2GRFXS..GRG75202310

16400BPLUG, RADIATOR DRAIN COCK

main16417-21280i2GRFXS..GRG75202310

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16492-21050i2GRFXS..GRG75202310

16401CAP SUB-ASSY, RADIATOR

main16401-36030i2GRFXS..GRG75202310

16470TANK ASSY, RADIATOR RESERVE

main16470-F0080i2GRFXS..GRG75202310

16471CAP SUB-ASSY, RESERVE TANK

main16405-F0030i2GRFXS..GRG75202310

16523ACUSHION, RADIATOR SUPPORT

main16523-38010×2i2GRFXS..GRG75202310

16535SUPPORT, RADIATOR, LOWER

main16535-28060×2i2GRFXS..GRG75202310

16550RADIATOR ASSY, INTERCOOLER COOLING

main16550-25030i2GRFXS..GRG75202310

16571CHOSE, RADIATOR, NO.1

main16571-31510i2GRFXS..GRG75202310

16571DCLIP, RADIATOR HOSE, NO.1

main90466-39002×2i2GRFXS..GRG75202310

16572DHOSE, RADIATOR, NO.2

main16572-31590i2GRFXS..GRG75202310

16572ECLIP, RADIATOR HOSE, NO.2

main90466-43002×2i2GRFXS..GRG75202310

16581CLAMP, HOSE(FOR WATER HOSE)

main16581-31100i2GRFXS..GRG75202310

16897ANECK, FILLER

main16897-31010i2GRFXS..GRG75202310

9011906A11

main90119-06A11

9011906A14

main90119-06A14

9017806027

main90178-06027

9415180600

main94151-80600

9613842101

main96138-42101

9613842501

main96138-42501

31 parts on this diagram · 2 diagrams in section
