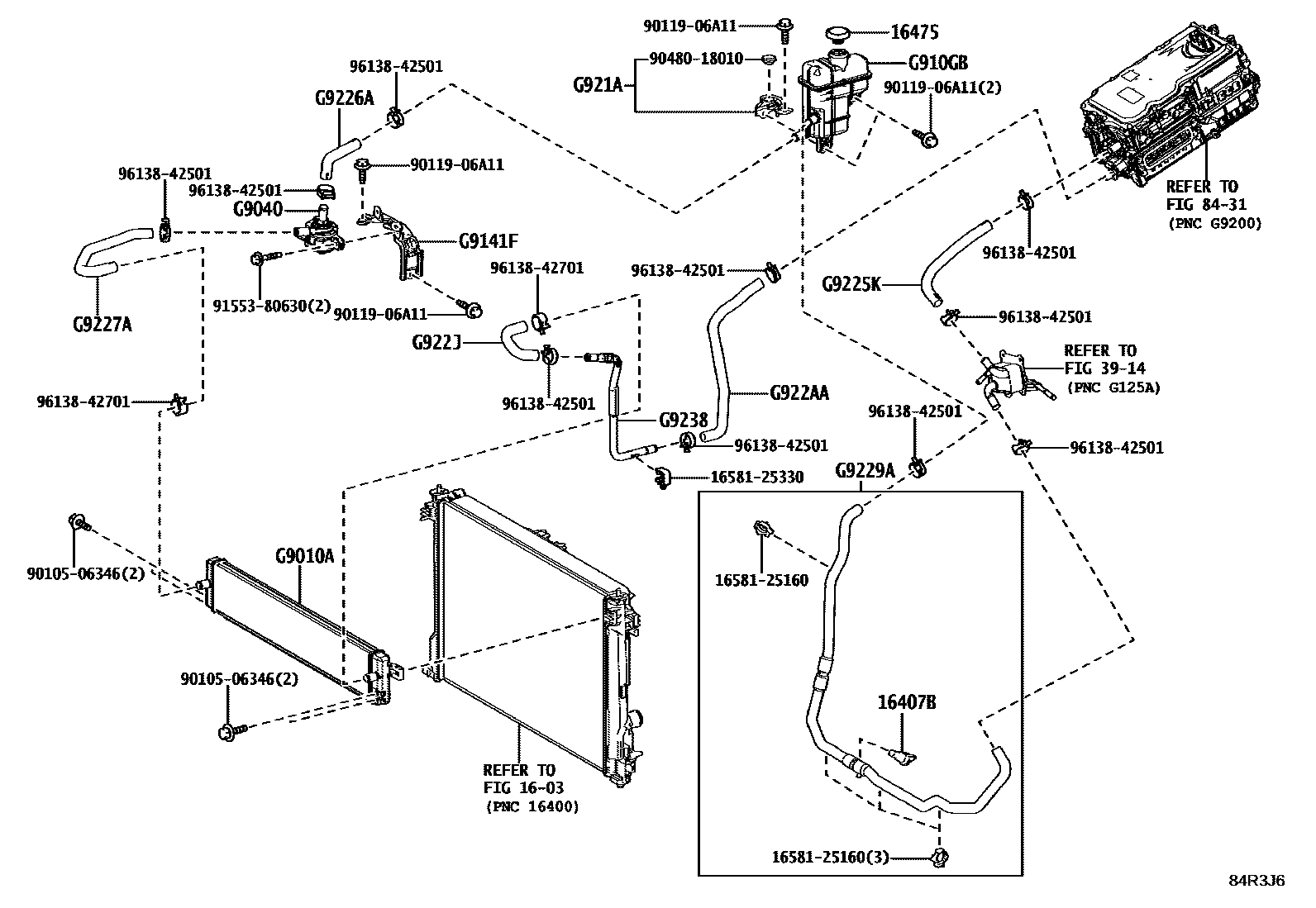

INVERTER COOLING

0001 1 0002 1

1603

16407BCOCK SUB-ASSY, RADIATOR DRAIN

main16407-64010iA25..AZSH39202405

16475CAP, RESERVE TANK

main16475-28140iA25..AZSH38202405

3914

8431

G9010ARADIATOR ASSY

mainG901042030iAZSH38202405

G9040INVERTER WATER PUMP ASSY(W/MOTOR)

mainG904048050iAZSH38202405

G910GBTANK SUB-ASSY, INVERTER RESERVE W/O CAP

mainG910G42010iAZSH38202405

G9141FBRACKET, HV WATER PUMP

mainG914178010iAZSH38202405

G921ABRACKET, INVERTER RESERVE TANK, NO.1

mainG91H242010iAZSH39202405

G9225KHOSE, INVERTER COOLING, NO.1

mainG922542020iAZSH38202405

G9226AHOSE, INVERTER COOLING, NO.2

mainG922642020iAZSH38202405

G9227AHOSE, INVERTER COOLING, NO.3

mainG922730070iAZSH38202405

G9229AHOSE, INVERTER COOLING, NO.5

mainG922930080iAZSH39202409

mainG922930090iAZSH38202405

G922AAHOSE, INVERTER COOLING INLET, NO.1

mainG922A30030iAZSH38202405

G922JHOSE, HYBRID RADIATOR OUTLET

mainG922J30040iAZSH38202405

G9238PIPE, INVERTER COOLING

mainG923830210iAZSH38202405

1658125160CLAMP, HOSE(FOR WATER HOSE)

main16581-25160

1658125330CLAMP, HOSE(FOR WATER HOSE)

main16581-25330

9010506346

main90105-06346

9011906A11

main90119-06A11

9048018010

main90480-18010

9155380630

main91553-80630

9613842501

main96138-42501

9613842701

main96138-42701

25 parts on this diagram · 2 diagrams in section
