SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE ROOM RELAY BLOCK 0003 1ENGINE ROOM RELAY BLOCK 0004 1COWL 0005 1COWL 0006 1INSTRUMENT PANEL 0007 1CONSOLE BOX 0008 1STEERING 0009 1SEAT 0010 1DOOR & ROOF 0011 1FLOOR & LUGGAGE 0012 1FLOOR RELAY BLOCK 0013 1FLOOR & LUGGAGE

82715WBRACKET, WIRING HARNESS CLAMP

main82715-33V10iAZSH38202405

82715XBRACKET, WIRING HARNESS CLAMP, NO.2

main82715-48V40iAZSH39202405

89422ASENSOR, WATER TEMPERATURE

main89422-33040iAZSH38202405

89422NSENSOR, WATER TEMPERATURE, NO.2

main89422-33040iAZSH38202405

89425SENSOR, EXHAUST GAS TEMPERATURE

main89425-48030iAZSH39202405

89425ASENSOR, EXHAUST GAS TEMPERATURE, NO.2

main89425-48040iAZSH38202405

89467BSENSOR, AIR FUEL RATIO

main89467-30130iAZSH38202405

89467CSENSOR, AIR FUEL RATIO, NO.2

main89467-48360iAZSH39202405

8946ABRACKET, EXHAUST SENSOR CLAMP

main8946A-30021iAZSH38202405

8946AABRACKET, EXHAUST SENSOR CLAMP, NO.2

main8946A-48040iAZSH38202405

89481BSENSOR, DIFFERENTIAL PRESSURE

main89481-K0010iAZSH38202405

89615SENSOR, KNOCK CONTROL

main89615-20090iAZSH3#202405

8946A30010BRACKET, EXHAUST SENSOR CLAMP

main8946A-30010

9011906A14

main90119-06A14

9046814044

main90468-14044

9155180612

main91551-80612

9155180835

main91551-80835

9167180616

main91671-80616

9415180600

main94151-80600

9415180641

main94151-80641

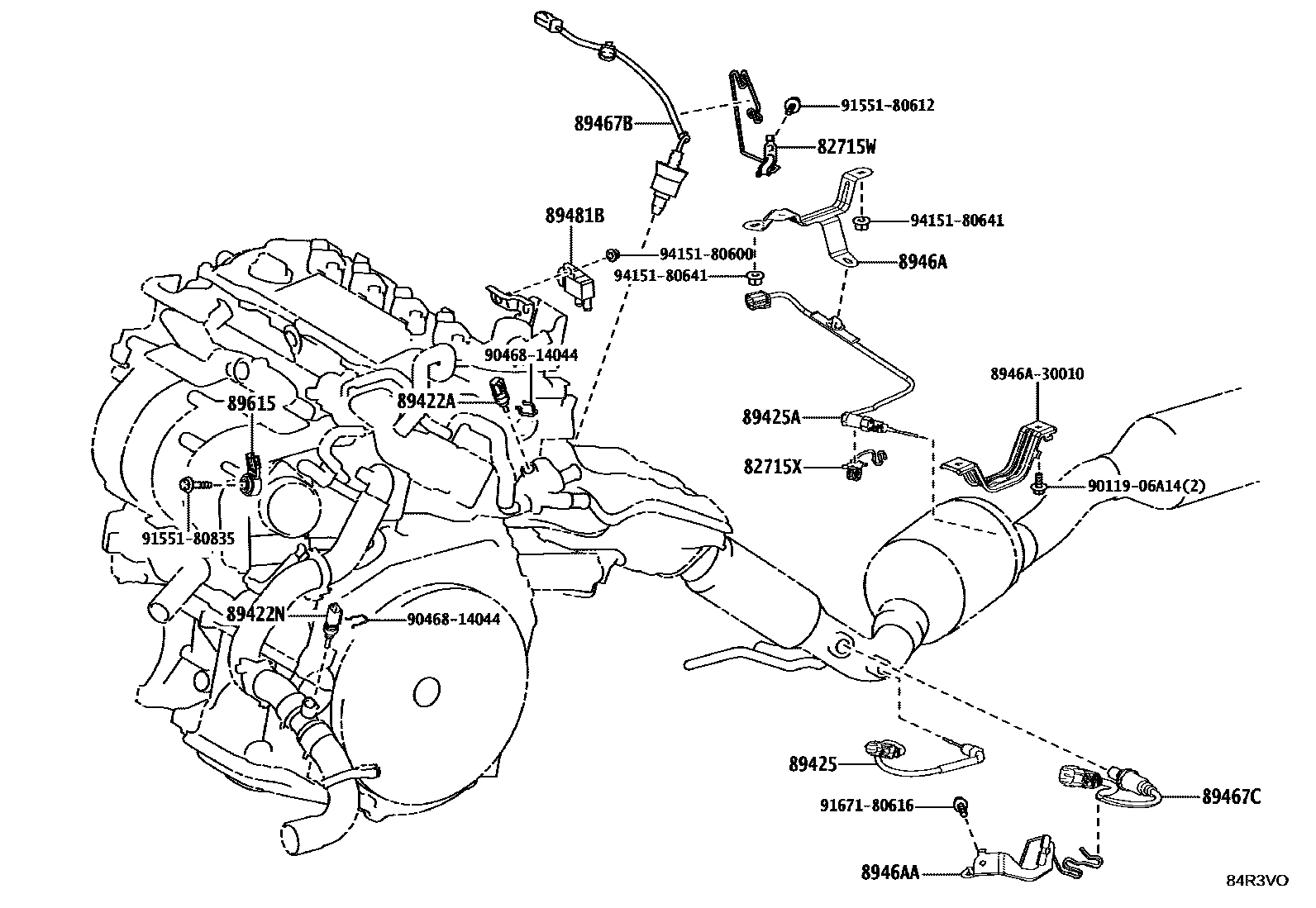

20 parts on this diagram · 13 diagrams in section
