WIRING & CLAMP

0001 1ENGINE ROOM 1/2 0002 1ENGINE ROOM 2/2 0003 1ENGINE ROOM 1/2 0004 1ENGINE ROOM 2/2 0005 1ENGINE 0006 1ENGINE 0007 1INSTRUMENT PANEL 0008 1DOOR 0009 1FLOOR & ROOF 0010 1FLOOR & ROOF 0011 1HIGH VOLTAGE CABLE 0012 1HIGH VOLTAGE CABLE 0013 1SEAT 0014 1CLAMP & BRACKET 1/2 0015 1CLAMP & BRACKET 2/2

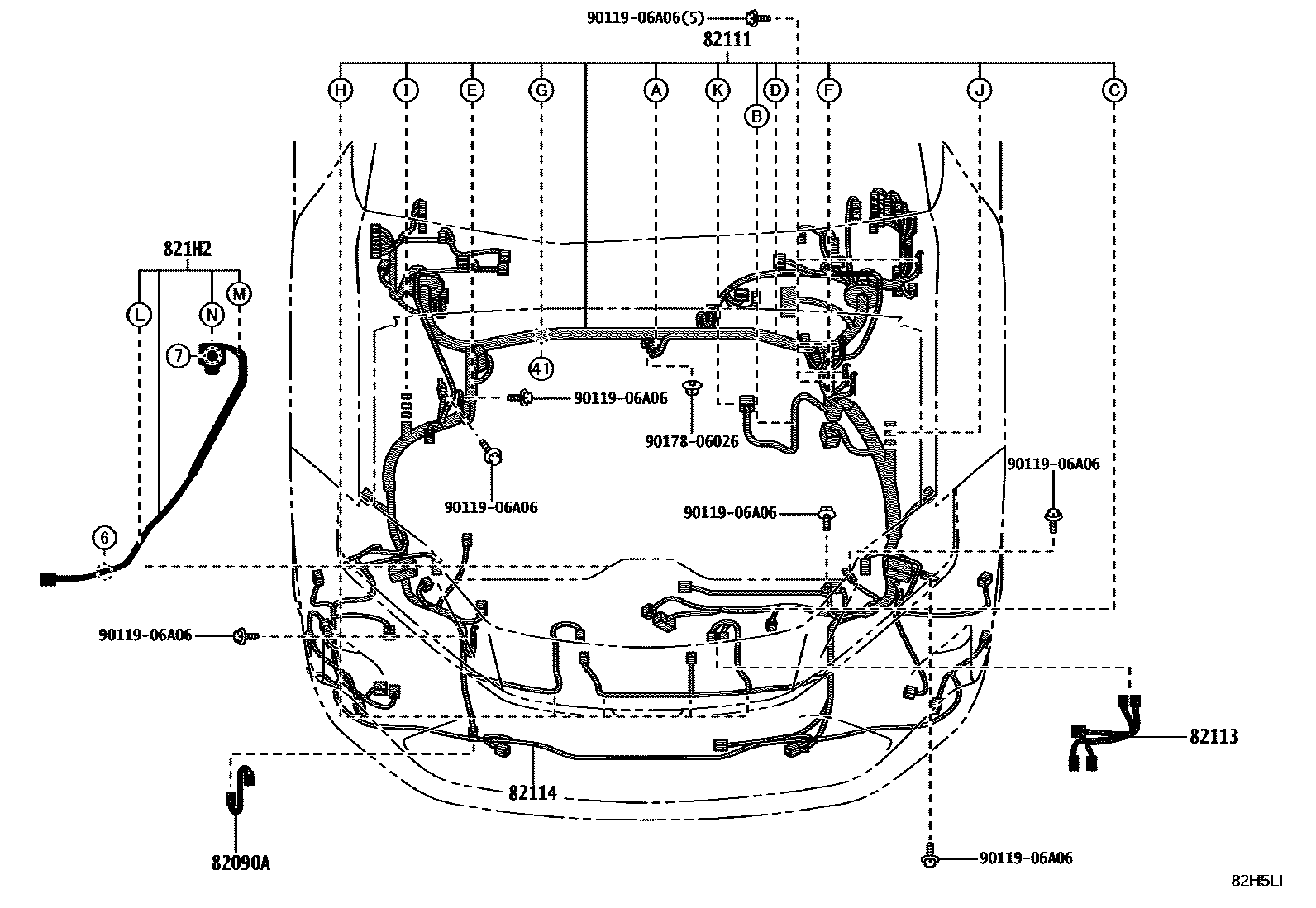

82090AWIRE ASSY, EXTENSION

main82090-33030iAZSH38202405

82111WIRE, ENGINE ROOM MAIN

main82111-3FV50iAZSH38..M202405

main82111-3FV70iAZSH38..G202405

main82111-3FW20iAZSH39202409

82113WIRE, ENGINE ROOM, NO.3

main82113-30B30iAZSH38..M202405

main82113-30B40iAZSH38..G202405

82114WIRE, ENGINE ROOM, NO.4

main82114-30630iAZSH38..M202405

main82114-30640iAZSH38..G202405

821H2WIRE, HV AIR CONDITIONER

main821H2-30060iAZSH38202405

main821H2-42030iAZSH39202409

9011906A06

main90119-06A06

9017806026

main90178-06026

7 parts on this diagram · 15 diagrams in section
