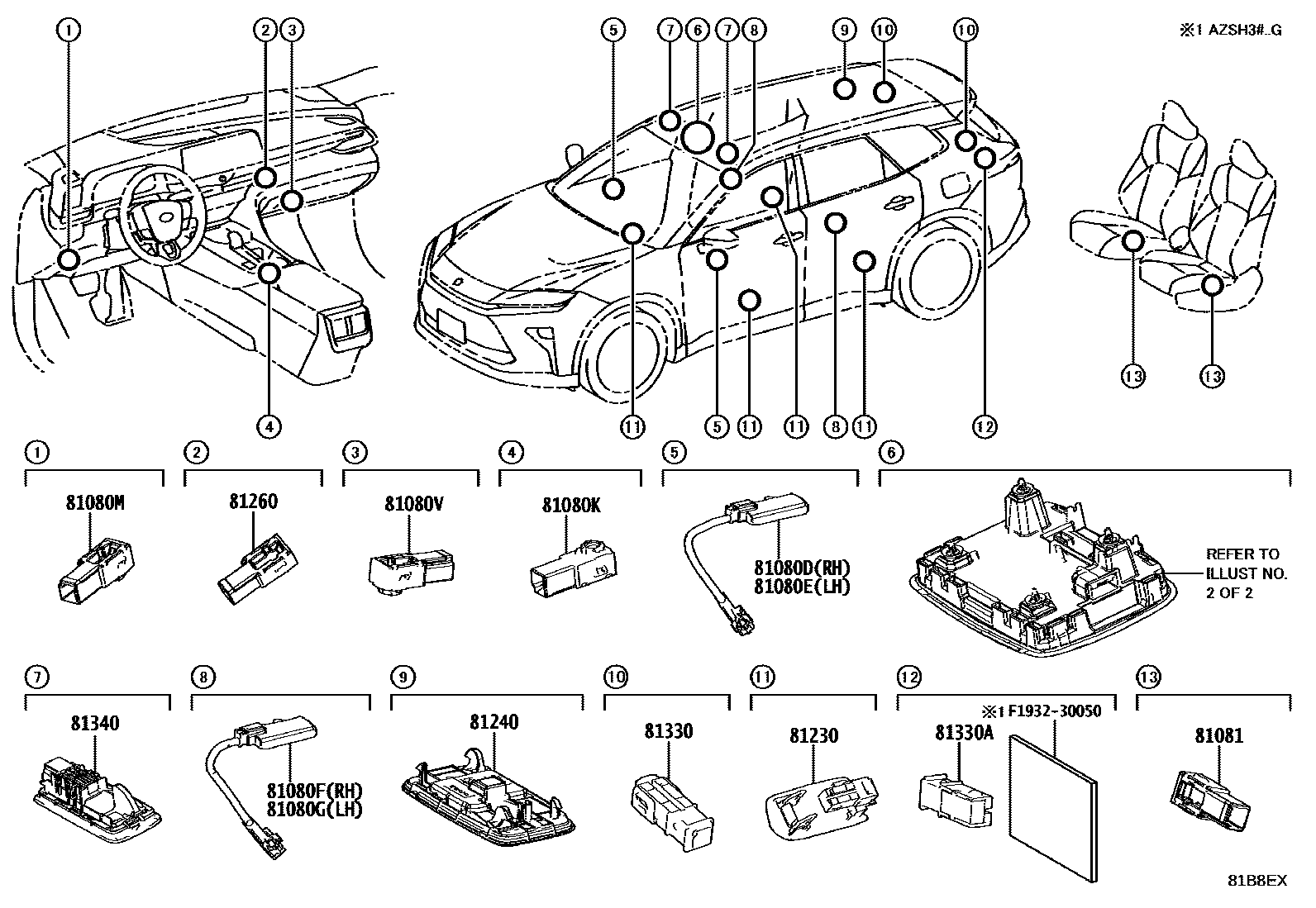

INTERIOR LAMP
81080DLAMP ASSY, FRONT DOOR INSIDE HANDLE ILLUMINATION, RH
81080ELAMP ASSY, FRONT DOOR INSIDE HANDLE ILLUMINATION, LH
81080FLAMP ASSY, REAR DOOR INSIDE HANDLE ILLUMINATION, RH
81080GLAMP ASSY, REAR DOOR INSIDE HANDLE ILLUMINATION, LH
81080KLAMP ASSY, CONSOLE BOX ILLUMINATION
81080MLAMP ASSY, INTERIOR ILLUMINATION, NO.1
81080VLAMP ASSY, INTERIOR ILLUMINATION, NO.2
81081LAMP SUB-ASSY, INTERIOR ILLUMINATION
81230LAMP ASSY, COURTESY
81240LAMP ASSY, ROOM, NO.1
BLACK,TRIM2#,4#
81260LAMP ASSY, GLOVE BOX
81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
81330ALAMP ASSY, LUGGAGE COMPARTMENT, NO.2
81340LAMP ASSY, VANITY
F193230050
mainF1932-30050
15 parts on this diagram · 2 diagrams in section
